> Roth / TORO > Hand operated > Lawnmower > 4-stroke SP > 416/20828 > 210000001 > Starter Assy.

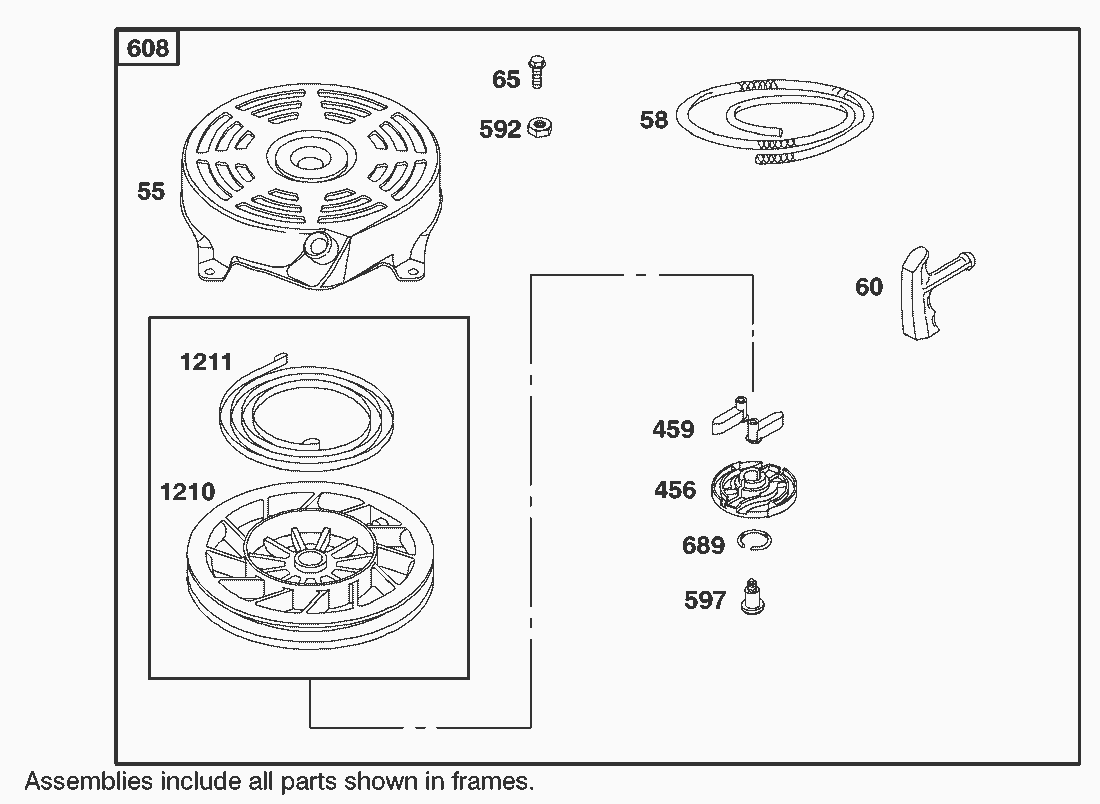

Spare Parts Lists for Toro Roth / TORO Starter Assy.




spare parts list


pos.decriptionspare part number
55Housing-Rewind Starter99-1048
65Screw-Hex.99-1002
58Rope-Starter (Cut To Suit)94-1668
592Nut (Rewind Starter)100-9149
60Grip-Starter Rope77-8510
1210Pulley-Rewind Starter94-1657
1211Pulley-Rewind Starter94-1657
456Retainer-Rewind Starter94-1659
459Pawl-Starter94-1654
597Screw-Rewind Starter94-1660
689Spring-Torsion94-1655
608Starter-Rewind98-9215
