> Roth / TORO > Hand operated > Snowthrower > Two stage > 1132 PowerShift > 630/38580 > 8000001 >

Spare Parts Lists for Toro Roth / TORO

pos.	decription	spare part number
		62-0570
		62-0580

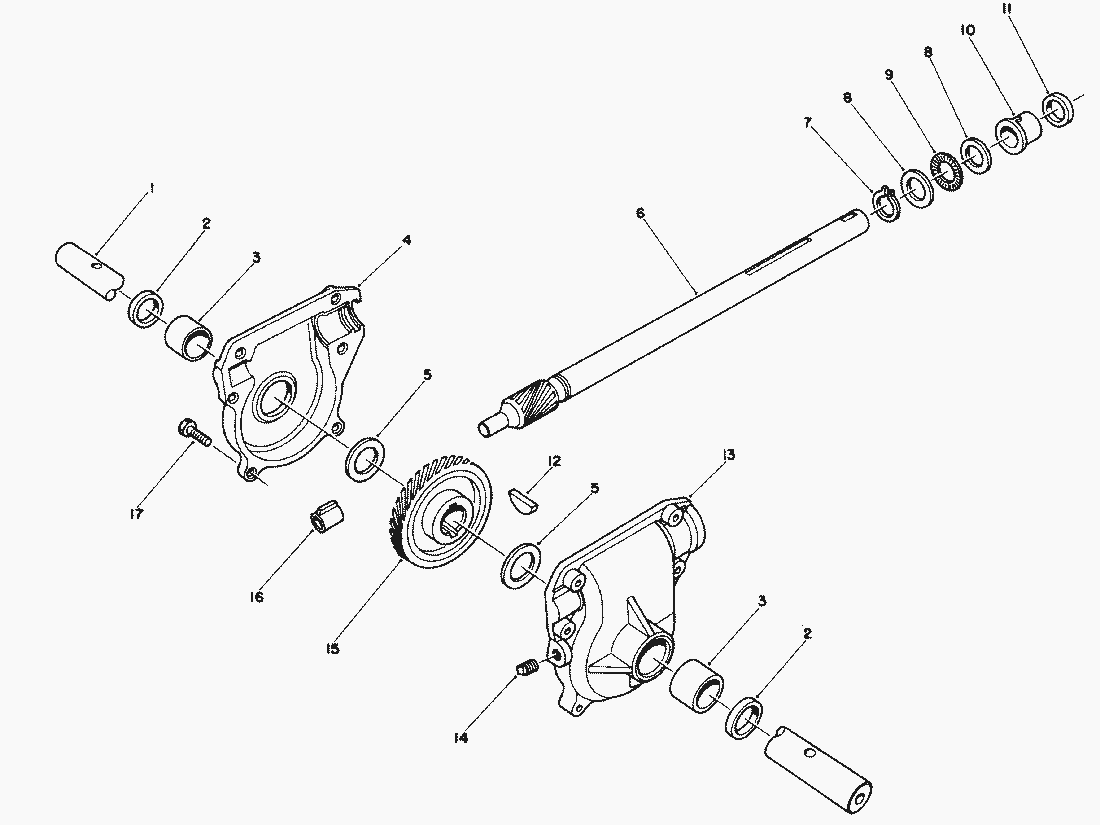

spare parts list

pos.	decription	spare part number
1	Shaft-Auger (32)	62-1532
2	Oil Seal	7-0045
3	Bushing	256-237
5	Thrust Bearing	252-71
6	Shaft-Impeller	62-1420
7	Ring-Snap	32151-33
8	Thrust Washer	252-78
9	Thrust Bearing	252-76
10	Bushing-Input	37-6560
11	Seal-lnput	253-149
12	Key-Woodruff	3257-10
14	Pipe Plug	281-1
15	Gear-Helical	62-0120
16	Bushing-Worm	62-1150
17	Screw-Hex Washer Hd.	32144-22
