> Roth / TORO > Hand operated > Lawnmower > 4-stroke SP > 494/20791 > 200000001 > Air Cleaner Assy. Engine GTS 200 (only on: 20791)

Spare Parts Lists for Toro Roth / TORO Air Cleaner Assy. Engine GTS 200 (only on: 20791)

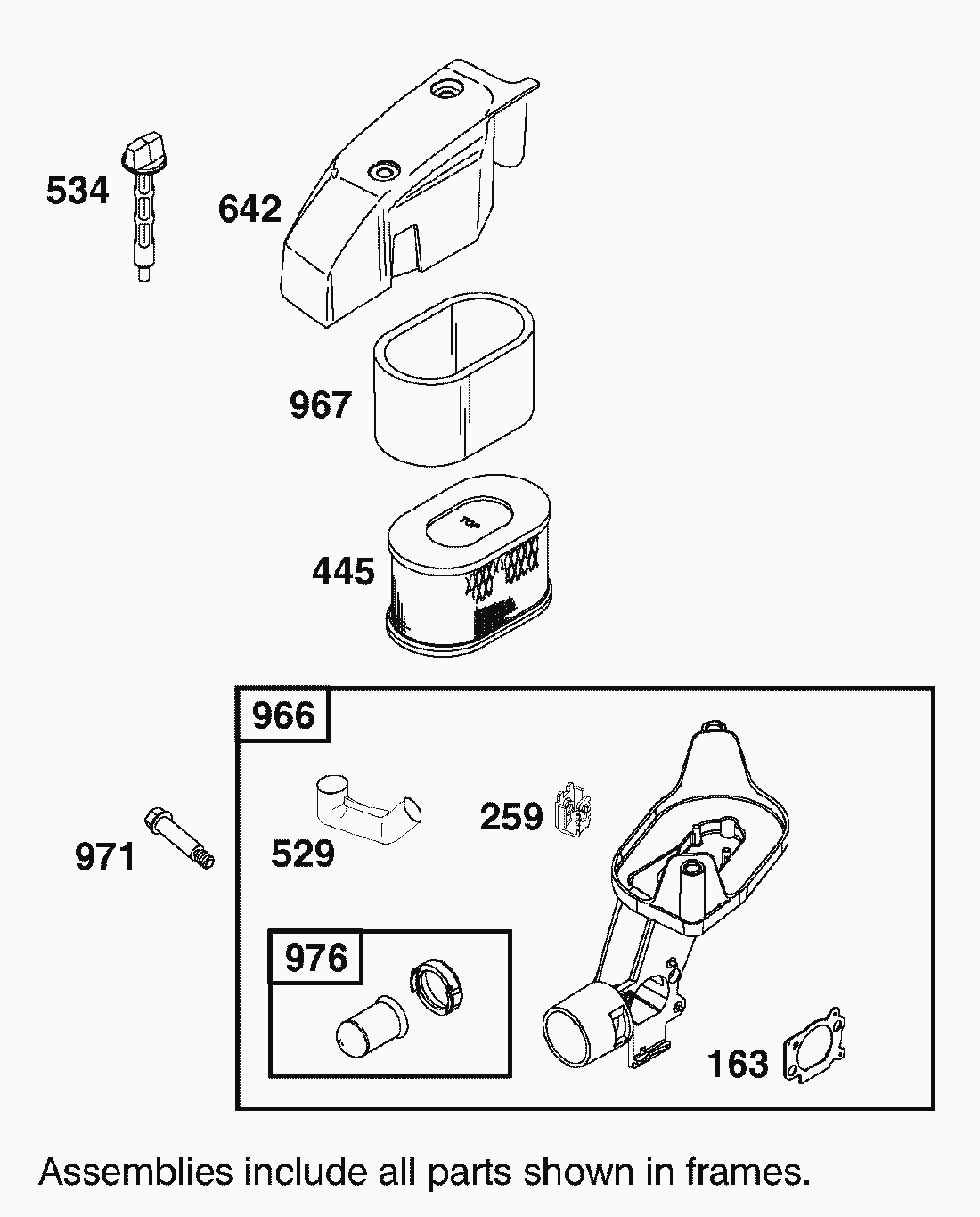

spare parts list


pos.decriptionspare part number
163Gasket-Air Cleaner99-0976
259Grommet99-0984
445Filter-Air98-9212
529Grommet100-5032
534Knob98-9208
642Cover-Air Cleaner98-9207
966Base-Air Cleaner/Primer99-0979
967Filter-Air99-0989
971Screw-Hex.99-0990
976Primer-Carburetor99-0991
