back to
>
Roth / TORO
>
Ride-On Mowers
>
Mower decks
>
132cm Seit
>
573/78452
>
220000001
>

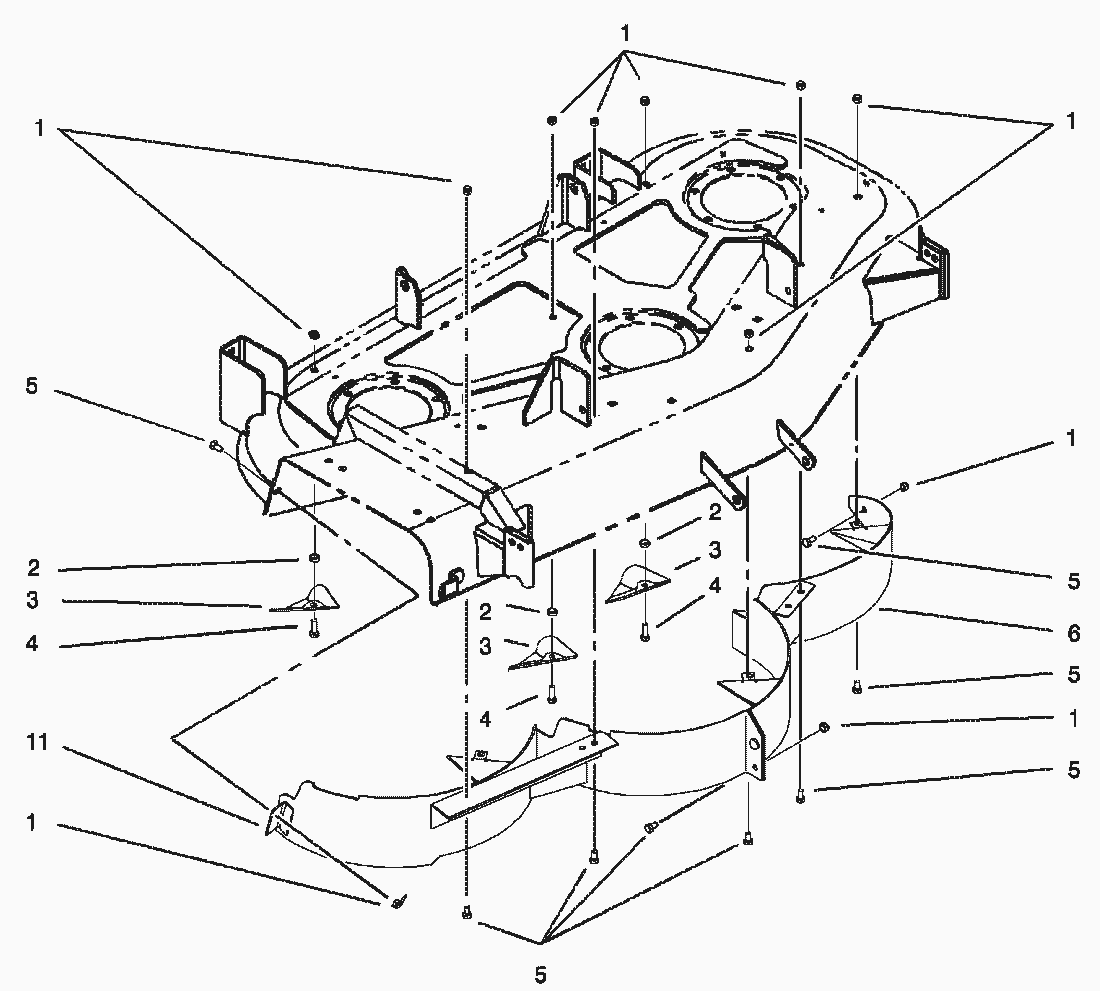

Baffle Assy.
Spare Parts Lists for Toro Roth / TORO Baffle Assy.
pos.
decription
spare part number
1
MUTTER
3296-29
2
Spacer (Model No. 79105 Only)
59-4310
3
Plate-Kicker (Model No. 79105 Only)
84-5760
4
Capscrew
322-4
5
Hex Hd. Capscrew
322-2
6
Baffle-Left (Only On: 78375)
94-2505-03
11
Baffle-Right (Only On: 78375)
94-2504-03
