> Roth / TORO > Ride-On Mowers > Mower decks > 112cm Seit > 571/78444 > 8900001 > Baffle Assy.

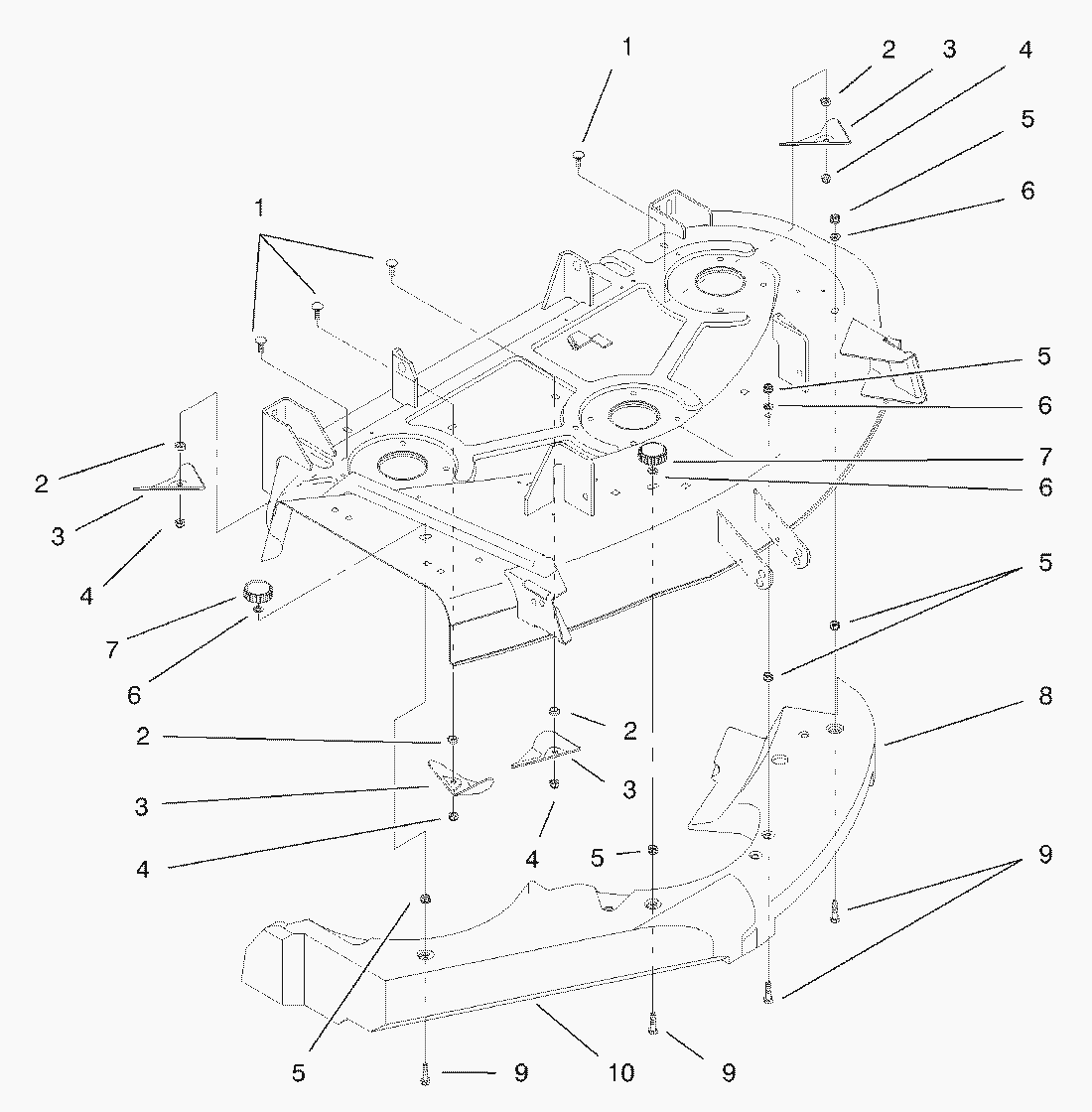

Spare Parts Lists for Toro Roth / TORO Baffle Assy.




spare parts list


pos.decriptionspare part number
1Screw-Carriage3230-23
2Spacer (Model No. 79105 Only)59-4310
3Plate-Kicker (Model No. 79105 Only)84-5760
4MUTTER3296-29
5Locknut32149-1
6Washer-Belleville3290-456
7Knob (Only On: 78358)94-5583
8Baffle-L.H. (Model No. 79105 Only)93-7652
9Capscrew322-6
10Baffle-R.H. (Model No. 79105 Only)93-7651
