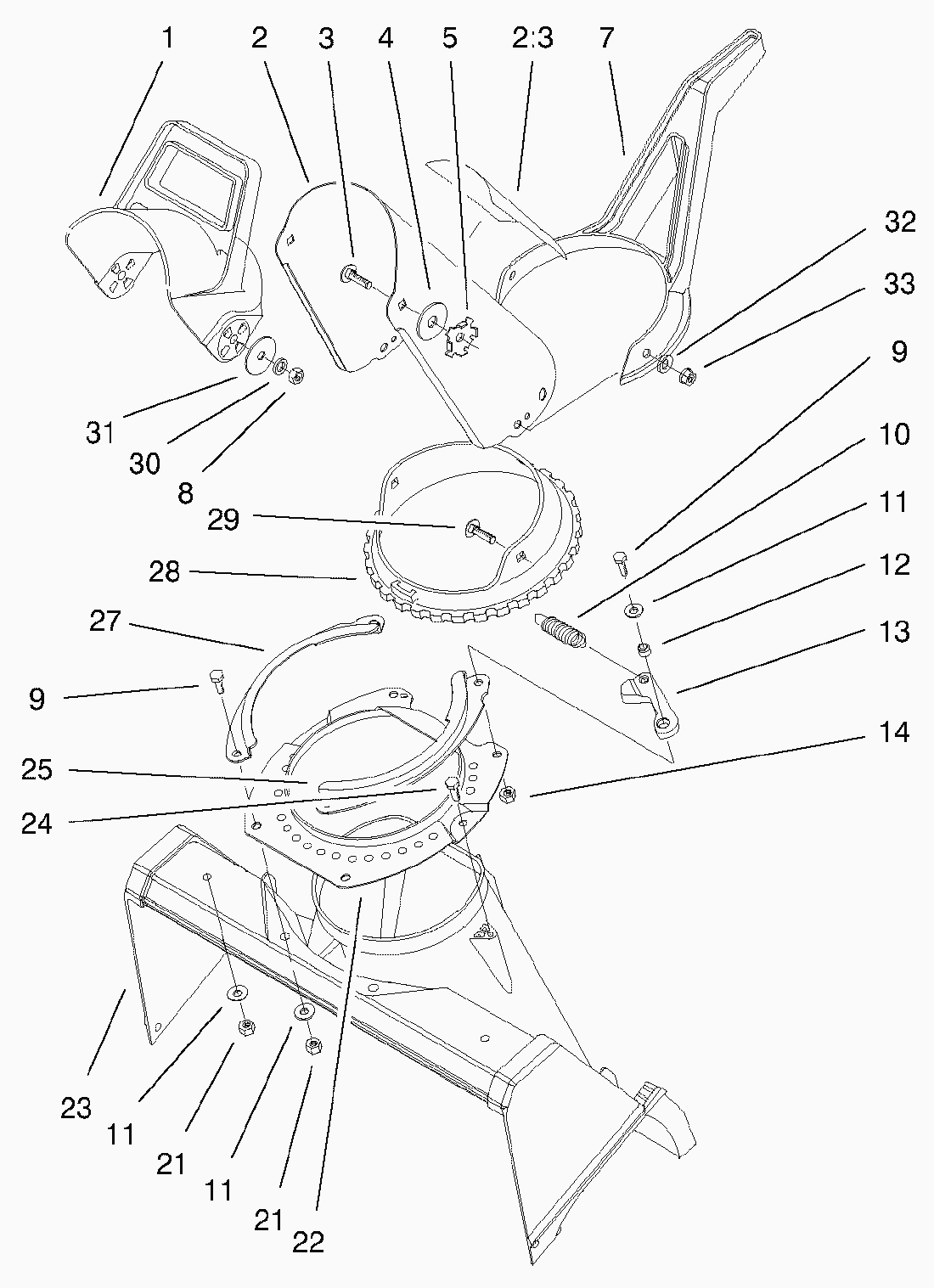

Spare Parts Lists for Toro Roth / TORO Chute Assy.

pos.	decription	spare part number
1	Deflector	56-2680
2	Chute-Dischargew/Decal (only on:38413, 38419)	104-4115
2	Discharge Chute Assembly (Incl. Ref.	94-2791
2		94-2790
21	Decal-Danger (only on: 38413, 38419)	104-4135
23	Decal-Danger	94-2901
23	Decal-Danger	94-2900
3	Bolt-Carriage	3230-22
4	Washer Rubber	20-4320
5	Plate-Friction	55-8950
7	Handle-Chute Control	94-9914
8	MUTTER	3296-29
9	Capscrew	321-4
10	Spring-Extension	80-4600
11	Washer	3256-22
12	Spacer	55-9370
13	Arm-Detent	80-4610
14	STOPMUTTER	3296-56
21	MUTTER	3296-42
22	Ring-Chute Support	55-8921-03
23	Housing	55-8700
24	Screw-Special	46-8092
25	Retainer-Chute Ring	71-4980-03
27	Retainer-Chute Ring	71-4990-03
28	Ring-Chute	104-2763
29	Screw-Truss Hd,Phillips	100-5487
30	Washer-Belleville	3290-456
31	Washer	3256-68
32	Washer-Flat	3256-70
33	MUTTER	3296-29
