> Roth / TORO > Hand operated > Snowthrower > Single stage > CCR Powerlite > 601/38171 > 49000001 > Chute Assy.

Spare Parts Lists for Toro Roth / TORO Chute Assy.

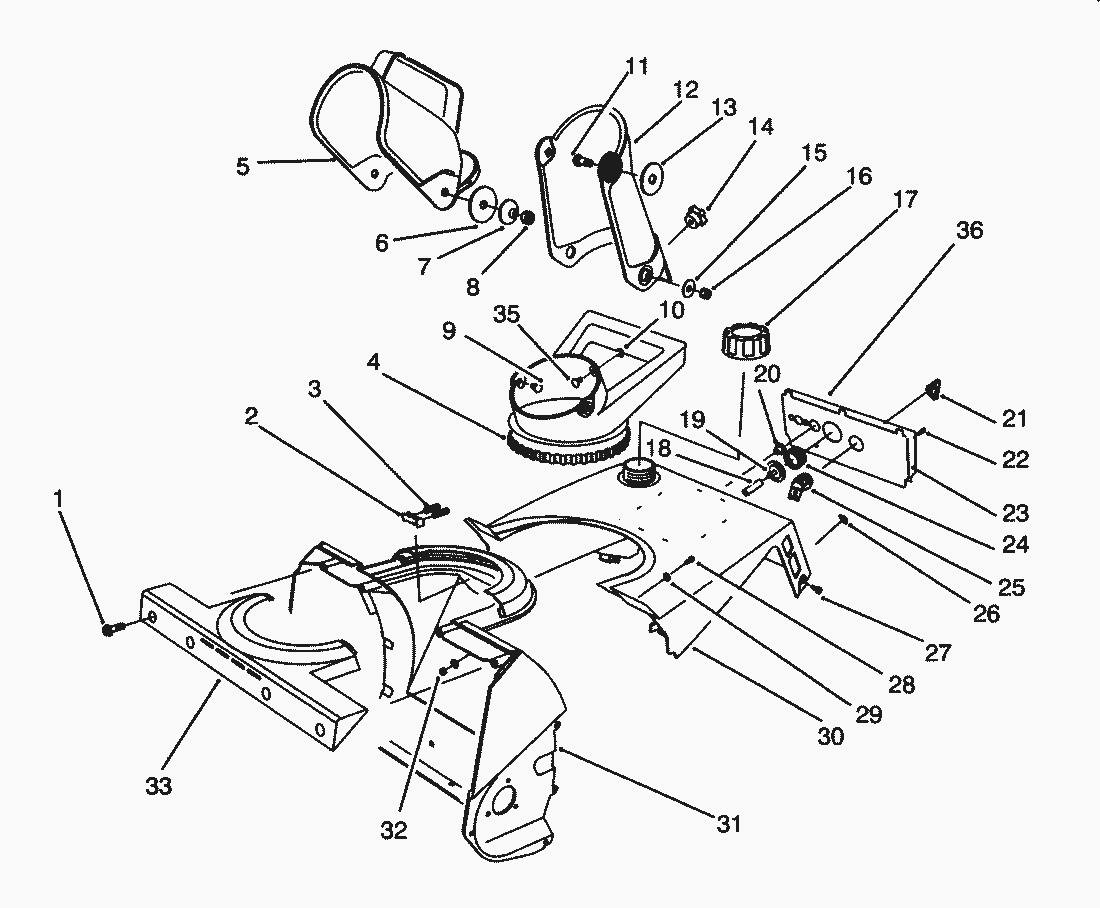

spare parts list


pos.decriptionspare part number
1Screw-Hex Washer Hd.46-8094
2Detent-Chute75-9160
3Spring-Compression75-9170
4Handle-Chute75-8670
5Deflector-Chute75-8770
6Washer3256-68
7Washer Belleville3290-340
8MUTTER3296-29
9SCHRAUBE321-3
10Retainer32115-15
11Carriage Bolt3230-2
12Chute-Discharge75-8761
13Washer-Rubber80-0640
14Knob233-67
15Washer-Flat3256-81
16STOPMUTTER3296-56
17Gas Cap Assembly55-3573
18Hose-Primer44-3173
19Body-Primer44-2750
20Guide-Starter Rope23-7470
21Key-Ignition63-8360
22Screw-Slotted Flange Hd.32144-53
23Panel-Control (Model No. 38170 Only)75-9031
Panel-Control (Model No. 38175 Only)75-9030
24Bulb-Primer66-7460
25Switch40-5940
26Nut49-1490
27Screw-Thread Forming32144-89
