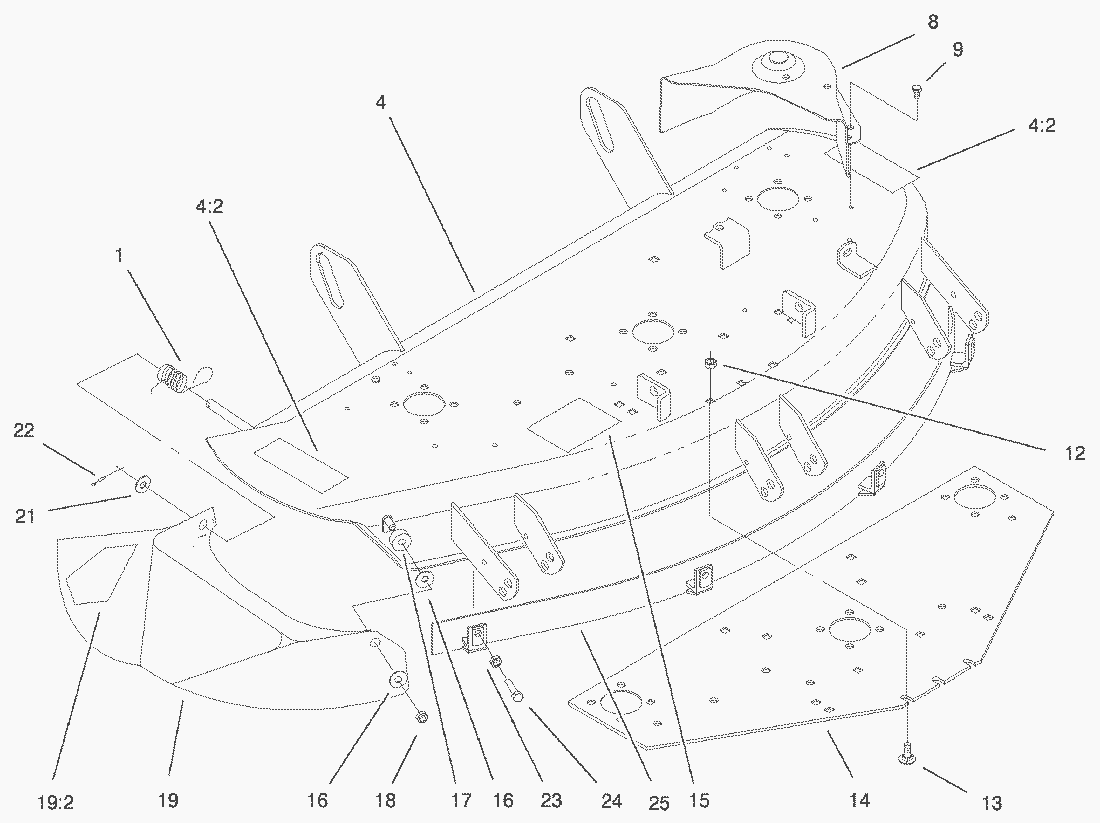

Spare Parts Lists for Toro Roth / TORO Chute, Belt Cover and Shield Assy.

pos.	decription	spare part number
1	Spring-Deflector	93-1631
4	Deck Assembly	98-1799
42	Decal-Danger	93-7317
8	Cover-Belt	78-6891
9	Screw-Hex Thrd. Form.	46-8560
12	Locknut	3296-39
13	Bolt-Carriage	3231-1
14	Plate-Reinforcement	78-8530-03
15	Decal-Belt	93-7325
16	Washer-Nylon	93-1633
17	Bushing-Pivot	116080
18	Nut-Jam	9152366
19	Chute ASM (Int l)	99-3707
192	Decal-Danger	93-7316
21	Washer	3256-26
22	Pin-Cotter	3272-10
23	Nut-Hex Jam	3218-3
24	Screw-HH	9114454
25	Shield-Front	93-0544-01
