> Roth / TORO > Ride-On Mowers > Mower decks > 132cm Seit > 555/78252 > 9900001 > Decals and Baffles

Spare Parts Lists for Toro Roth / TORO Decals and Baffles

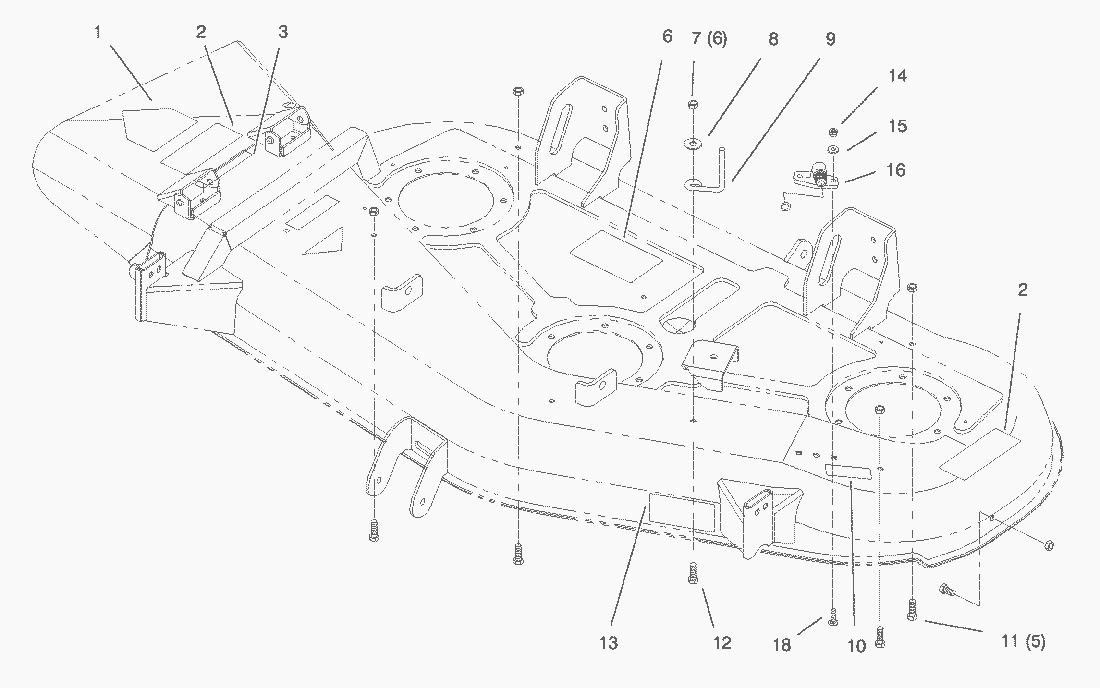

spare parts list


pos.decriptionspare part number
1Decal-Danger93-7316
2Decal-Danger93-7317
3Decal-Deflector Danger (Model No. 71200 Only)93-7009
6Decal-Belt Routing94-4937
7MUTTER3296-29
8Washer3256-23
9Guide-Belt94-2535
10Decal-Drive Belt94-2543
11Hex Hd. Capscrew322-2
12Hex Hd. Capscrew322-5
13Decal-WheelAdjustment93-7282
14Locknut3296-16
15Washer-Plain3256-1
16Fitting-Washout (Model No. 22045 Only)95-2747
17O-Ring-Seal (Model No. 22045 Only)46-6290
18Carriage Bolt3229-1
