> Roth / TORO > Ride-On Mowers > Mower decks > 152cm Seit > 574/78469 > 9900001 > Deck Suspension Assy.

Spare Parts Lists for Toro Roth / TORO Deck Suspension Assy.

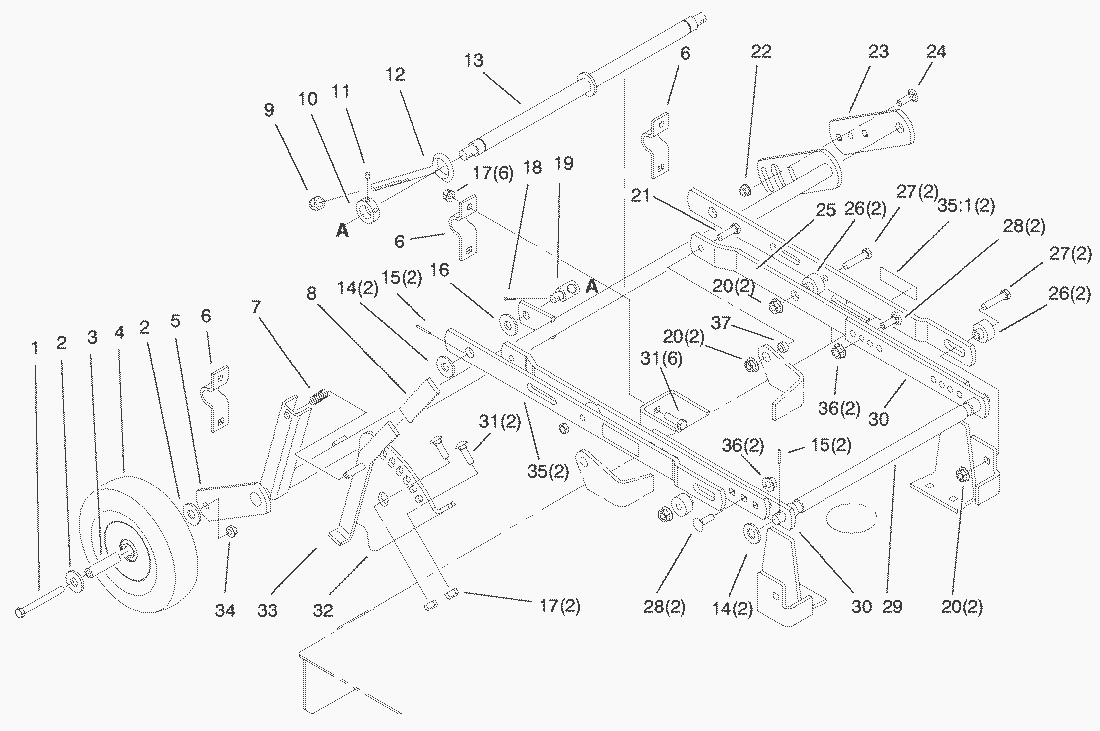

spare parts list


pos.decriptionspare part number
1Screw-HH323-15
2Flat Washer3256-24
3Tube109901
4Wheel-Gage (With Bearings)114275
5Wheel Support ASM94-7584-01
6Clamp94-7426-03
7Spring101853
8Grip102597
9Nut-Lock3296-23
10Collar94-7953
11Screw-Set3245-2
12Rod-Level Adjustment94-7954
13Leveler Shaft ASM94-7943-01
14Washer-Flat3256-69
15Pin933216
16Washer3256-26
17Locknut3296-39
18Pin-Cotter3272-12
19Trunnion94-7802
20Nut-Flange Lock102809
21Screw-Cap Hex Hd.323-7
22Nut-Flange32128-43
23Support-Gage Wheel94-7580-01
24Bolt-Carriage3231-2
25Draftbar94-7801-01
26Spacer115706
27Capscrew323-9
28Screw-CARR3231-38
29Shaft-Draftbar94-2130-01
30Bar-Draftbar Adj.94-7804-01
31Carriage Bolt3231-25
32Quadrant94-2321-01
33HOC Lever ASM94-2046-01
34Hex Locknut32146-2
35Leveler ASM LH (Only On: 78357, 78358)98-5041
35Leveler ASM LH (Only On: 78444)98-5042
35Leveler ASM RH (Only On: 78357, 78358)98-5043
35Leveler ASM RH (Only On: 78444)98-5044
351Decal-Warning (Only On: 78357, 78358)98-3478
351Decal-Warning (Only On: 78444)93-9367
36Locknut32152-2
37Spacer114127
