> Roth / TORO > Ride-On Mowers > Mower decks > 122cm Seit > 534/78260 > 4900001 > Deck & Idler Assy.

Spare Parts Lists for Toro Roth / TORO Deck & Idler Assy.




pos.decriptionspare part number
92-6320-01

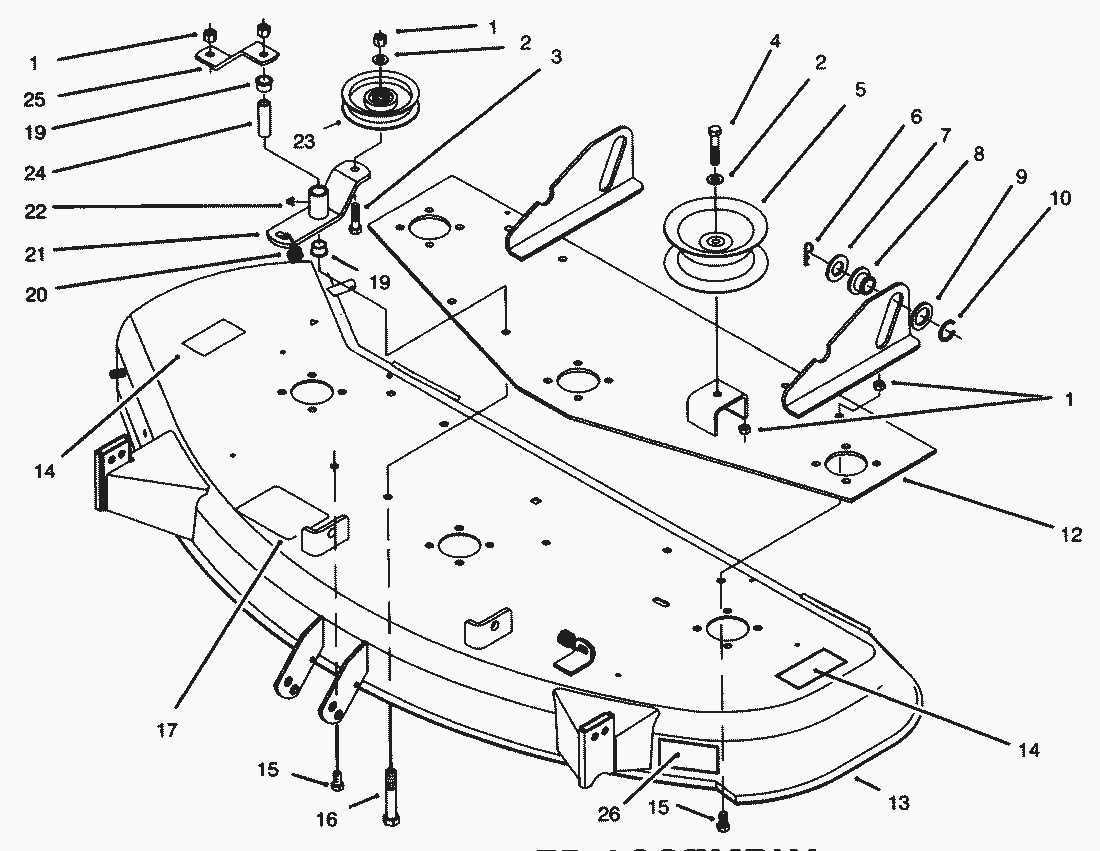

spare parts list


pos.decriptionspare part number
1Locknut3296-39
2Flat Washer3256-24
3Capscrew323-9
4Hex Hd. Capscrew323-11
5Pulley-Idler92-7082
6Cotter-Hair Pin933507
7Washer3256-28
8Roller-Lift78-7340
9Washer920239
10Ring-Retaining32151-29
12Plate-Support79-4410-01
14Decal-Danger92-7108
15Capscrew323-6
16Screw-Hex Hd. Cap323-14
17Decal-Belt116286
19Bushing109859
20Spring116172
21Arm-Idler78-3150-03
22Fitting-Grease302-26
23Pulley-Idler92-7084
24Spacer79-2760
25Strap-Brace78-3140-03
26Decal-Wheel Adjustment68-3380
