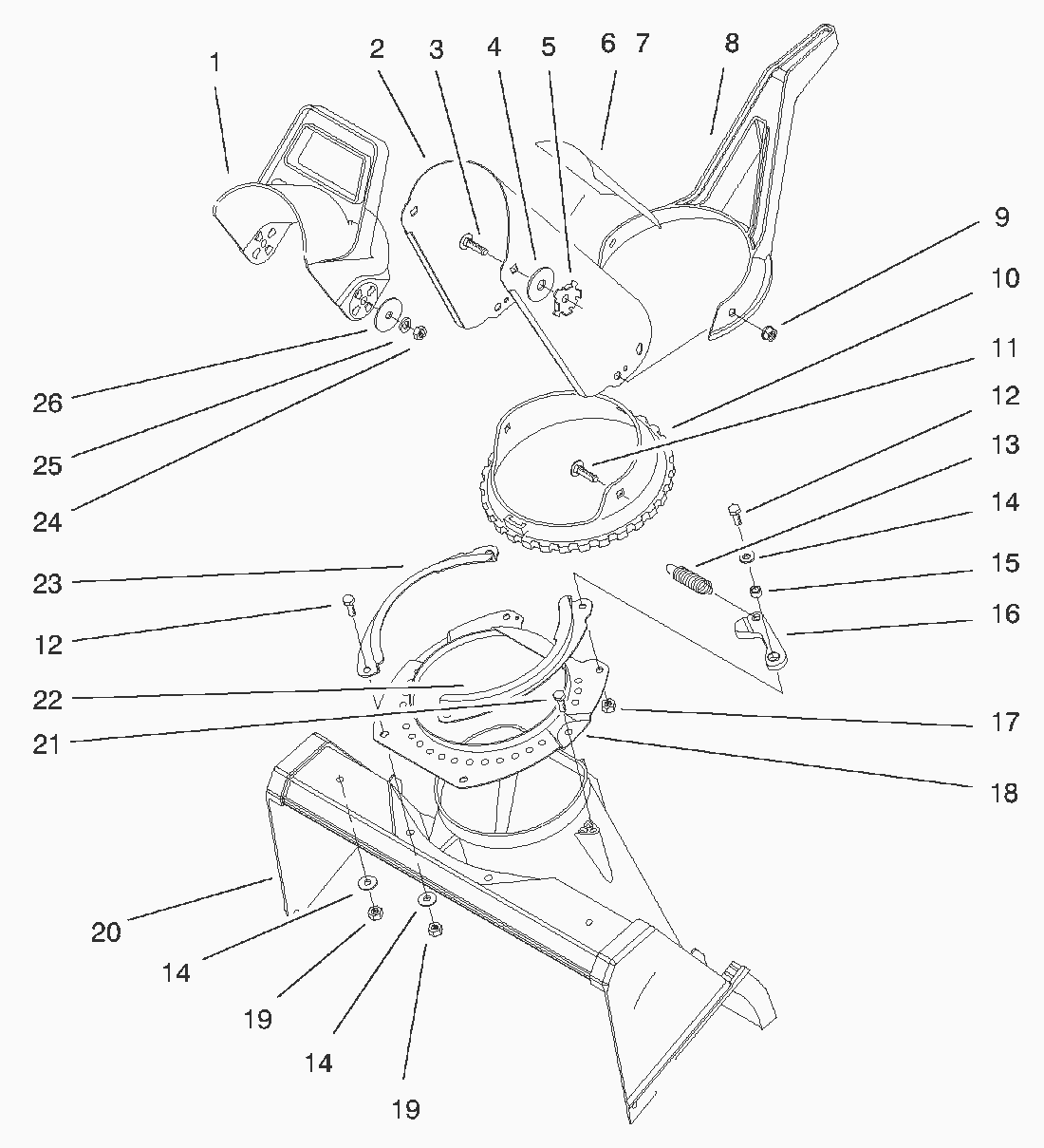

Spare Parts Lists for Toro Roth / TORO Discharge Chute Assy.

pos.	decription	spare part number
1	Deflector	56-2680
2		94-2790
2	Discharge Chute Assembly (Incl. Ref.	94-2791
3	Bolt-Carriage	3230-22
4	Washer Rubber	20-4320
5	Plate-Friction	55-8950
6	Decal-Danger	94-2900
7	Decal-Danger	94-2901
8	Handle-Chute Control	94-9914
9	Locknut	32149-1
10	Ring-Chute	71-4950
11	Carriage Bolt	3230-18
12	Capscrew	321-4
13	Spring-Extension	71-5590
14	Washer	3256-22
15	Spacer	55-9370
16	Arm-Detent	80-4610
17	STOPMUTTER	3296-56
18	Ring-Chute Support	55-8921-01
19	MUTTER	3296-42
20	Housing	55-8700
21	Screw-Special	46-8092
22	Retainer-Chute Ring	71-4980-01
23	Retainer-Chute Ring	71-4990-01
24	MUTTER	3296-29
25	Washer-Belleville	3290-456
26	Washer	3256-68
