> Roth / TORO > Hand operated > Snowthrower > Single stage > CCR 3650 GTS > 642/38441 > 210000001 > Electric Starter Assy. (Model No. 38442 only)

Spare Parts Lists for Toro Roth / TORO Electric Starter Assy. (Model No. 38442 only)

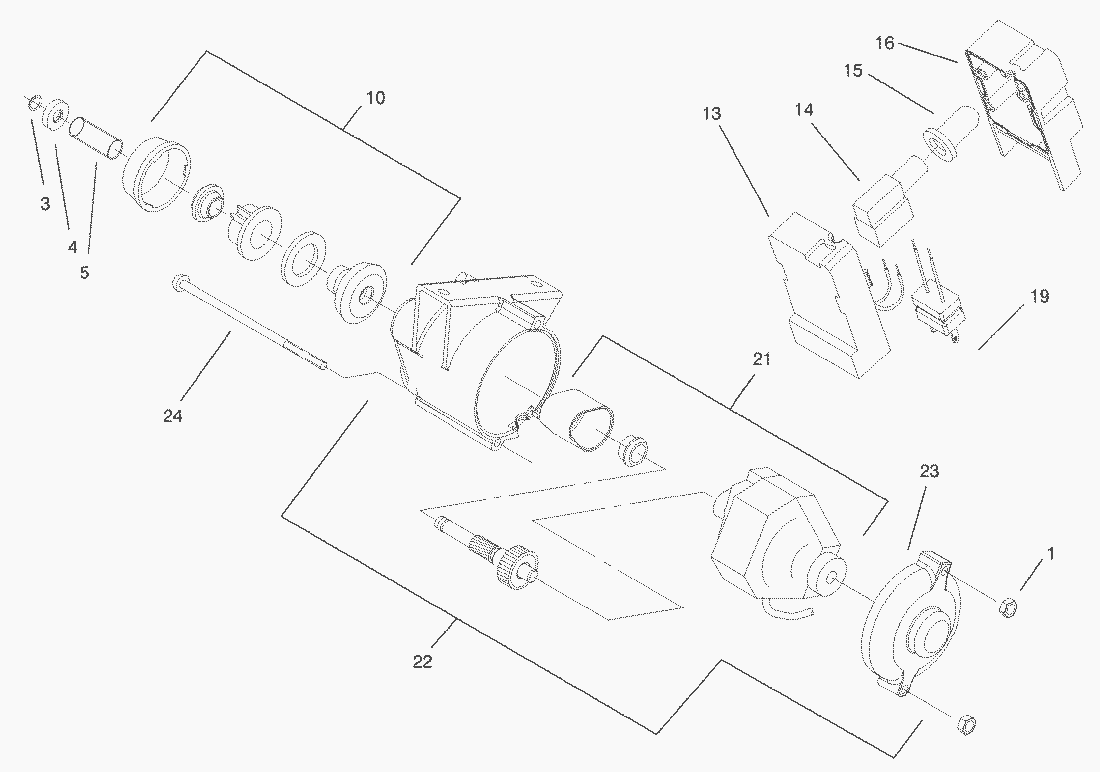

spare parts list


pos.decriptionspare part number
1Nut3296-2
3Retaining Ring61-4680
4Stop-Pinion (only on: 38183)100-2902
5Spring61-4690
10Starter Pinion ASM100-2909
13Switch-Base Housing (only on: 38183)100-3441
14Starter Switch61-4820
15Boot-Switch61-4810
16Switch-Cap Housing (only on: 38183)100-3442
19Plug-Power94-9933
19Cord-7 Ft.28-9170
21Starter Motor ASM95-7639
22Housing-Mtg95-1795
22Housing ASM95-7638
23Housing Motor95-1796
24Screw-PPH95-6354
