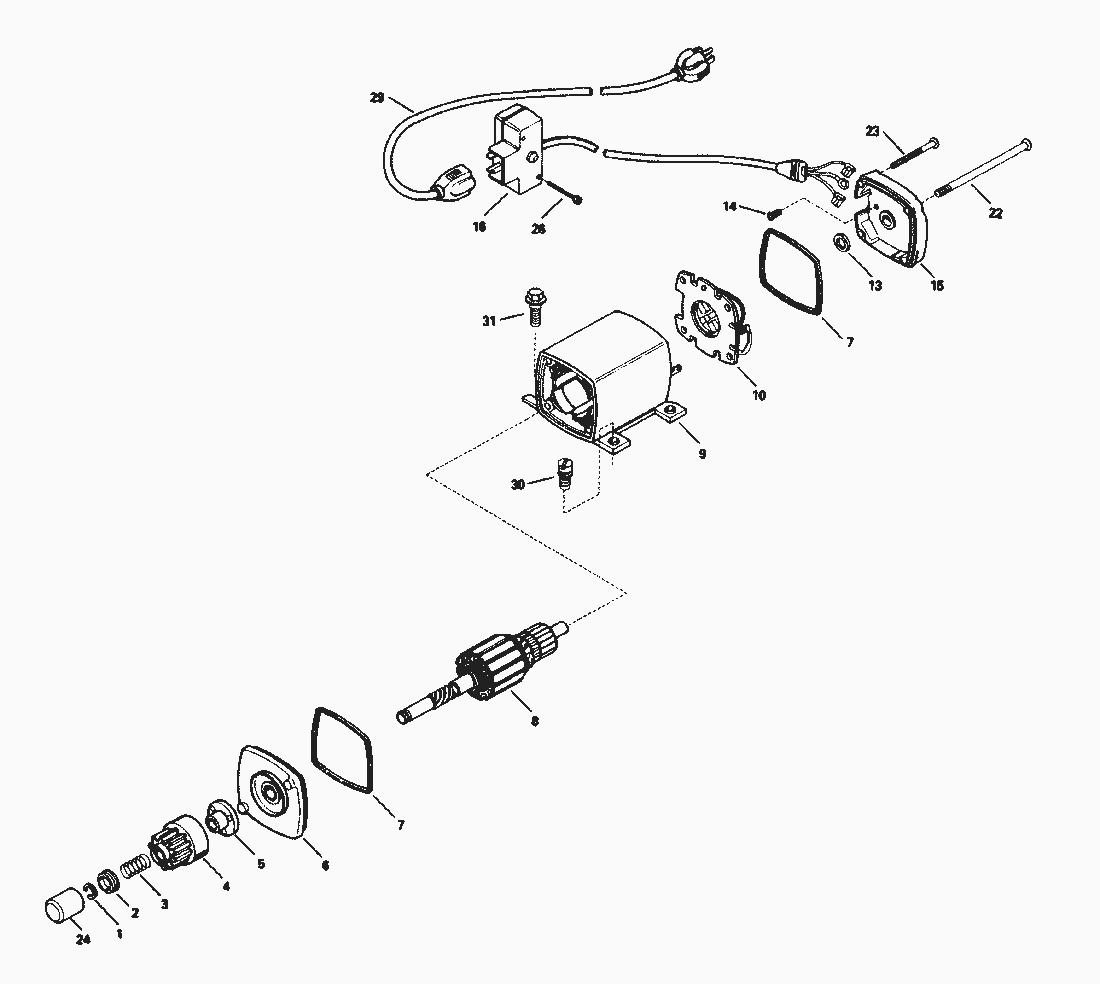

Spare Parts Lists for Toro Roth / TORO Electric Starter Engine Kit No. 37-4810 (Optional)*
| pos. | decription | spare part number | |
| 1 | Ring, Retaining | 33842 |
| 2 | Retainer, Spring | 33430 |
| 3 | Spring, Anti-drift | 33431 |
| 4 | Gear | 33432 |
| 5 | Nut, Engaging | 33433 |
| 7 | O Ring | 35450 |
| 8 | Armature | 33541A |
| 9 | Housing Assy. | 35451 |
| 10 | Card Assy., Brush | 35452 |
| 13 | Washer, Thrust | 590500 |
| 14 | Screw-Ground | 33441 |
| 16 | Box Assy., Switch | 35454 |
| 22 | Bolt, Case | 35455 |
| 23 | Screw, Grounding | 35456 |
| 24 | Cover, Dust | 33451 |
| 26 | Screw, Hex Hd. Self-Tap | 650819 |
| 30 | Screw, Fil. Hd. Sems | 30063 |
| 31 | Screw, Hex Hd. Shoulder | 650820 |
