> Roth / TORO > Hand operated > Snowthrower > Two stage > 3521 > 621/38035 > 7000001 > Engine Assy.

Spare Parts Lists for Toro Roth / TORO Engine Assy.




pos.decriptionspare part number
8-8649

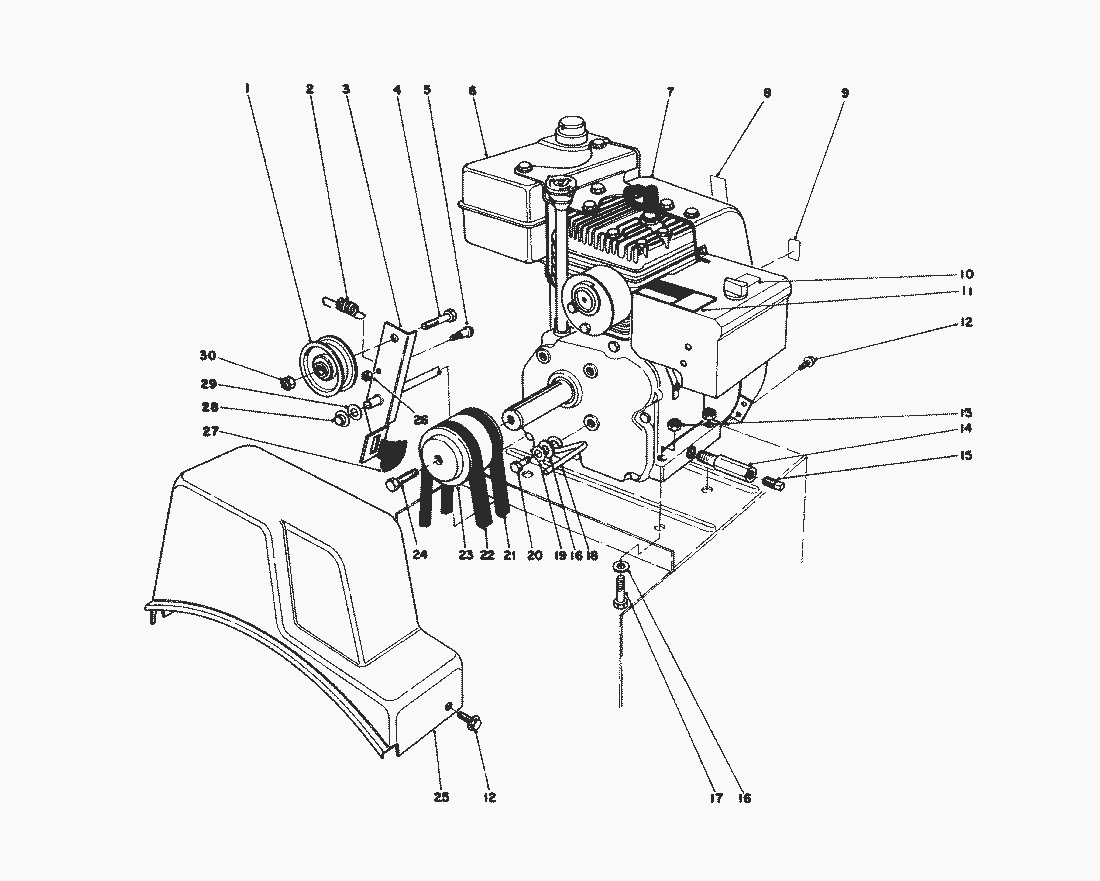

spare parts list


pos.decriptionspare part number
1Pulley Idler3-4244
2Spring-Auger Disengage53-7570
4Capscrew323-29
5Bolt-Shoulder42-3560
6Gas Tank w/Cap52-2680
7Engine52-5610
8Decal-Primer39-3860
9Decal-Throttle37-8890
10Decal-Choke39-3840
11Decal-Hot Surface Warning53-7680
12Screw Thread Forming32144-4
13MUTTER3296-29
14Drain Tube49-3040
15Pipe Plug281-7
16Washer3256-23
17Capscrew322-7
18Belt Retainer37-8990
19Lockwasher3255-8
20Capscrew3210-3
21V-Belt-Traction37-9090
22V-Belt-Auger37-9080
23Engine Pulley43-7370
24Screw-Special43-7290
25Belt Cover37-6900
26Lock Nut32152-4
27Brake Pad-Molded40-8140
28Push-On Speed Nut3290-320
29Flat Washer3256-24
30Locknut32152-2
