> Roth / TORO > Hand operated > Snowthrower > Single stage > CR 20 > 609/38115 C > 8000001 > Engine Assy. (Model No.38115C)

Spare Parts Lists for Toro Roth / TORO Engine Assy. (Model No.38115C)

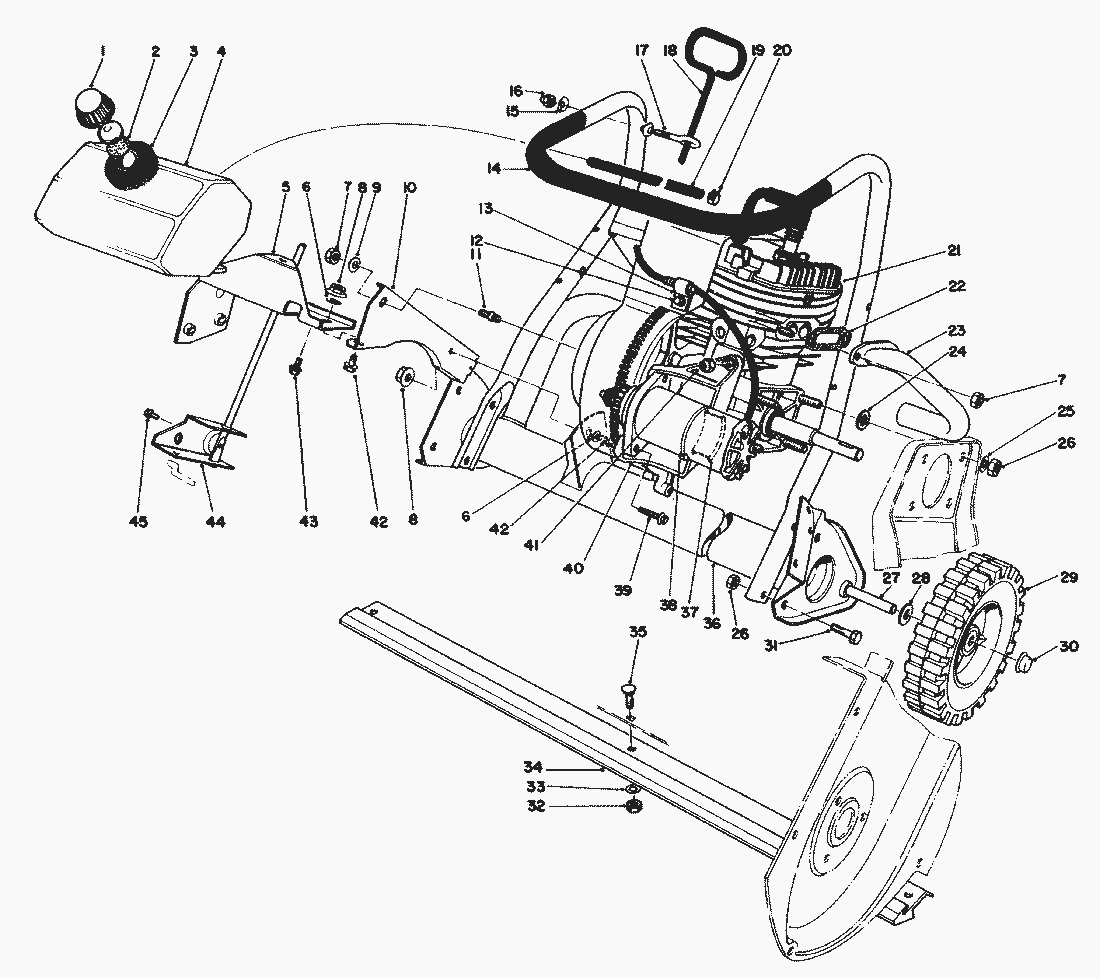

spare parts list

pos.	decription	spare part number
1	Gas Cap (Incl. Ref.	42-0680
2	Gasket	20-4620
3	Foam Pad	25-1610
4	Gas Tank	39-8670
5	Support-Gas Tank	49-1550
6	Washer	3290-244
7	Lock Nut	32152-4
8	Nut-Flange	32128-30
9	Washer	7-3315
10	Support-Engine	49-1570
11	Stud	38-8710
12	Screw Thread Forming	32144-10
13	Cable Clamp	2412-65
14	Lower Handle	49-1360
15	Washer	3-7501
16	Capnut	32111-7
17	Eyebolt	52-7120
18	Rod-Vane Adjustment	49-1600
19	Fuel Line	49-2480
20	Clamp	2412-86
21
22	Gasket-Exhaust Pipe	23-3810
23	Exhaust Pipe	52-7200
24	Spacer	4-2390
25	Washer	3256-23
26	MUTTER	3296-29
27	Axle	27-0060
28	Flat Washer	3256-24
29	Wheel	23-3250
30	Push-On Speed Nut	3290-320
31	Capscrew	322-3
32	STOPMUTTER	3296-56
33	Washer	3256-22
34	Scraper	23-3170
35	Screw-Button Hd. Carriage	52-7130
36	Muffler-Exhaust	49-1540
37	Motor Support-Rear	28-9120
38	Strap-Tie Down	3290-379
39	Thread Forming Screw	32144-26
40	Bracket-Motor Mounting	51-2990
41	MUTTER	3296-42
42	Screw	3234-23
43	Screw Thread Forming	32144-4
44	Bracket-Vane Adjustment	39-0840
45	SCHRAUBE	12-5450
	Loose Parts	12-4309
