> Roth / TORO > Ride-On Mowers > Rider > 12-32 > 375/70084 > 8900001 > Engine B&S Model 28M707-1182-E1

Spare Parts Lists for Toro Roth / TORO Engine B&S Model 28M707-1182-E1


spare parts list 1
spare parts list 2
spare parts list 3


pos.decriptionspare part number
391782
391783
271916
499294
490469
499290
499286
spare parts list

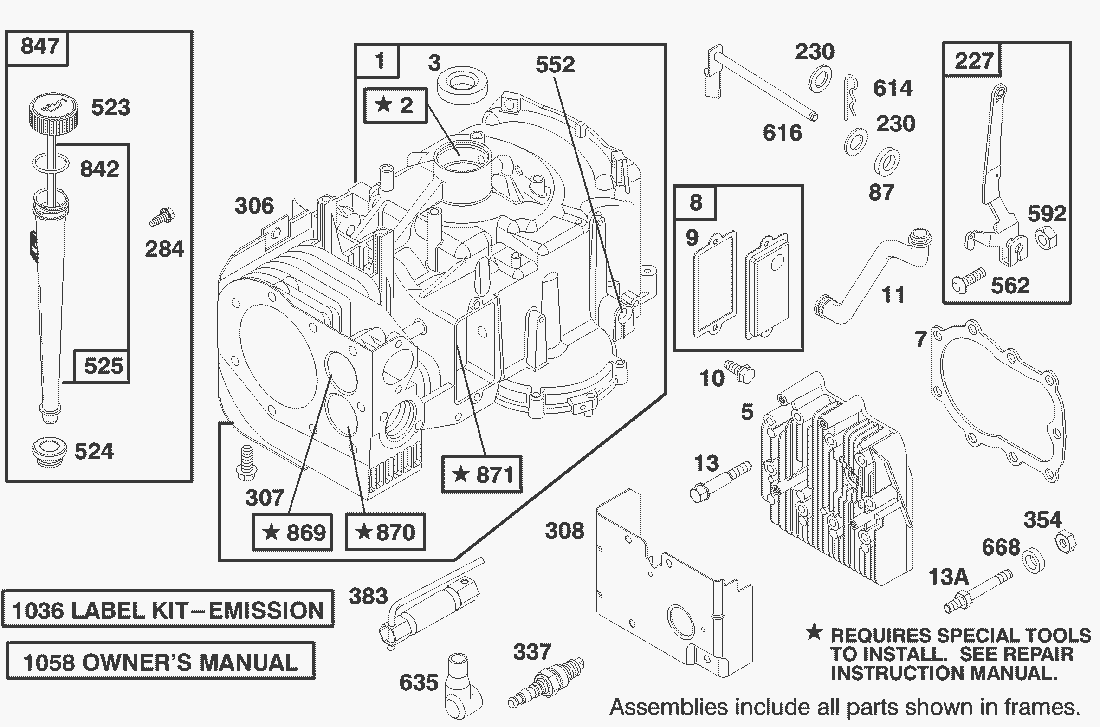

pos.decriptionspare part number
1Cylinder Assembly496413
2Bearing-Cylinder Note: Installation Requires Special Tools399265
3Seal-Oil391086
5Head-Cylinder494240
7Gasket-Cylinder Head271866
8Breather Assembly495735
9Gasket-Valve Cover27803
10Screw94621
11Tube-Breather280100
13Screw-Cylinder Head94622
13Stud-Cylinder Head94776
87Seal-Oil491323
227Lever Assy.-Governor493935
230Washer-Flat94927
284Screw-Shoulder94903
306Shield-Cylinder224545
307Screw-Hex. Head94930
308Cover-Cylinder Head491490
337Plug-Spark (Resistor Type-1-7/8 high, 47 M.M.)(Model No. 38566 only)802592
354Nut-Hex.94726
383Wrench-Spark Plug89838
523Cap and Dipstick Oil Filler495230
524Seal-Filler Tube281370
525Tube-Oil Filler496113
552Bushing-Crank, Gov.491986
562Bolt-Governor Lever94907
592Nut-Hex.231978
614Cotter, Hair Pin93306
616Crank-Governor495157
635Elbow-Spark Plug66538
668Spacer-Muffler Mtg.231109
842Seal-Oil Filler Cap270920
847Fill Group-Oil496415
869Seat-Intake Valve (Standard)261463
870Seat-Exhaust Valve262924
871Guide-Exhaust Valve Note: 231218 Guide-Exhaust on Intake Valve (Brass). See Repair Manual.261961
1036Label Kit-Emission499362
1058Owner s Manual273681
spare parts list

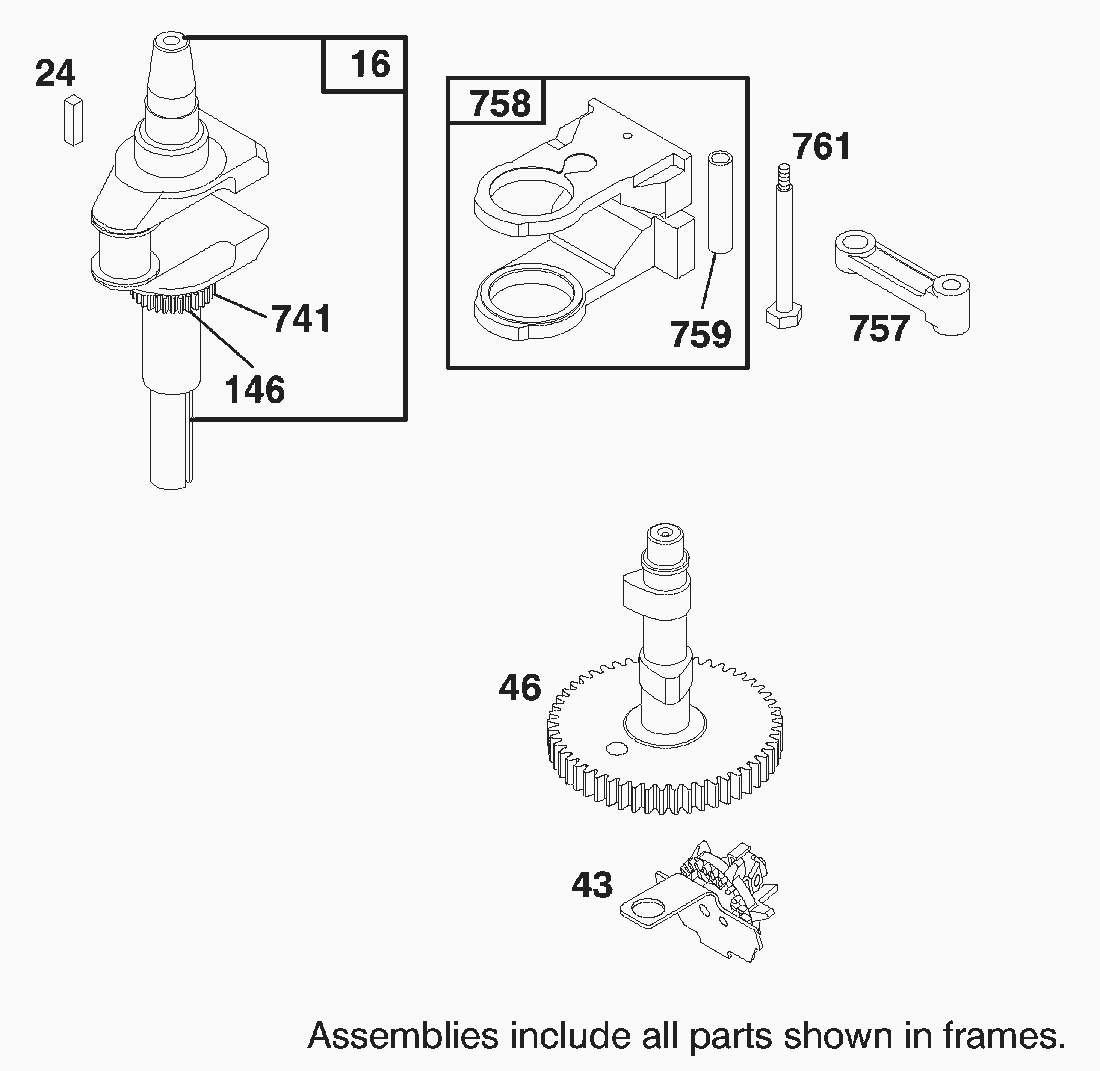

pos.decriptionspare part number
16Crankshaft498971
24Key-Flywheel222698
43Oil Slinger490815
46Gear-Cam212897
146Key-Timing Gear94196
741Gear-Timing262932
757Link-Counterweight213998
758Counterweight Assy.399891
759Pin-Counterweight230787
761Screw-Counterweight94593
spare parts list

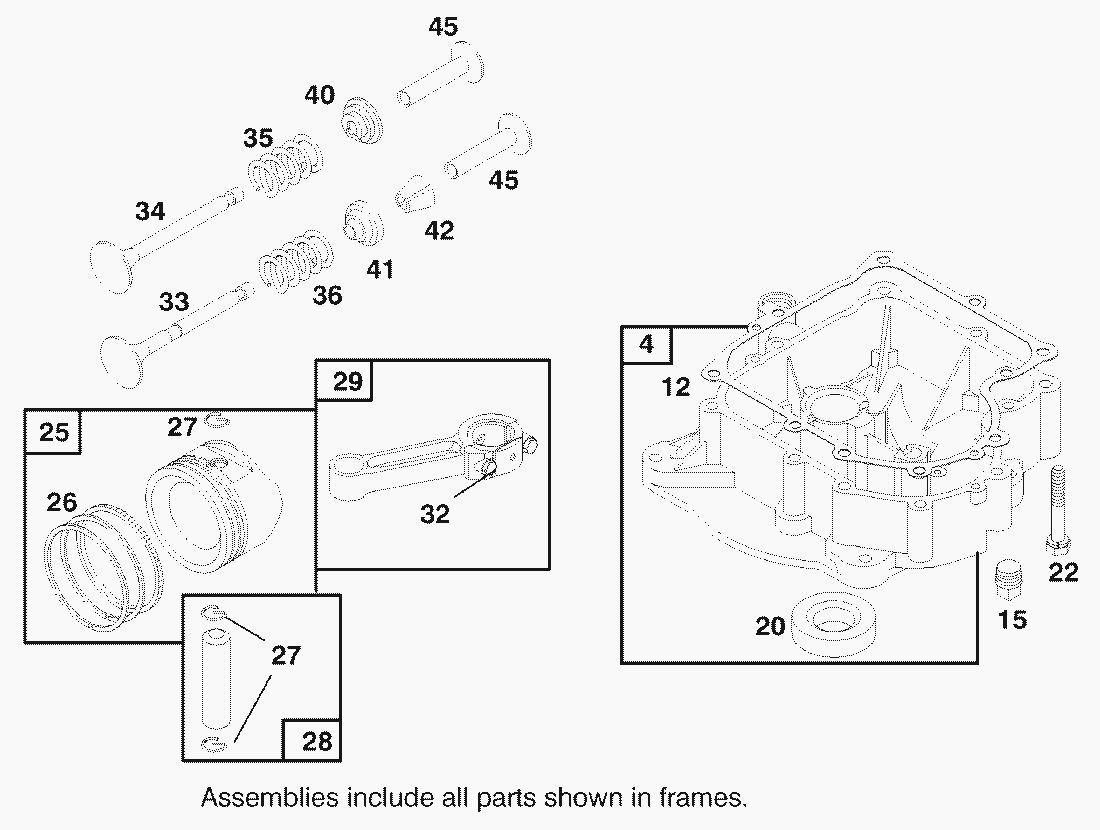

pos.decriptionspare part number
4Base-Engine494238
Gasket-Crkcse Cover, .005 Thick * Included in Gasket Set Part No. 494241.271997
Gasket-Crkcse Cover, .009 Thick * Included in Gasket Set Part No. 494241.271996
15Plug-Oil Drain94239
20Seal-Oil291675
22Screw-Hex.95187
25Piston Assy. (Std.)499282
26Ring Set-Piston-Standard391780
Ring Set-Piston-.010 O.S.391781
27Lock-Piston Pin263129
28Pin Assy.-Piston (Standard)498319
Pin Assy.-Piston (.005 O.S.)498320
29Connecting Rod Assy. Note: For Connecting Rod with .020 Undersize Crankpin Bore-Order No.490469.490348
32Screw-Connecting Rod94671
33Valve-Exhaust262246
34Valve-Intake262247
35Spring-Intake Valve65906
36Spring-Exhaust Valve26828
40Retainer-Intake Valve221596
41Rotocoil-Exhaust Valve292260
42Retainer-Ex. Valve Rotocoil494553
45Tappet-Valve262248
