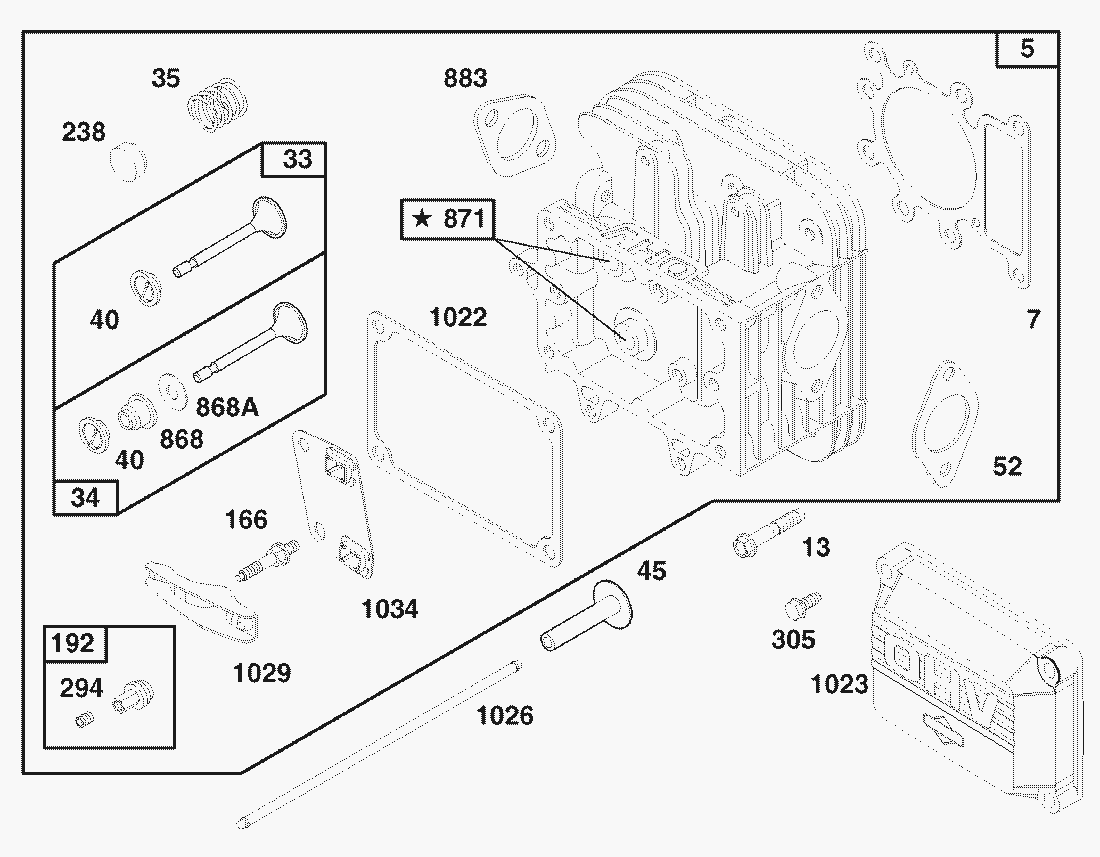

Spare Parts Lists for Toro Roth / TORO Engine B&S Model 28N777-174-01

pos.	decription	spare part number
5	Head-Cylinder	495858
7	Gasket-Cylinder Head	272614
13	Screw-Cylinder Head	94728
33	Valve-Exhaust	495856
34	Valve-lntake	495857
35	Spring-Valve	262811
40	Retainer-Valve	224641
45	Tappet-Valve	262411
52	Gasket-Carb. Mounting	272569
166	Stud-Rocker Arm	94555
192	Ball & Screw-Rocker Arm	492160
238	Cap-Valve	262836
294	Screw-Set	810068
305	Screw-Hex. Washer Hd.	94786
868	Seal-Valve	494435
868	Seal-Valve	272610
871	Bushing-Guide (Intake and Exhaust)	262835
883	Gasket-Exhaust Pipe	272293
1022	Gasket-Rocker Cover	272475
1023	Cover-Rocker	224552
1026	Rod-Push (Intake) Note: 495136 Rod-Push (Exhaust)	494432
1029	Arm-Rocker	224554
1034	Rod-Push (Intake) Note: 495136 Rod-Push (Exhaust)	494432
