> Roth / TORO > Hand operated > Snowthrower > Two stage > 1132 > 610/38160 > 5000001 > Engine B&S Model No. 252416-0677-01

Spare Parts Lists for Toro Roth / TORO Engine B&S Model No. 252416-0677-01




pos.decriptionspare part number
391288
*270856
391782
391287
391783
Rod Assembly-Connecting391816
*270858
93764
Plug, Spark (with gasket)293918
391286
*270857

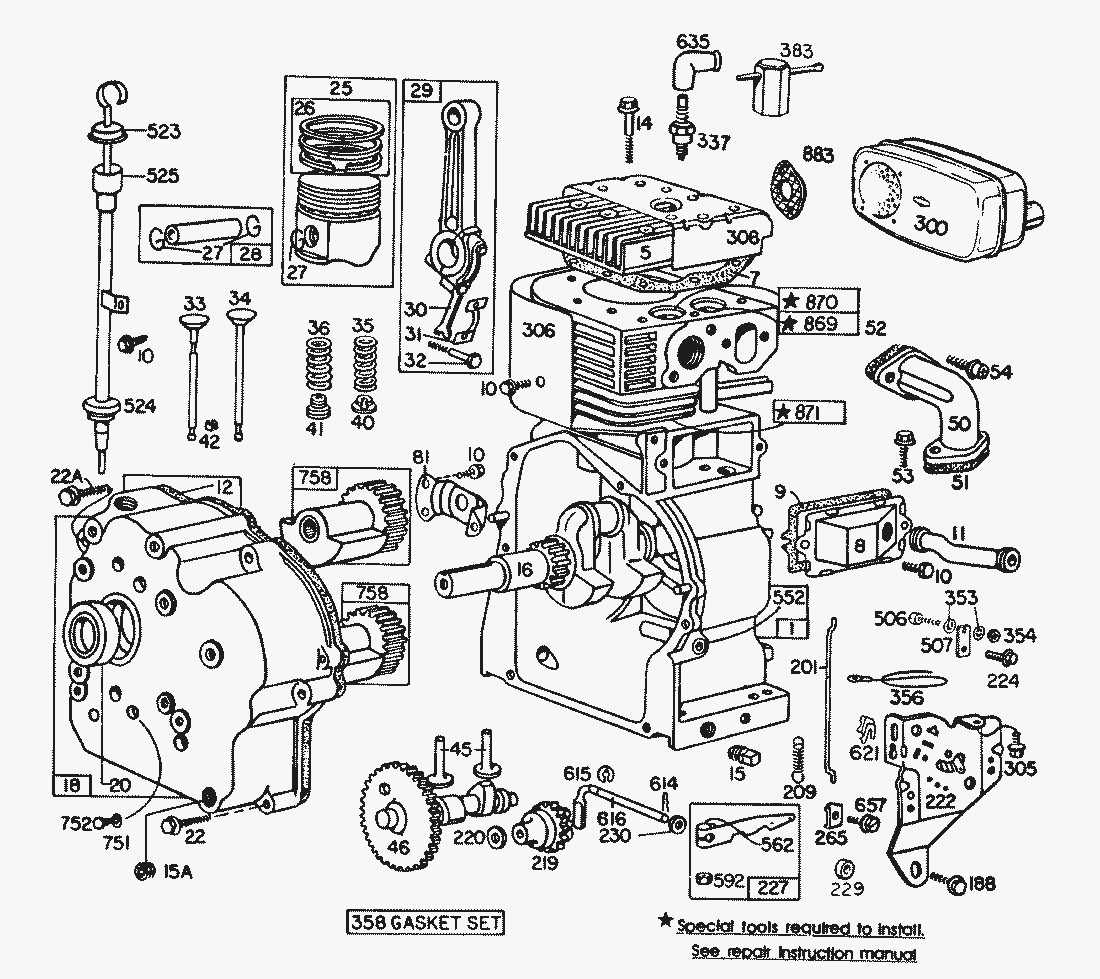

spare parts list


pos.decriptionspare part number
1Cylinder Assembly396209
5Head-Cylinder212917
7Gasket-Cylinder Hd.*271075
8Breather Assembly391575
9Gasket-Valve Cover*27803
10Screw, Breather Mtg. Sem93394
11Tube-Breather280112
1493723
15Plug-Oil Drain91084
15Plug-Hex. Socket93418
16Crankshaft261336
18Cover Assembly-Crankcase391747
20Seal-Oil291675
22Screw-Crankcase Cover Mtg. Sem93585
25Piston Assembly-Standard391285
Piston Assembly-.030 O.S. PISTON RING SETS:391289
26Ring Set-Piston-Standard391780
Ring Set-Piston-.010 O.S.391781
27Lock-Piston Pin260924
28Pin Assembly-Piston-Standard299691
30Dipper-Connecting Rod222329
31Lock-Connecting Rod Screw222299
32Screw-Connecting Rod92909
33Valve-Exhaust261185
34Valve-Intake261462
35Spring-Intake Valve65906
36Spring-Exhaust Valve26828
40Retainer-Intake Valve221596
41Rotocoil-Exhaust Valve292260
42Retainer-Exhaust Valve Rotocoil93630
45Tappet-Valve261183
46Gear-Cam212897
50Elbow-Intake212301
51Gasket-Carb. Mtg.à*270267
52Gasket-Intake Elbow Mtg.à*270872
53Screw-Carburetor Mounting Sem93415
54Screw-Intake Elbow Mounting Sem93208
81Retainer-Counterweight222407
188Screw-Sem93535
201Link-Governor261236
209Spring, Governor260695
219Gear-Governor391737
220Washer, Thrust221551
222Plate-Gov. Control391633
224Screw, Rewind Starter Housing Mtg.93067
227Lever Assy.-Governor391732
229Washer, Governor Lever220680
230Washer-Gov. Crank222450
265Clamp, Casing221535
300Muffler-Exhaust392101
305Screw, Blower Housing Mtg.93158
306Shield-Cylinder222744
308Cover-Cylinder Head222306
353Washer-Lock-Shakeproof92791
354Nut-Hex.-8-3290576
356Wire-Ground Note: 391255 Wire Jumper Used In Addition To No. 391602 Ground Wire.391602
358Gasket Set391834
383Wrench-Spark Plug89838
506Screw-Terminal90200
507Washer-Insulator66895
523Cap and Dipstick-Oil Filler392295
524Seal-Filler Tube68838
525Tube-Oil Filler392283
552Bushing-Gov. Crank231056
562Bolt, Governor Lever92613
592Nut-Hex.-10-24231082
614Cotter, Hair Pin93306
615Retainer, E-Ring93307
616Crank-Governor231057
621Switch, Stop297472
635Elbow-Spark Plug66538
657Screw, Sem93496
751Washer-Flat22355
752Screw-Plug93554
758Counterweight and Bearing Assembly391481
869Seat-Intake Valve (Standard)261463
870Seat-Exhaust Valve(Standard)210940
871
883Gasket-Exhaust270917
