Spare Parts Lists for Toro Roth / TORO Engine B&S ModelS 252416-0756-01 & 252416-0757-01

pos.	decription	spare part number
1	Cylinder Assembly	396209
2	Bearing-Cylinder Note: Installation Requires Special Tools	399265
3	Seal-Oil	391086
5	Head-Cylinder	212917
7	Gasket-Cylinder Head	271866
8	Breather Assembly	495736
9	Gasket-Valve Cover	27803
10	Screw	94621
11	Tube-Breather	280112
14		93723
15	Plug-Oil Drain	94239
50	Elbow-Intake	490051
51	Gasket-Carburetor Mtg.	270267
52	Gasket-Intake Elbow Mtg.	270872
53	Screw-Carburetor Mounting Sem	93415
54	Screw-Intake Elbow Mounting Sem	93208
227	Lever Assy.-Governor	396775
230	Washer-Gov.Crank	94742
306	Shield-Cylinder	224542
308	Cover-Cylinder Head	222306
337	Plug-Spark (Resistor Type-1-7/8 high, 47 M.M.)(Model No. 38566 only)	802592
383	Wrench-Spark Plug	89838
552	Bushing-Governor Crank	231598
562	Bolt, Governor Lever	92613
592	Nut-Hex.-10-24	231082
614	Cotter, Hair Pin	93306
615	Retainer, E-Ring	93307
616	Crank-Governor	231057
634	Seal-Oil	491323
635	Elbow-Spark Plug	66538
869	Seat-Intake Valve (Standard)	261463
870	Seat-Exhaust Valve (Std.)	213316
978	Gasket-Oil Switch	271736
979	Cover-OIL GARDê Hole	398194
982	Cover Screw-Oil GARDê	94139
1019	Decal (Label) Kit	491195

pos.	decription	spare part number

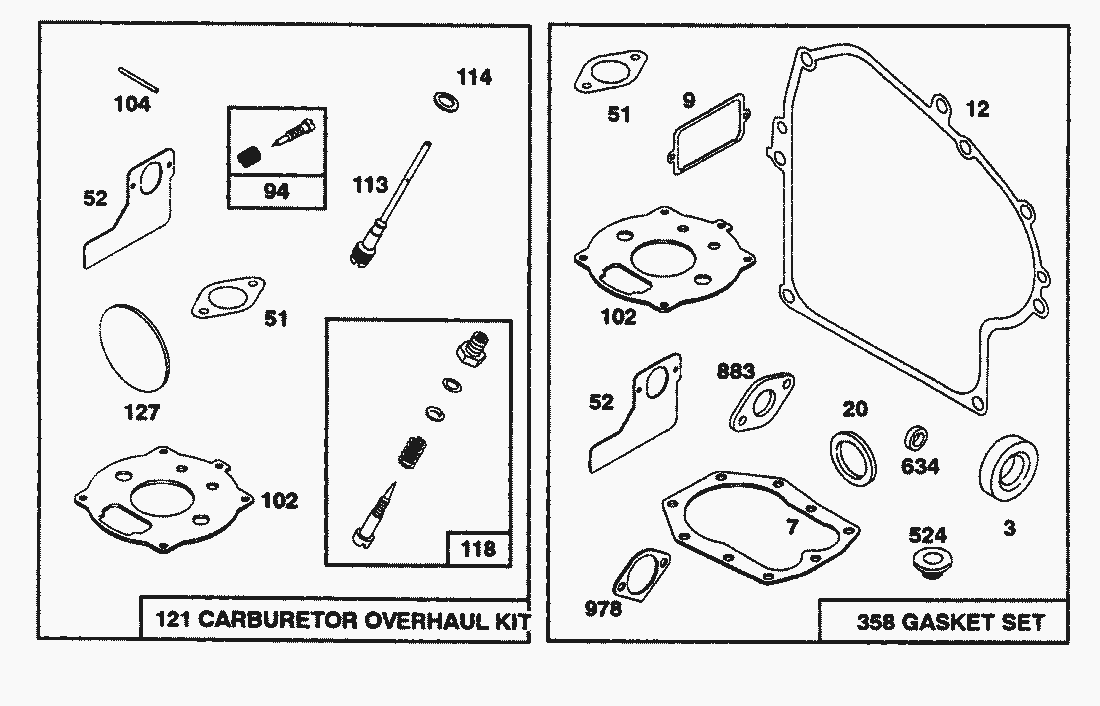

	Gasket-Crankcase Cover (.009 Thick Model 38580 Only) à Included in Carburetor Overhaul Kit-See Ref. #121ð* Included in	272220
15	Plug-Hex. Socket	93418
16	Crankshaft Note: To Replace Gear Key, Order Part No. 94196.	399723
18	Cover Assy.-Crankcase	492661
20	Seal-Oil	291675
22	Screw-Crankcase Cover Mtg. Sem	93585
25	Piston Assembly-Standard	391285
	Piston Assembly-.030 O.S. PISTON RING SETS:	391289
26	Ring Set-Piston-Standard	391780
	Ring Set-Piston-.010 O.S.	391781
		391782
27	Lock-Piston Pin	260924
28	Pin Assembly-Piston-Standard	299691
29	Connecting Rod Assy. Note: For Connecting Rod with .020 Undersize Crankpin Bore-Order No.490469.	490348
30	Dipper-Connecting Rod	222329
32	Screw-Connecting Rod	94671
33	Valve-Exhaust	261185
34	Valve-Intake	261462
35	Spring-Intake Valve	65906
36	Spring-Exhaust Valve	26828
40	Retainer-Intake Valve	221596
41	Rotocoil-Exhaust Valve	292260
42	Retainer-Exhaust Valve Rotocoil	93630
45	Tappet-Valve	262248
46	Gear-Cam	212897
219	Gear-Governor	494845
220	Washer, Thrust	221551
523	Dipstick/Filler Oil	490665
524	Seal-Filler Tube	68838
525	Tube-Oil Filler	392283
741	Gear-Timing	262135
751	Washer-Flat	22355
752	Screw-Plug	93554
758	Counterweight and Bearing Assembly	491787

Lists

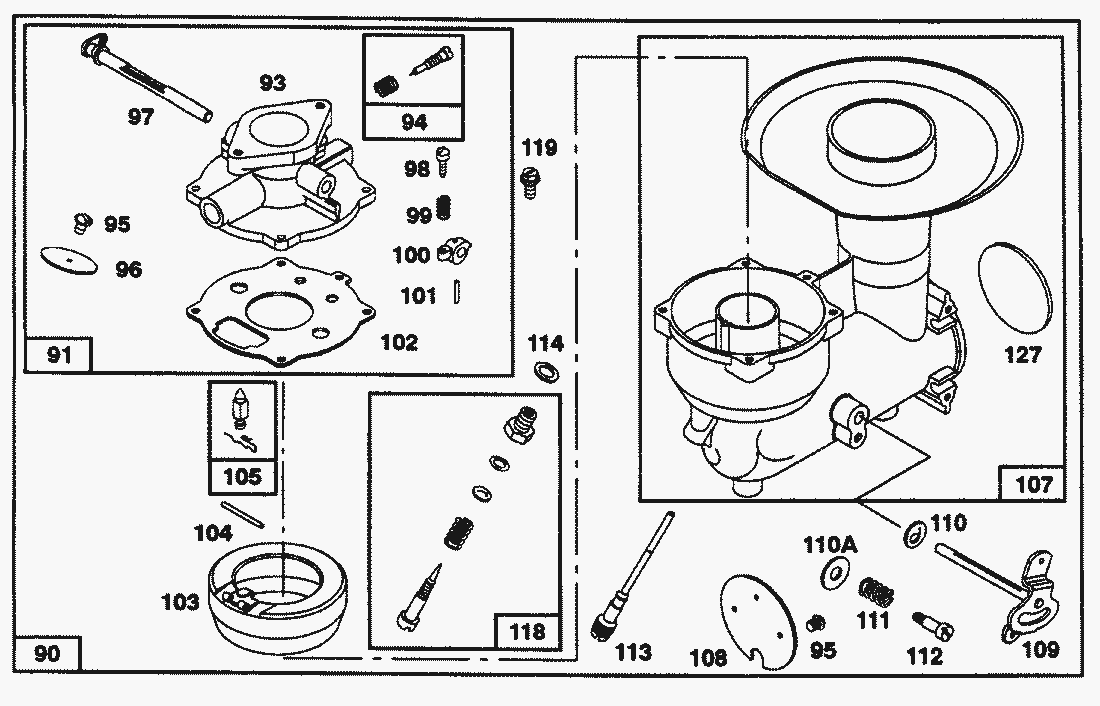

pos.	decription	spare part number
90	Carburetor Assembly (Manual Friction)	399252
91	Body Assembly-Upper Carburetor	391833
93	Bushing-Throttle Shaft	23108
94	Valve Assembly-Carburetor Idle	292681
95	Screw-Throttle and Choke Valve Mounting Sem	93499
96	Valve-Throttle	221939
97	Shaft and Lever-Throttle	391596
99	Spring-Throttle Adjustment	26157
100	Stop-Throttle	212904
101	Pin-Throttle Stop	93043
102	Gasket-Carburetor Body	270268
103	Float-Carburetor	298514
104	Pin-Float Hinge	230896
105	Valve-Fuel Inlet	394681
107	Body Assembly-Lower Carburetor	391829
108	Valve-Choke	223781
109	Shaft and Lever-Choke	391884
110	Washer-Choke Shaft	62889
110	Washer-Choke Lever	222712
111	Spring-Choke Lever	26155
112	Screw-Choke Lever	23123
113	Nozzle-Carburetor	394730
114	Gasket-Nozzle	68667
118	Valve-Needle	99525
119	Screw	94152
127	Plug-Welch	221747

pos.	decription	spare part number
74	Screw, Condenser Clamp Mtg. Sem	93042
165	Nut-Wing	94289
166	Stud-Air Cleaner	231007
171	Nut-Hex.-1/4-28	92129
171	Nut, Hex	90356
188	Screw-Sem	93535
201	Link-Governor	261236
209	Spring, Governor	260695
222	Plate-Gov. Control	399152
305	Screw-Blower Housing Mtg	94608
353	Washer-Lock-Shakeproof	92791
354	Nut-Hex.-8-32	90576
467	Knob-Choke Rod	391908
520	Terminal-Spade	93722
538	Rod-Control	396085
621	Switch-Stop	396847
731	Hood-Snow Uses:	490173
855	Stack-Carburetor Uses: 222726 Strap	231145
932	Guide-Control Rod	396084
985	Insulator Assembly	398525

pos.	decription	spare part number
55	Housing-Rewind Starter	398099
56	Pulley, Rewind Starter	295871
57	Spring-Rewind Starter	490179
60	Handle-Group	398101
63	Spring-Ratchet	260414
64	Adapter-Ratchet Spring	230543
65	Screw-Rewind Starter (Model No. 38566 only)	94128
66	Rewind Starter Clutch Assy.	399671
67	Housing-Starter Clutch	394897
68	Ball, Clutch	63770
70	Ratchet-Rewind Starter Clutch	298799
71	Clutch	394506
75	Washer-Spring	224061
76	Washer, Ratchet Sealing	68238
231	Screw-Sem	94238
373	Nut-Hex.	92987
608	Starter Assembly-Rewind	397982
655	Anchor-Spring	222598
682	Shield-Starter Clutch	211516
1016	Spacer	490817

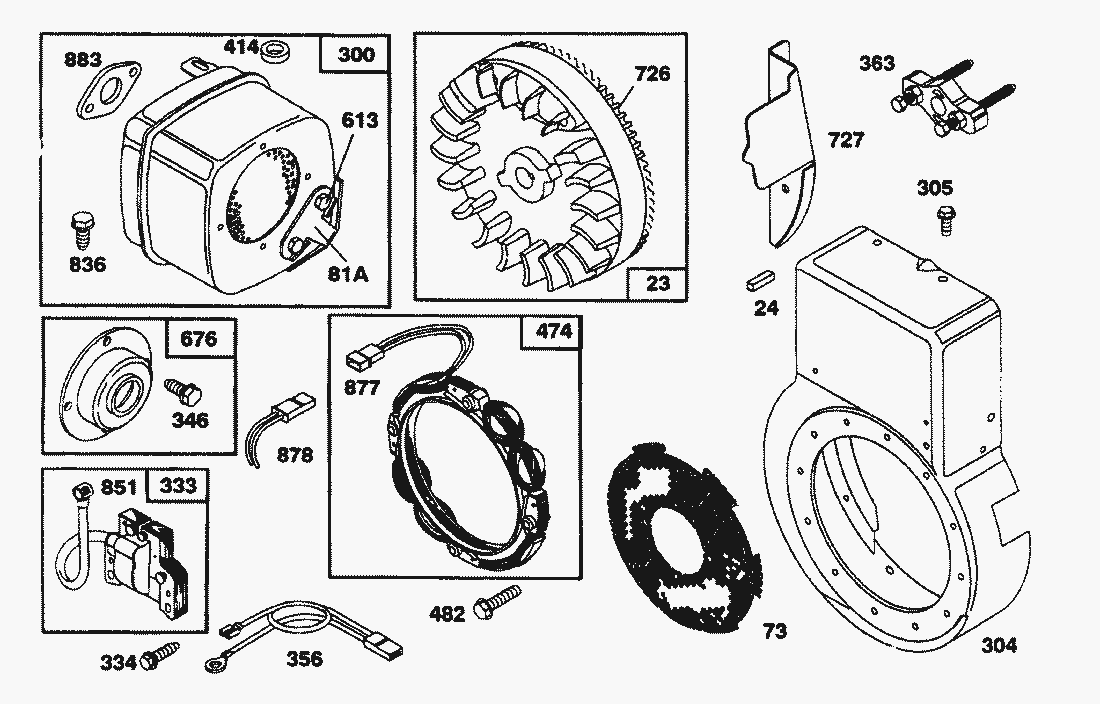

pos.	decription	spare part number
23	Flywheel and Ring Gear Assy.-Magneto	391988
24	Key-Flywheel	222698
81	Lock-Screw	223016
300	Muffler-Exhaust	491626
304	Housing-Blower (Model No. 38566 only)	490446
333	Armature Group	398811
334	Screw-Armature Mounting	94731
346	Screw-Sem	93705
356	Wire-Ground	398874
363	Puller-Flywheel(Optional Accessory)	19203
414	Spacer-Muffler Mtg.	231109
474	Stator-Alternator (Dual Circuit)	393474
	Stator-Alternator	391595
482	Screw-Sem	93621
613	Screw-Hex. Hd.	93927
676	Deflector-Exhaust (Direct)	396903
726	Gear-Flywheel Ring (Includes Mounting Parts)	392134
727	Cover-Starter Gear Uses: 93712 Screw 93713 Lockwasher Used to Mount Guard	223597
836	Screw	92747
851	Terminal-Ignition Cable	221798
877	Diode and Connector Assy. (Dual Circuit)	393456
878	Alternator Harness Assy. (Dual Circuit)	393362
883	Gasket-Exhaust	270917
