Spare Parts Lists for Toro Roth / TORO Engine Tecumseh HMSK80-155645V*




pos.decriptionspare part number
40010
40009
35385
40012
27878A
27880A
40014
30699C
34036
34035
35378

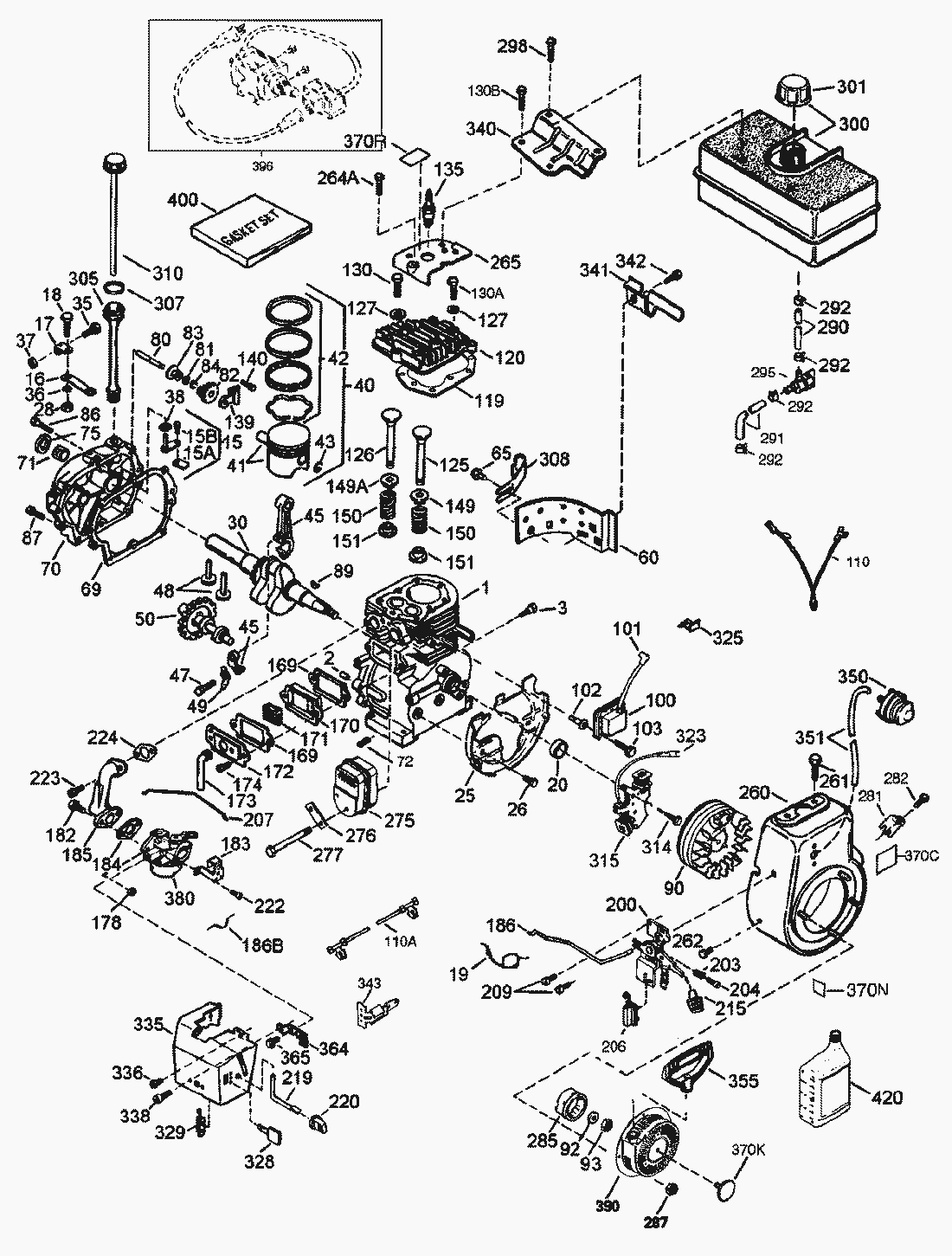

spare parts list


pos.decriptionspare part number
2Pin, Dowel27652
3Screw, Hex Hd. Shoulder650820
15Yoke, Governor30700
15Screw, Fil. Hd.650494
16Lever, Governor33454
17Clamp, Governor Lever29916
18Screw651028
19Spring, Speed Control34663
20Seal, Oil35319
25Blower Housing Baffle36460
26Screw, Hex Washer Hd.650561
28Locknut, Hex30322
30Crankshaft35571A
35Screw, Hex Washer Hd.29826
36Lockwasher, E.T.29918
37Locknut, Hex29216
38Ring, Retaining29642
40Piston, Pin & Ring Set (Std.)40011
42Ring Set (Std.)40013
43Ring, Piston Pin Retaining27888
45Connecting Rod Asm (Incl. Ref.36897
47Connecting Rod Bolt651033
48Lifter, Valve34034
49Oil Dipper36896
50Camshaft (Mechanical Compression Release)35375
60Extension, Blower Housing33273A
65Screw, Fil. Hd.650128
69Cylinder Cover Gasket35262A
70Cover, Cylinder (Incl. Ref.35376
71Bushing, Crankshaft35377
72Plug, Sq. Hd. Pipe, 1/4-18 (Oil Drain)27642
75Seal, Oil35319
80Shaft, Mechanical Governor31845
81Washer, Flat30590A
83Spool, Governor30588A
84Ring, Retaining29193
86Screw, Hex Washer Hd.650833
87Screw, Hex Washer Hd.650832
89Key, Flywheel32589
90Flywheel/Gear611093
92Washer, Lock650880
93Nut, Flywheel650881
100Solid State Assy.35135
101Cover, Spark Plug610118
102Solid State Mounting Stud651024
103Screw, Sternantrieb T-15651007
110Ground Wire35187
110Ground Wire37047
119Cylinder Head Gasket36448
120Cylinder Head36449
127Washer, Flat650691
130Screw, Hex Flange Hd.6021A
130Screw, Special Hex Hd. Tapped650727
130Screw651055
135Spark Plug, Resistor (Champion RJ-19LM)35395
139Bracket, Governor Gear33369
140Screw, Hex Washer Hd. Thread Forming650836
149Cap, Upper Valve Spring (Exhaust)27882
149Seal Ass y-Intake Valve35862
150Spring, Valve27881
151Cap, Lower Valve Spring32581
169Gasket-Breather27896A
170Body, Breather28423
171Element, Breather28424
172Cover, Valve Spring28425
173Tube-Breather35350
174Screw, Fil. Hd.650128
178Nut & Lockwasher29752
182Screw, Fil. Hd.30088A
183Bracket-Choke34587A
184Gasket-Carburetor33263
185Pipe, Intake33877
186Link, Governor34667
186Spring-Choke36652
