Spare Parts Lists for Toro Roth / TORO Engine Tecumseh Model HS50-67259J (Cont.)




pos.decriptionspare part number
33016A
35584
632107A

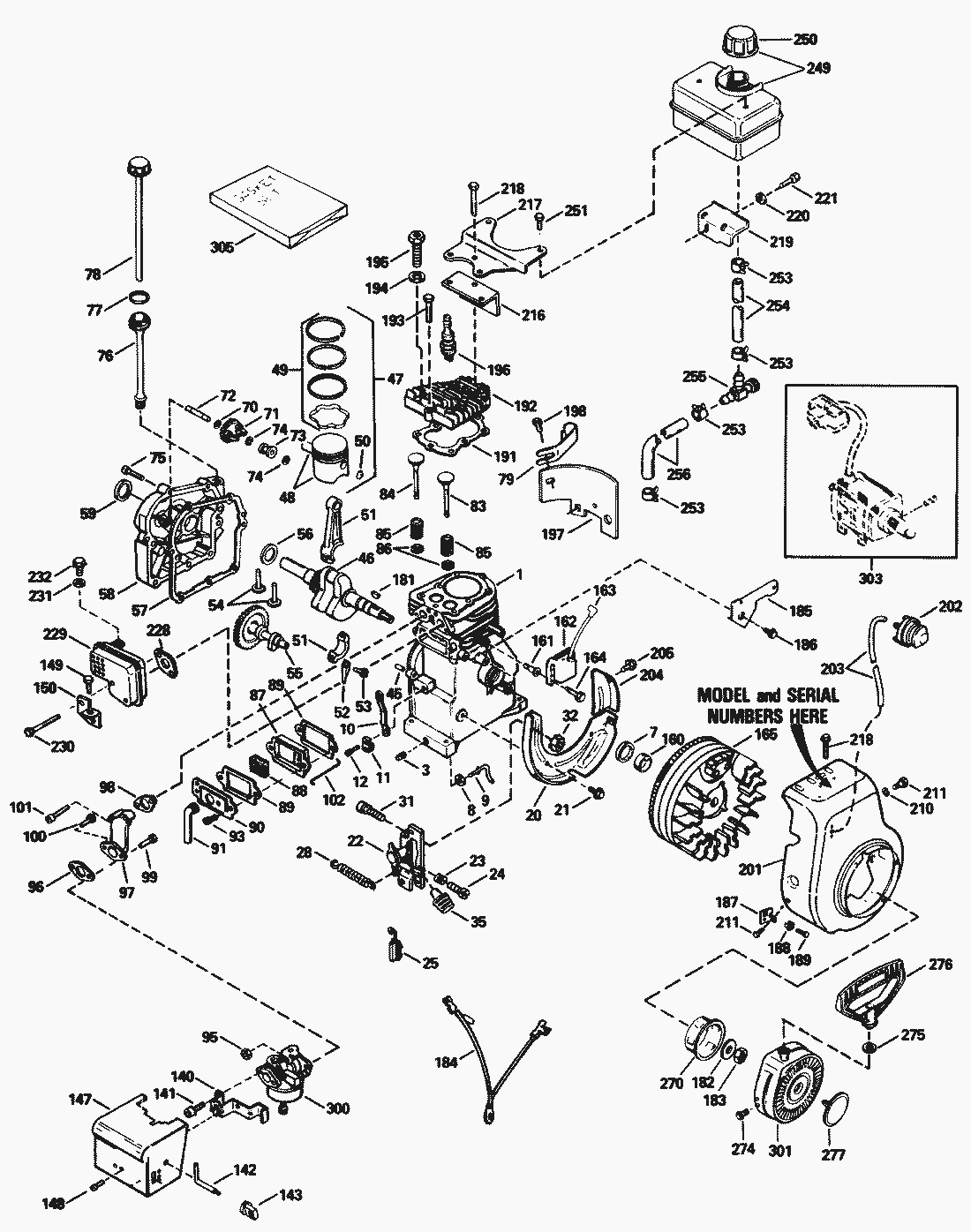

spare parts list


pos.decriptionspare part number
186Screw, Hex Washer Hd. Self-tap.30200
187Bracket, Grommet Mounting34126
188Grommet, Plastic28545
189Screw, Pan Hd. Taptite650760
191Gasket-Cylinder Head*33554A
193Screw, Hex Flange Hd.6021A
194Washer, Flat650691
195Screw-Special Hex Hd.650818
196Spark Plug, Resistor (Champion RJ-19LM)35395
197Extension, Blower Housing29745
198Screw, Fil. Hd.650128
201Housing-Blower35656
202Primer Assembly570682
203Line-Primer32180C
204Extension, Baffle33341
205Screw-Hex Washer Hd. Self-Tapping650701
210Washer, Flat650168
211Screw, Hex Hd.29212
216Baffle, Heat33344
217Bracket, Fuel Tank Mounting28371B
218Screw, Hex Flange Hd.650694A
219Bracket, Fuel Tank Mounting34182
220Washer, Flat650675
221Screw, Hex Hd. w/Belleville Washer650805
228Gasket-Exhaust*33670A
229Muffler35771
230Screw-Fil. Hd.650327
231Washer-Flat8345
232Screw, Fil. Hd. Sems30063
250Cap-Fuel Tank35355
251Screw, Hex Washer Hd., Self-tap650665
253Clamp, Fuel Line26460
254Line, Fuel29774
255Valve, Fuel Shut-off32961
256Line, Fuel30705
270Cup, Starter34694
274Screw-Hex Washer Hd.650884
275Washer, Flat650168
276Handle-Mitten Grip Starter590574
277Plug, Starter35392
301Starter-Rewind590646
303
305Gasket Set (Incl.Items Marked *)33683B
