Spare Parts Lists for Toro Roth / TORO Engine Tecumseh Model HSSK50-67259M (Cont.)




pos.decriptionspare part number
35584
632107A

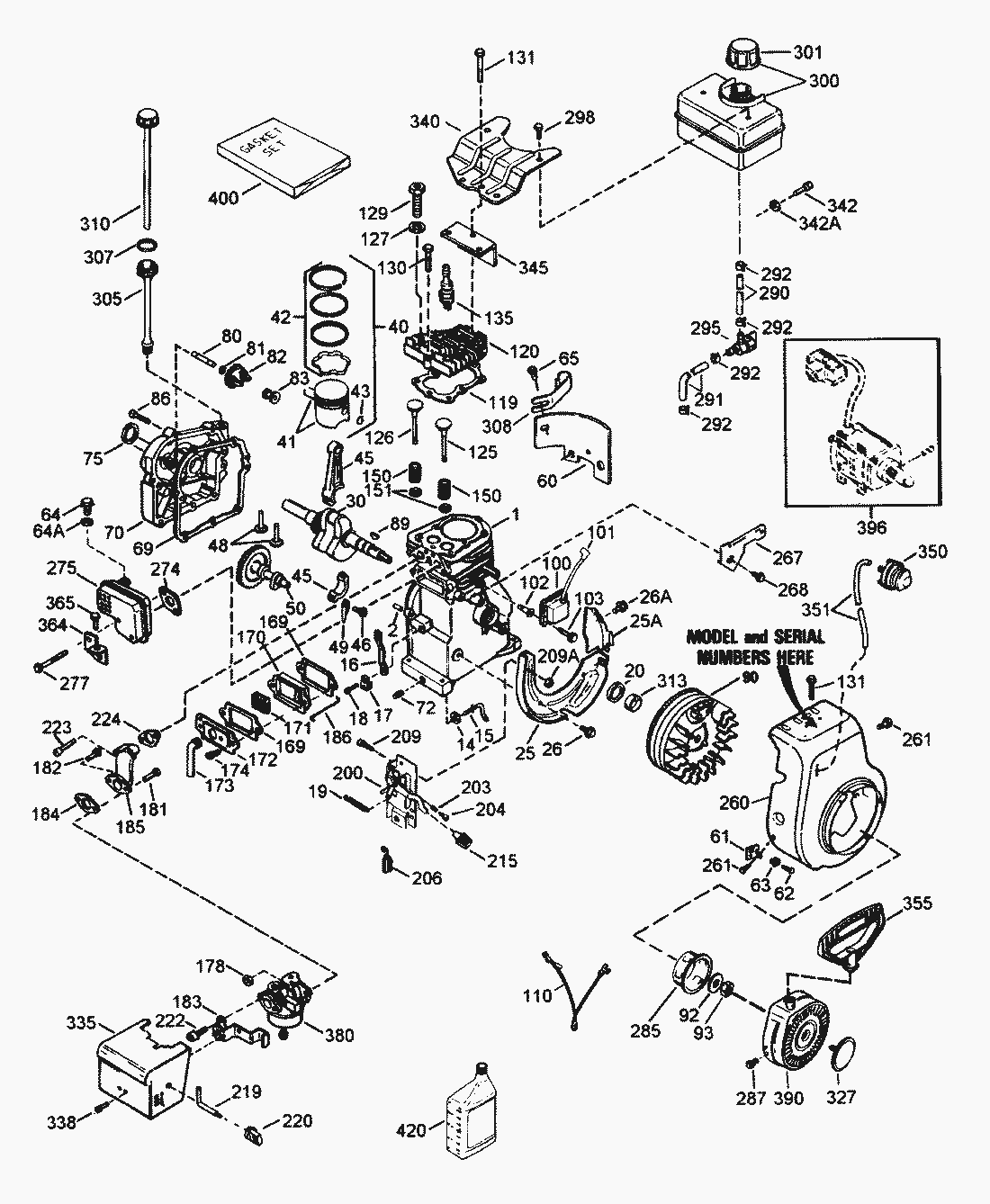

spare parts list


pos.decriptionspare part number
260Housing-Blower35656A
261Screw, Hex Hd.29212
267Bracket, Hold Down34212
268Screw, Hex Washer Hd. Self-tap.30200
272Screw-Hex Hd.650735
274Gasket-Exhaust*33670A
275Muffler35771
277Screw-Fil. Hd.650327
285Cup, Starter34694
287Screw-Hex Washer Hd.650926
290Line, Fuel29774
291Line, Fuel30705
292Clamp, Fuel Line26460
295Valve-Shut-Off35857
298Screw, Hex Washer Hd., Self-tap650665
301Cap-Fuel Tank35355
305Tube Assy.-Oil Fill35554
307O Ring35499
308Clip-Oil Fill35539
310Dipstick35556
313Spacer-Flywheel Key34080
327Plug, Starter35392
335Cover-Carburetor35072
338Screw, Pan Hd.650257
340Plate-Fuel Tank36247
342Screw, Fil. Hd. Sems30063
342Washer, Flat650675
345Baffle, Heat33344
350Primer Assembly570682
351Line-Primer32180C
355Handle-Mitten Grip Starter590574
364Bracket-Carburetor Cover33333
365Screw-Hex Hd.650735
390Starter-Rewind590646
396Electric Starter Kit (Optional)33290D
400Gasket Set36444
420SAE5W30 4 Cycle Oil (Quart) RPM Setting: Low Speed 1700, High Speed 3450730226
