> Roth / TORO > Hand operated > Snowthrower > Single stage > CCR 3000 > 642/38431 > 8900001 > Engine & Frame Assy.

Spare Parts Lists for Toro Roth / TORO Engine & Frame Assy.

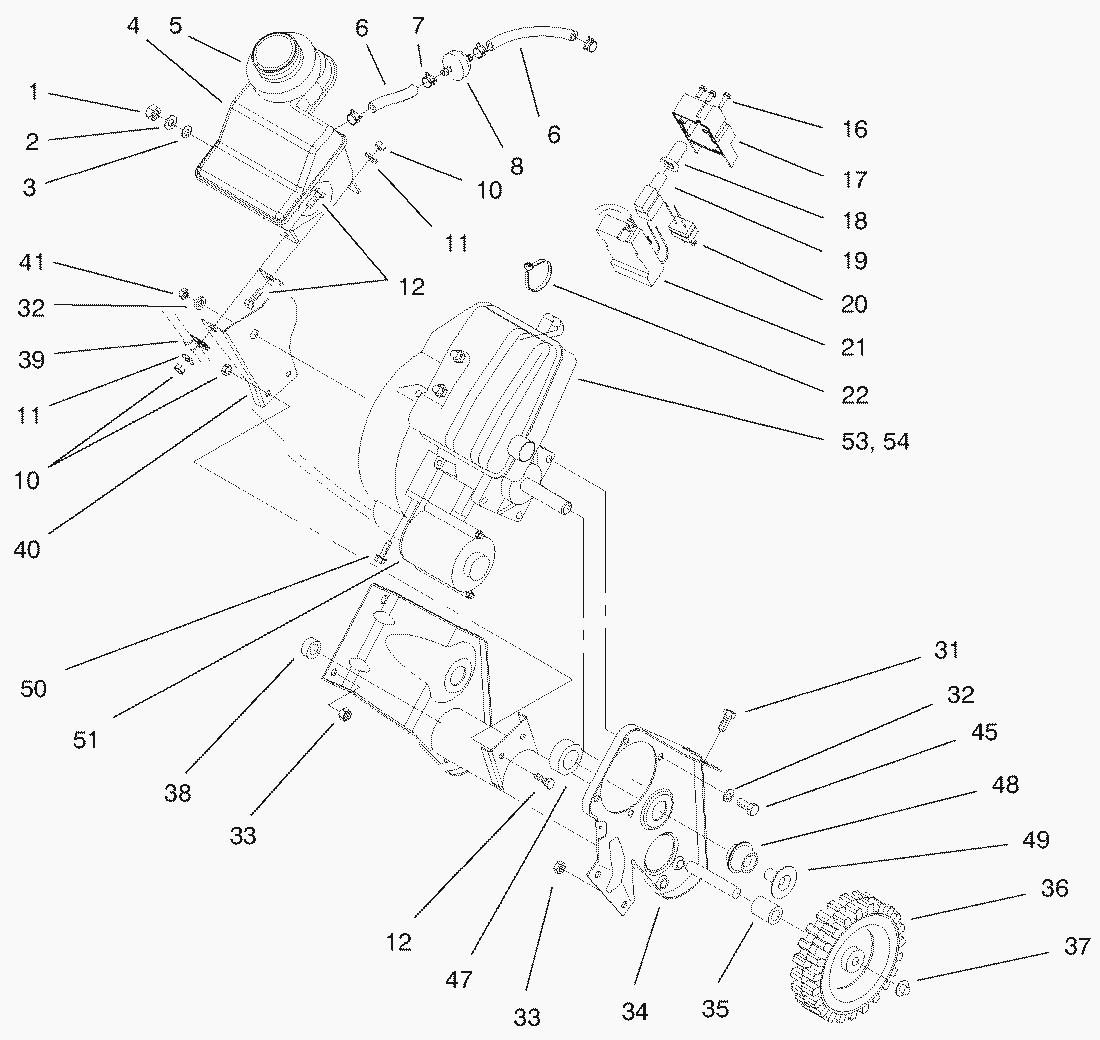

spare parts list

pos.	decription	spare part number
1	Nut-Lock	32152-8
2	Washer	3256-23
3	Rubber Grommet	237-89
4	Tank-Gas	55-8831
5	Seal-Tank	55-9310
6	Line-Fuel	49-2481
7	Clamp-Hose	2412-98
8	BENZINVORFILTER	56-6360
10	MUTTER	3296-42
11	Washer	3256-22
12	Capscrew	321-4
16	Thread Forming Screw	32144-27
17	Cap-Switch Housing	80-3740
18	Boot-Switch	61-4810
19	Starter Switch	61-4820
20	Plug-Power	94-9933
21	Base-Switch Housing	80-3730
22	Cable Tie	250-4
31	Capscrew	322-3
32	Washer-Belleville	3290-456
33	MUTTER	3296-29
34	Frame Assembly	63-3750
35	Spacer-Wheel	66-6501
36	Wheel	66-6510
37	Pushnut	32112-14
38	Spacer-Wheel	66-6500
39	Clamp-Cable (Model No. 38175 Only)	2412-91
40	Support-Recoil	55-9070-01
41	Nut-Hex	81-0300
42	Washer-Engine Support	71-5320
45	SCHRAUBE	81-0570
47	Mount-Load	55-9450
48	Mount-Rebound	55-9460
49	Tube-Spacer	55-9470
50	Screw, M8	56-6380
51	Motor Assembly	84-5292
53	Engine 2-Cyc Snow (Model No. 38430,38431)	94-9890
54	Engine 2-,Cyc Snow (Model No. 38435, 38436)	94-9891
