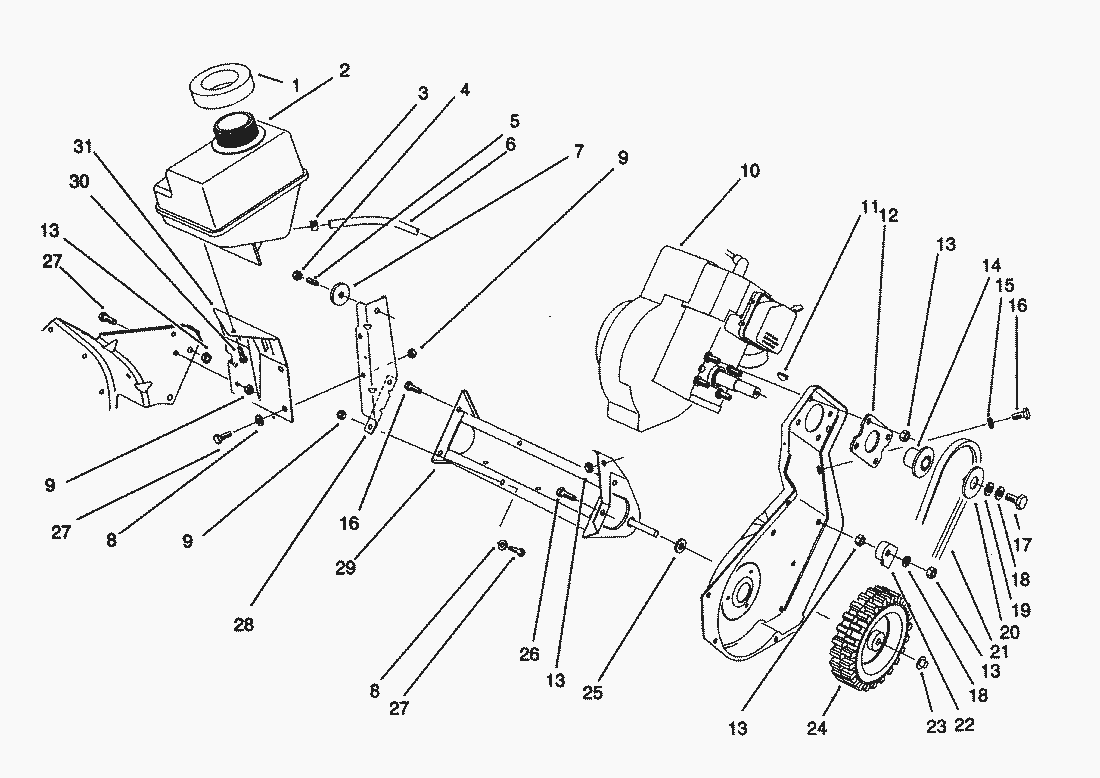

Spare Parts Lists for Toro Roth / TORO Engine & Frame Assy.

pos.	decription	spare part number
1	Seal-Tank	55-9310
2	Tank-Fuel	71-5020
3	Clamp	2412-86
4	Locknut	3296-16
5	Stud	38-8710
6	Hose-Fuel	49-2482
7	Washer-Engine Support	71-5320
8	Washer	3256-22
9	MUTTER	3296-42
10
11	Woodruff Key	3257-3
12	Plate-Engine	71-5290
13	MUTTER	3296-29
14	Hub-Sheave	71-5050
15	Washer	3256-23
16	Capscrew	322-3
17	Screw-Locking Hex. Hd.	3235-6
18	Washer-Belleville	3290-456
19	Washer-Flat	3256-71
20	Cap-Sheave	71-5060
21	Belt-Drive	71-5380
22	Guide-Cable	84-5610
23	Push-On Speed Nut	3290-320
24	Wheel	23-3250
25	Spacer-Wheel	71-5440
26	Hex Hd. Capscrew	322-5
27	Capscrew	321-4
28	Support-Engine	71-5210
29	Frame Assembly	71-5200
30	Screw-Slotted Flange Hd.	32144-53
31	Bracket-Fuel Tank	71-5220
