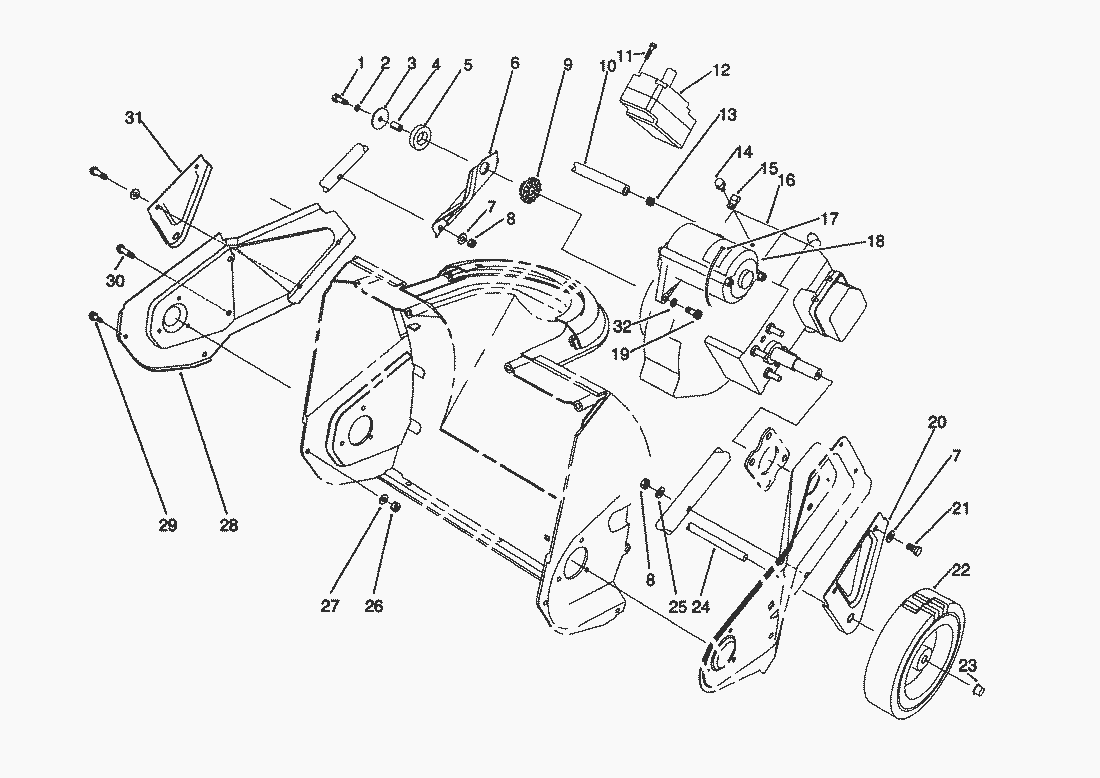

Spare Parts Lists for Toro Roth / TORO Engine & Wheel Assy.

pos.	decription	spare part number
1	Screw-Hex Hd.	321-6
2	Lockwasher	3253-3
3	Washer-Fender	3256-58
4	Spacer	80-0650
5	Ring-Isolator	80-0620
6	Support-Engine	75-8980
7	Washer-Plain	3256-1
8	MUTTER	3296-42
9	Bushing-Isolation	75-9100
10	Hose-Fuel	49-2483
11	Thread Forming Screw	32144-27
12	Motor Switch Housing Ass y (Model No. 38175 Only)	77-0400
13	Clamp	2412-86
14	Screw Thread Forming	32144-10
15	Clamp-Cable (Model No. 38175 Only)	2412-91
16
17	Strap-Motor (Model No. 38175 Only)	250-7
18	Starter Motor Assembly (Model No. 38175 Only)	80-4700
19	Screw-Button Hd. Sternantrieb (Model No. 38175 Only)	3274-88
20	Bracket-Wheel L.H.	75-8910
21	Capscrew	321-10
22	Wheel	23-3250
23	Push-On Speed Nut	3290-320
24	Axle	27-0062
25	Washer	3-7501
26	Nut	3296-2
27	Washer	3256-14
28	Sideplate-R.H.	75-8820
29	Screw-Hex Washer Hd.	32105-23
30	Screw-Hex Washer Hd.	46-8094
31	Bracket-Wheel R.H.	75-8900
32	Washer-Flat (Model No. 38175 Only)	3256-79
