> Roth / TORO > Hand operated > Lawnmower > 4-stroke SP > 465/20781 > 220000001 > Engine and Blade Assy.

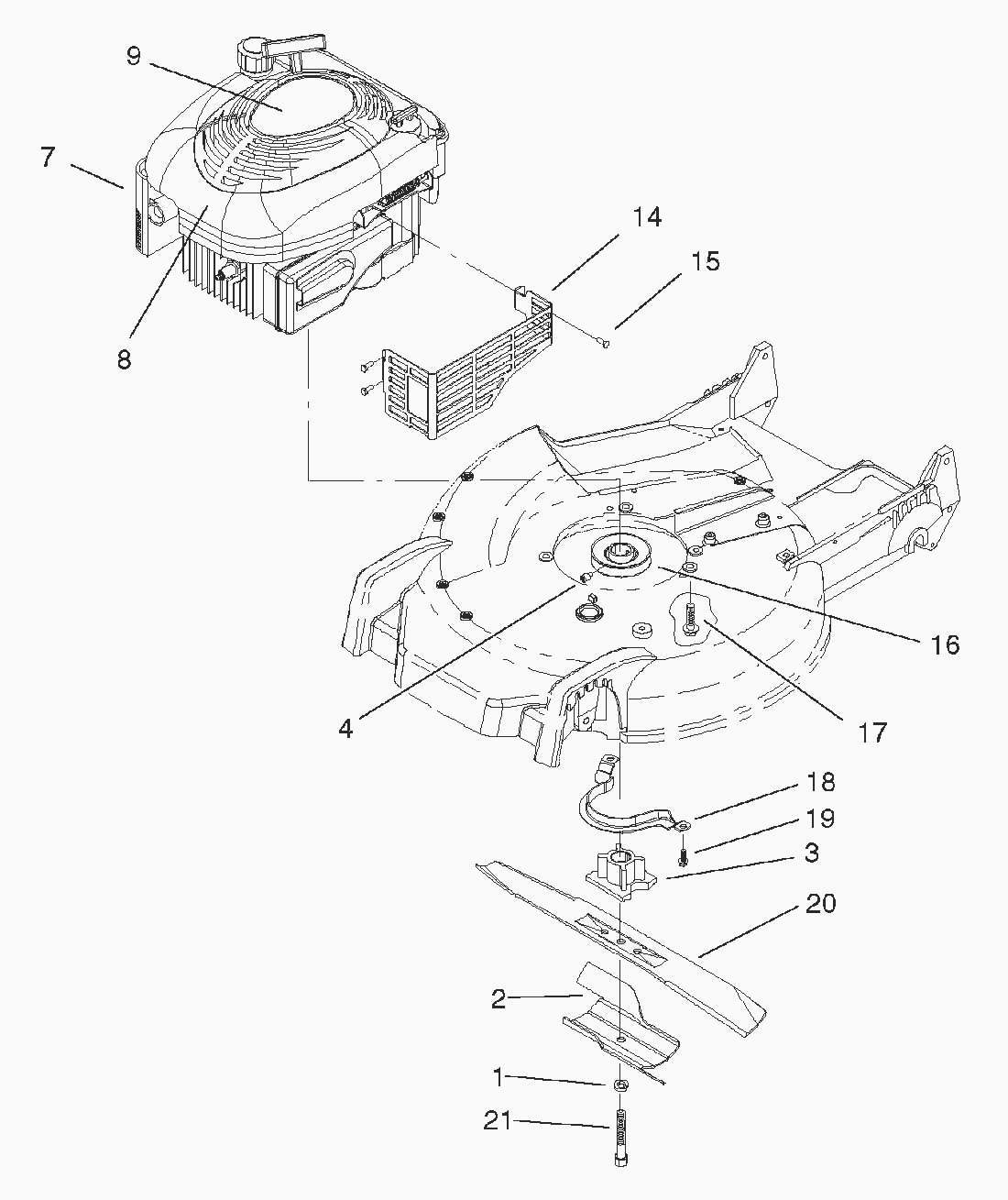

Spare Parts Lists for Toro Roth / TORO Engine and Blade Assy.




spare parts list


pos.decriptionspare part number
1Washer-Lock3253-22
2Accelerator-Blade94-1608-03
3Retainer-Blade104-1007
4Screw-Set,Cone Point104-0214
7
8Plate-Logo98-3206
9Decal-Recoil105-8572
10SEILANSCHLAG2210-316
14Shield-Muffler104-7577-03
15Screw-Thread Forming32144-1
16Pulley ASM100-1102
17Bolt-Engine32144-102
18Guide-Belt99-1526-03
19Self Tapping Screw32144-70
20Blade-Recycler93-4106-03
21Screw-Blade95-1748
23Screw Thread Forming32144-4
24Guard-Flywheel99-0905
