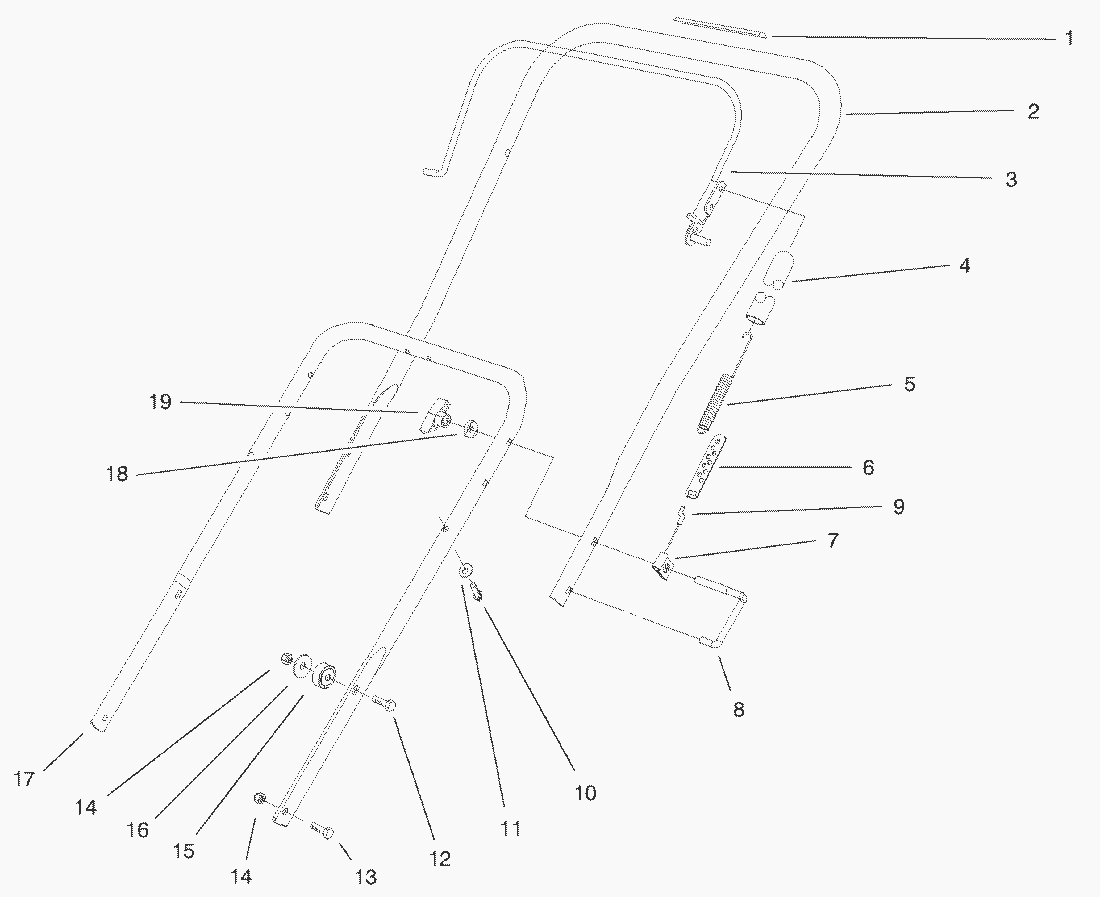

Spare Parts Lists for Toro Roth / TORO Handle Assy.

pos.	decription	spare part number
1	Decal-Rotor Drive	94-2577
2	ASM-Handle (Only On: 38411)	95-2668
3	Bail	71-5120-03
4	Cover-Spring	71-5530
5	Spring-Extension	71-5480
6	Adjuster-Clutch Cable	55-9380
7	Clamp-R	2412-112
8	Lock-Handle	98-2266
9	Cable-Clutch	94-9922
10	Machine Screw-Hex Hd.	61-8640
11	Washer	3-7501
12	Screw-HH	322-17
13	Capscrew	322-3
14	MUTTER	3296-29
15	Spacer-Lower Handle	94-9923
16	Washer	3256-68
17	Handle-Lower	55-9121-03
18	Washer-PM	75-9130
19	Knob	98-7134
