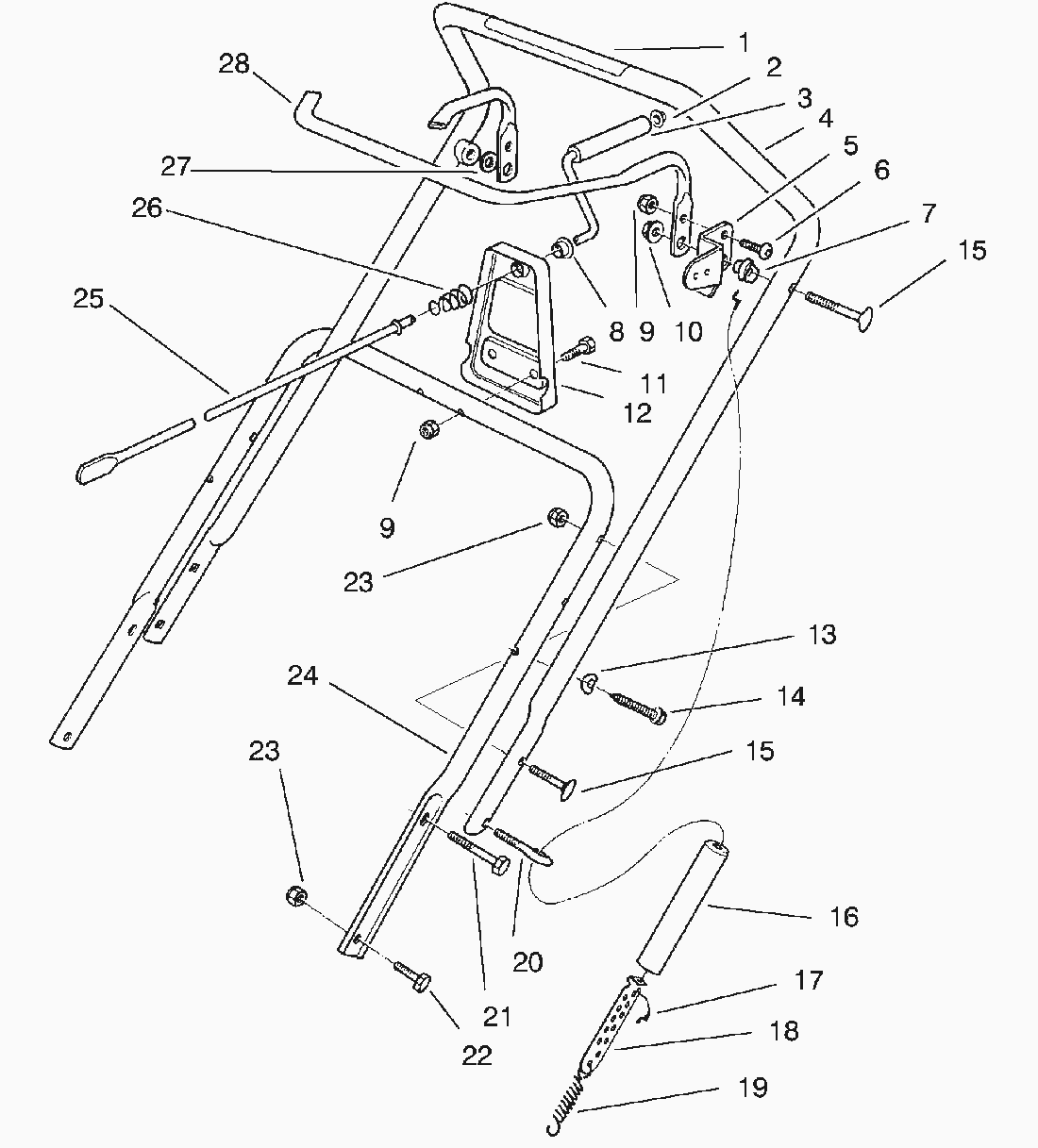

Spare Parts Lists for Toro Roth / TORO Handle Assy.

pos.	decription	spare part number
1	Decal-Rotor Drive	66-6870
	Decal-Rotor Drive	94-2577
2	Push-On Speed Nut	3290-320
3	Chute Control Grip	40-8230
4	Upper Handle Assembly (Incl. ref.	95-2669
	Upper Handle Assembly (Incl. Ref.	94-2794
5	Arm-Clutch Cable	55-9100
6	Screw-Button Hd.	3274-31
7	Spacer-Control Bar	55-9340
8	Nut-Cap	32111-8
9	MUTTER	3296-42
10	Nyliner	256-249
11	Screw-Hex. Hd.	321-13
12	Support-Chute Crank	55-9090
13	Washer	3-7501
14	Machine Screw-Hex Hd.	61-8640
15	Screw-Handle	17-9424
16	Cover-Spring	55-9390
17	Cable-Clutch	55-9321
18	Adjuster-Clutch Cable	55-9380
19	Spring-Extension	55-9270
20	Bolt-Eye	55-9420
21	Capscrew	322-9
22	Capscrew	322-3
23	MUTTER	3296-29
24	Handle-Lower (Model 38180)	55-9121
	Handle-Lower	55-9120
25	Rod-Chute Crank	55-9140
26	Spring-Compression	55-9440
27	Washer-Rubber	55-9670
28	Bar-Control	55-9130
