> Roth / TORO > Hand operated > Snowthrower > Two stage > 3521 > 621/38035 > 6000001 > Handle Assy.

Spare Parts Lists for Toro Roth / TORO Handle Assy.

pos.	decription	spare part number
	Bracket Chute Control Mounting (Incl. Ref. 4 & 37)	6-3069

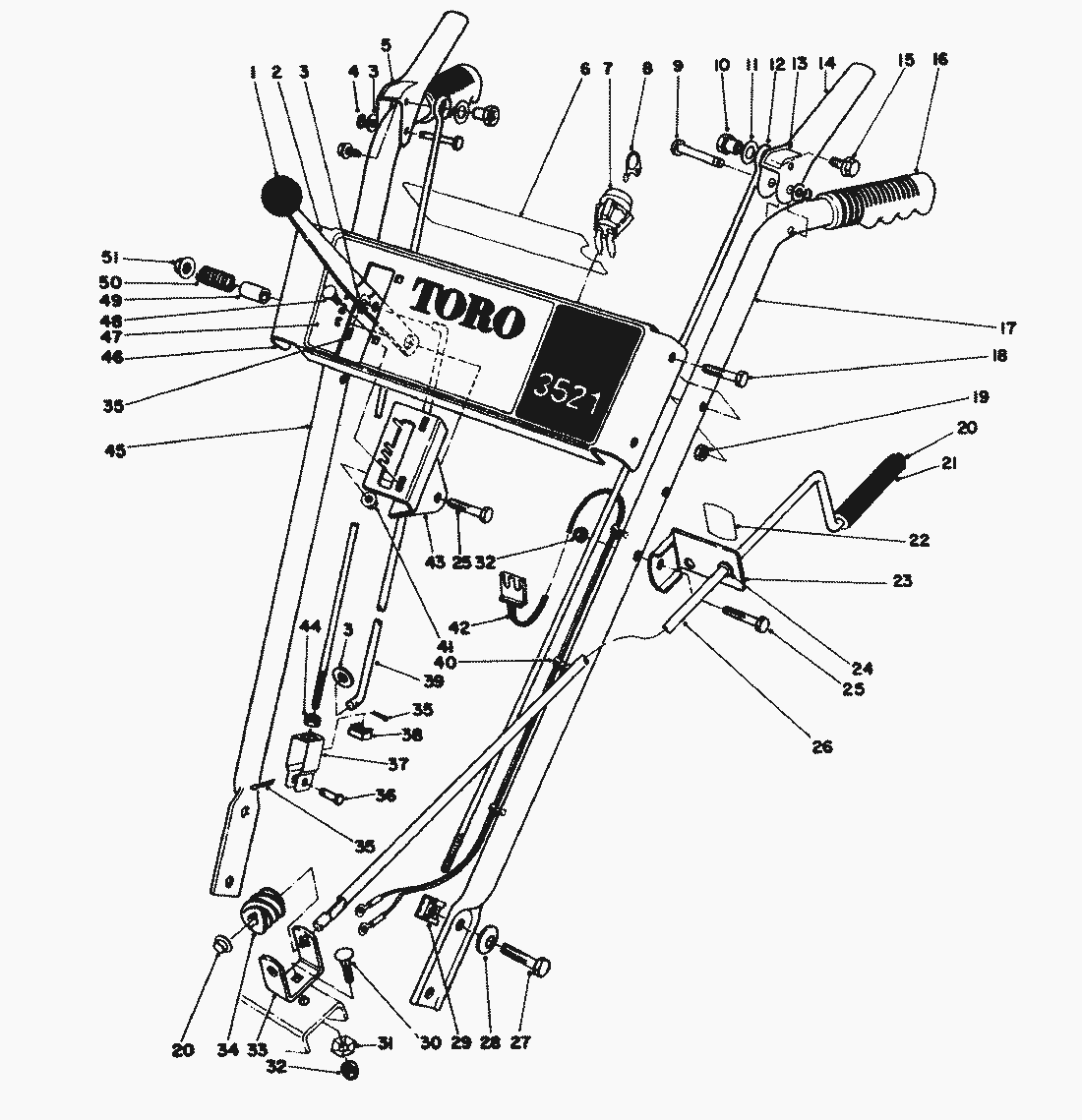

spare parts list

pos.	decription	spare part number
1	Knob	233-21
2	Speed Selector	37-8820
3	Washer	3256-23
4	Ring-Clip	32151-73
5	Decal-Auger Drive	52-5650
6	Decal-Escutcheon Back	54-9760
7	Switch	40-5940
8	Keys	33-2010
9	Pin-Control Lever	52-5600
10	Post-Linkage Mounting	474990
11	Flat Washer	3256-24
12	Link-Upper	52-5590
13	Decal-Wheel Drive	52-5630
14	Handle-Control	52-5580
15	Hex Flange Capscrew	3234-13
16	Grip	37-9110
17	Handle-Left	52-5570
18	Capscrew	321-37
19	Lock Nut	32152-4
20	Push-On Speed Nut	3290-320
21	Chute Control Grip	40-8230
22	Decal Chute Direction	29-6370
24	Nyliner	256-249
25	Capscrew	322-7
26	Chute Control Rod	40-8270
27	Hex Hd. Capscrew	322-2
28	Washer-Belleville	3290-456
29	Retained Nut	3290-196
30	Carriage Bolt	3230-2
31	Pyramidal Washer	3290-238
32	MUTTER	3296-29
33	Bracket-Chute Worm	40-8280
34	Worm Gear	40-8250
35	Pin-Cotter	32724
36	Clevis Pin	283-3
37	Clevis	39-3080
38	Retained Nut	32115-5
39	Rod-Speed Selector	39-7570
40	Wire Mount	17-9120
41	Flange Locknut	32128-32
42	Wire Harness	43-7390
43	Mount-Speed Selector	39-1280
44	Jam Nut	3218-1
45	Handle-Right	52-5560
46	Panel-Escutcheon	43-7360
47	Decal-3521	53-7630
48	Carriage Bolt	3229-22
49	Spacer-Speed Selector	40-8130
50	Spring	37-9150
51	Flange Nut	32128-13
