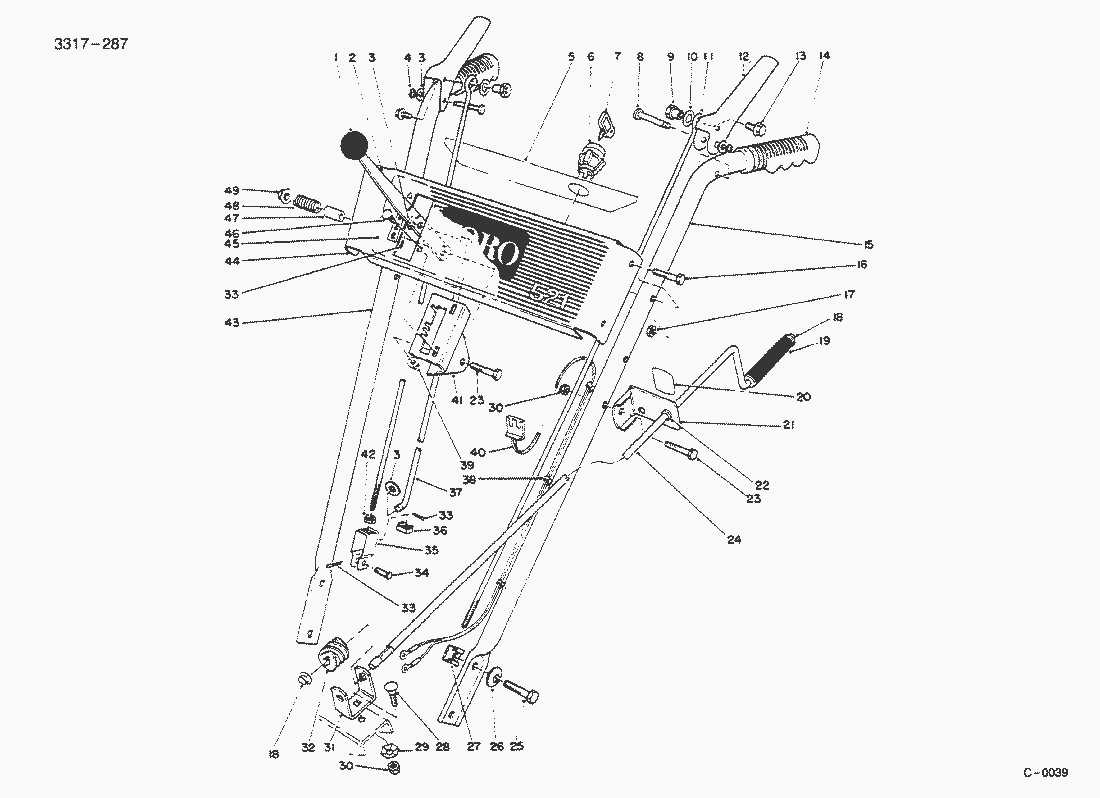

Spare Parts Lists for Toro Roth / TORO Handle Assy.

pos.	decription	spare part number
1	Knob	233-21
2	Speed Selector	37-8820
3	Washer	3256-23
4	Ring-Clip	32151-73
5	Decal-Escutcheon Back (Model 38052)	66-6830
	Decal-Escutcheon Back (Model 38054)	66-6880
6	Switch	40-5940
7	Key-Ignition	63-8360
8	Pin-Control Lever	52-5600
9	Post-Linkage Mounting	47-4990
10	Flat Washer	3256-24
11	Link-Upper	52-5590
12	Handle-Control	63-3640
13	Hex Flange Capscrew	3234-13
14	Grip-Handle	74-1360
15	Handle-Left (Model 38072)	52-5571
	Handle-Left	52-5570
16	Hex. Hd. Capscrew	321-9
17	MUTTER	3296-42
18	Push-On Speed Nut	3290-320
19	Chute Control Grip	40-8230
20	Decal-Chute Direction	63-3510
21	Bracket-Chute Control (Incl. Ref.	12-7739
22	Nyliner	256-249
23	Capscrew	322-7
24	Chute Control Rod	40-8270
25	Hex Hd. Capscrew	322-2
26	Washer-Belleville	3290-456
27	Retained Nut	3290-196
28	Bolt-Carriage	3230-22
29	Pyramidal Washer	3290-238
30	MUTTER	3296-29
31	Bracket-Chute Worm	40-8280
32	Worm Gear	40-8250
33	Pin-Cotter	3272-4
34	Clevis Pin	283-3
35	Clevis	39-3080
36	Retained Nut	32115-5
37	Rod-Speed Selector	39-7570
38	Wire Mount	17-9120
39	Flange Locknut	32128-33
40	Wire Harness	43-7390
41	Mount-Speed Selector	39-1280
42	Jam Nut	3218-1
