Spare Parts Lists for Toro Roth / TORO Handle Assy.

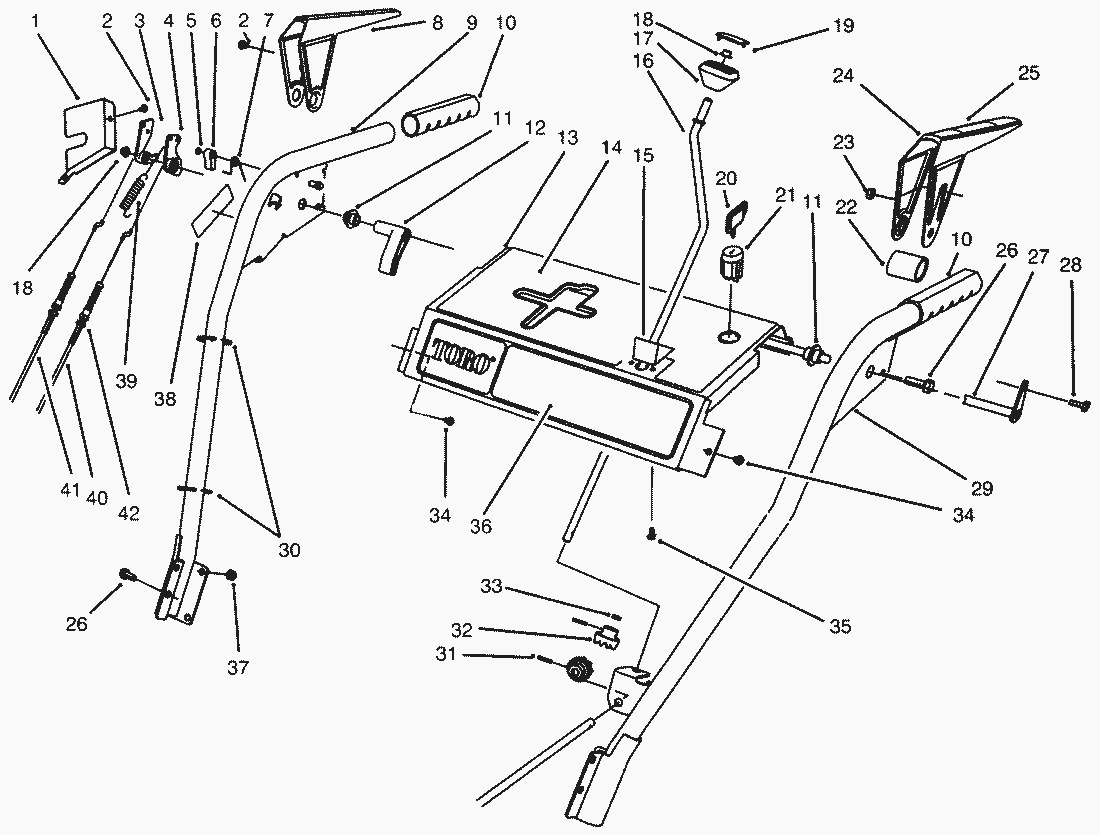

spare parts list

pos.	decription	spare part number
1	Cover-Lever Lock	63-2170
2	Screw	2210-250
3	Tang-Locking	62-0300
4	Cam-Release	62-0290
5	Ring-Retaining	32151-66
6	Latch-Lock	62-0280
7	Spring-Torsion	B-2910
8	Lever-Impeller	62-1050
9	Handle-R.H.	62-1380
10	Handlegrip	66-7850
11	Bushing-Lever	62-1070
12	Lever-Trip	62-1640
13	Panel-Control	66-81
14	Decal-Panel Top (Model No. 38580 Only)	66-6850
	Decal-Panel Top (Model No. 38543 Only)	94-2578
15	Plate-Guide	62-1490
16	Rod-Chute Crank	63-2160
17	Knob-Chute Control	62-1320
18	Push-On Speed Nut	3290-320
19	Cover-Knob	62-1520
20	Key-Ignition	63-8360
21	Switch	40-5940
22	Spacer-Traction Lever	63-3380
23	Nut	3296-2
24	Lever-Traction	62-1060
25	Decal-Lever (Model No. 38510)	63-3050
26	Screw-Hex. Washer Hd.	3234-7
27	Rod-Cross	63-2030
28	Screw	3290-359
29	Handle-L.H.	66-8090
30	Tie Wrap	3290-378
31	Roll Pin	32121-50
32	Gear-Universal	62-1460
33	Washer-Rubber	62-1230
34	Self Tapping Screw	32104-76
35	Screw-Hex Flange Hd.	32104-118
36	Decal-Panel Front	63-2510
37	Nut-Lock	3296-47
38	Decal-Warning (Model No. 38580 Only)	66-6860
	Decal-Warning (Model No. 38543 Only)	94-2575
39	Spring-Extension	88-0810
40	Cable-Traction	63-2710
41	Cable-Impeller	63-2700
42	MUTTER	3296-42
	Harness-Wire	63-3420
	Loose Parts Kit	12-8949
