> Roth / TORO > Hand operated > Snowthrower > Two stage > 828 PowerShift > 629/38545 > 8000001 > Handle Assy.

Spare Parts Lists for Toro Roth / TORO Handle Assy.

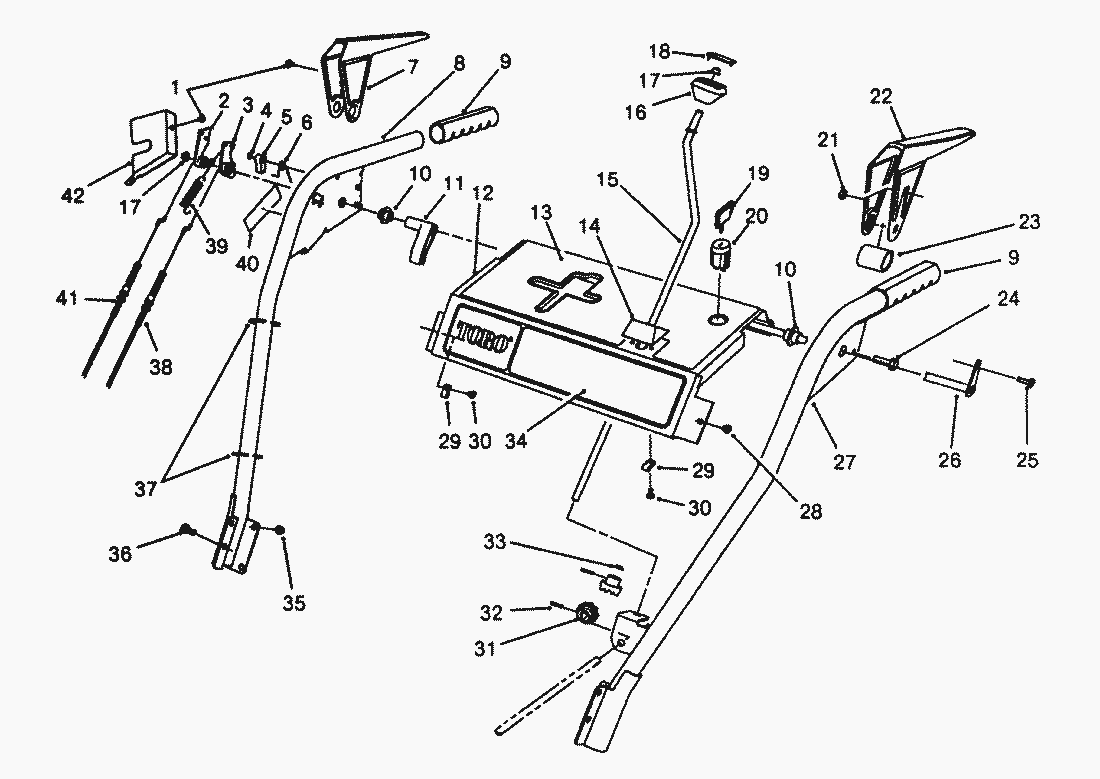

spare parts list

pos.	decription	spare part number
1	Screw	2210-250
2	Tang-Locking	62-0300
3	Cam-Release	62-0290
4	Ring-Retaining	32151-66
5	Latch-Lock	62-0280
6	Spring-Torsion	63-2910
7	Lever-Impeller	62-1050
8	Handle-R.H.	62-1381
9	Handlegrip	62-1480
10	Bushing-Lever	62-1070
11	Lever-Trip	62-1640
12	Panel-Control	63-2000
13	Decal-Panel Top (Model No. 38505)	63-2550
14	Plate-Guide	62-1490
15	Rod-Chute Crank	63-2160
16	Knob-Chute Control	62-1320
17	Push-On Speed Nut	3290-320
18	Cover-Knob	62-1520
19	Key-Switch	62-7770
20	Switch	40-5940
21	Nut	3296-2
22	Lever-Traction	62-1060
23	Spacer-Traction Lever	63-3380
24	Screw-Hex Flange Hd.	3234-29
25	Screw	3290-359
26	Rod-Cross	63-2030
27	Handle-L.H.	62-1391
28	Self Tapping Screw	32104-76
29	Clip-Wire	2412-101
30	Screw-Hex Flange Hd.	32104-118
31	Gear-Universal	62-1460
32	Roll Pin	32121-50
33	Washer-Rubber	62-1230
34	Decal-Panel Front	63-2520
35	Nut-Lock	3296-47
36	Screw-Hex. Washer Hd.	3234-7
37	Tie Wrap	3290-378
38	Cable-Traction	63-2710
39	Spring-Extension	63-2720
40	Decal-Adjustment (Model No. 38505)	63-3470
41	Cable-Impeller	63-2700
42	Cover-Lever Lock	63-2170
	Harness-Wire	63-3430
