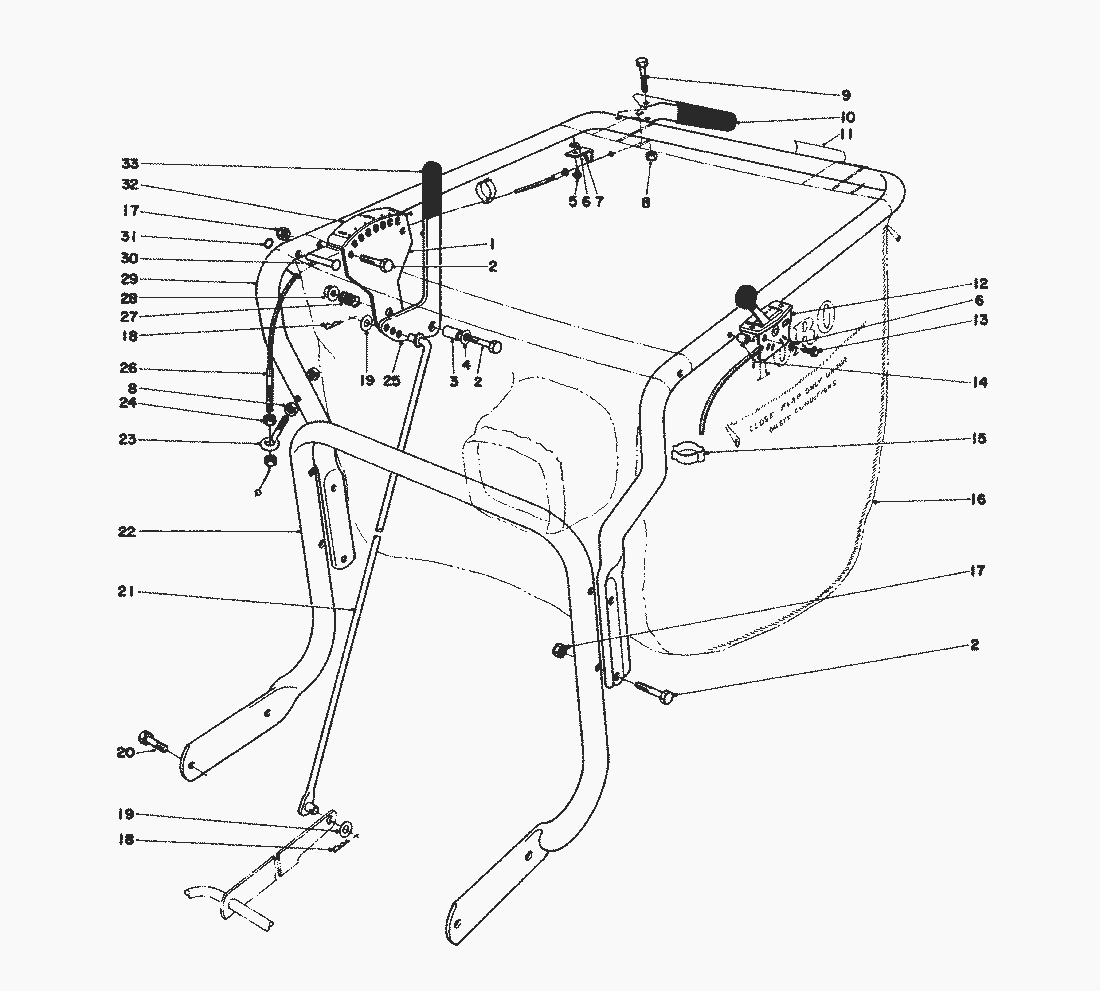

Handle Assy. (Model 62923)
Spare Parts Lists for Toro Roth / TORO Handle Assy. (Model 62923)
pos.
decription
spare part number
1
Adjustment Bracket
20-5820
2
Capscrew
322-7
3
Spacer-Adjustment
20-5650
4
Flat Washer
3256-3
5
Screw Hex Hd. Washer Face
32104-60
6
Lockwasher
3255-17
7
Clip-Retaining
20-8780
8
Locknut
321524
9
Capscrew
321-10
10
Lever
25-7880
11
Decal-Traction Control
20-8700
12
Throttle Control
23-3610
13
Screw Self Tapping
32104-72
14
Spacer
23-3620
15
Clip Bodine
241247
16
Bag-Vacuum
20-6090
17
Locknut
32152-1
18
Hair Pin Cotter
3290-250
19
Flat Washer
3256-24
20
Capscrew
3224
21
Connector Rod
23-3420
22
Lower Handle
20-5810
23
Eye Bolt
3290-362
24
Nut
32149-5
25
Handle Height Adjustment
23-3410
26
Bodine Cable
25-7860
27
Spring-Height Adjustment
20-6110
28
Flange Nut
32128-13
29
Handle Upper
23-3570
30
Rivet
3263-9
31
Retaining Ring
32151-3
32
Decal-Height Adjustment
20-6880
33
Grip Handle
3-7877
