Spare Parts Lists for Toro Roth / TORO Housing & Chute Assy.




pos.decriptionspare part number
62-0721

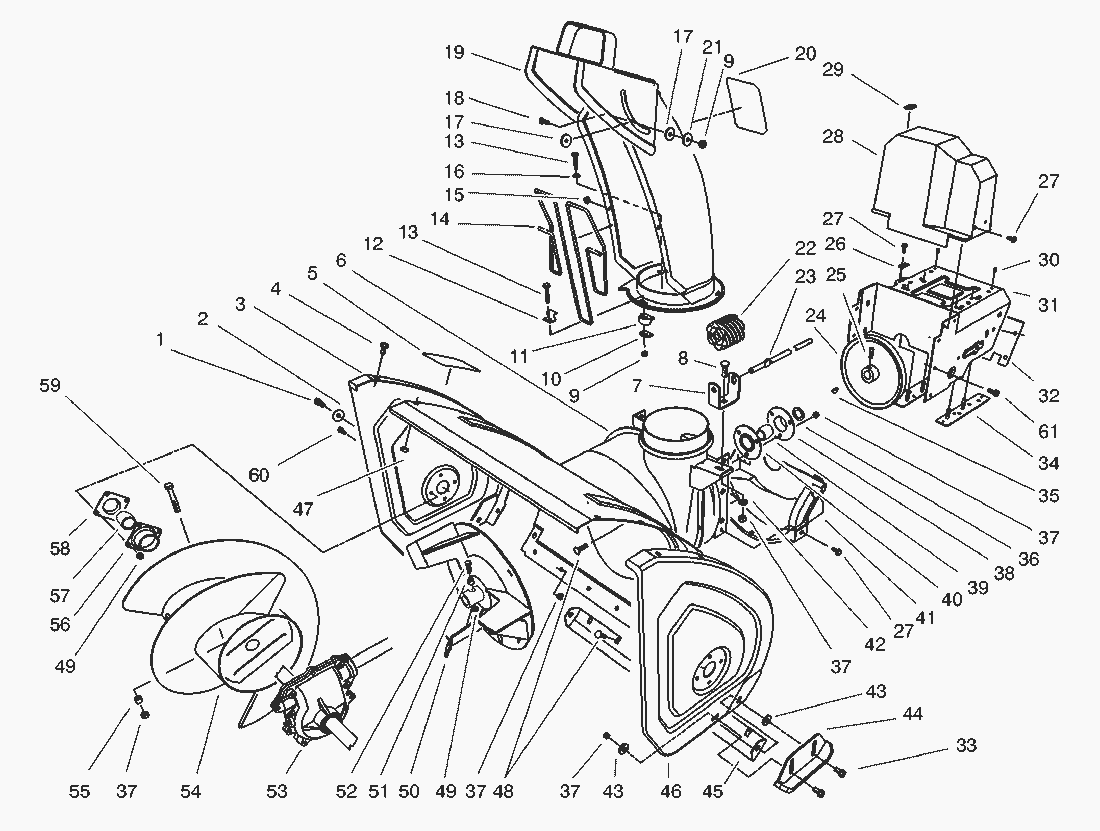

spare parts list


pos.decriptionspare part number
1Hex Screw323-4
2Flat Washer3-0750
3Plate-Side R.H.66-7821
4Screw-Hex Flange Hd.3234-28
5Decal-Auger Warning53-7670
Decal-Danger Auger Model No. 3854394-2568
7Bracket-Gear63-2180
8Carriage Bolt3230-2
9Nut3296-2
10Plate-Chute Retainer63-2670
11Retainer-Chute62-1430
12Bracket-Chute Guard63-3130
13Screw-Machine3274-13
14Guard-Chute63-3020
15Pushnuts3290-326
16Washer3256-14
17Washer-Plastic63-2900
18Screw32122-32
19Chute Assembly62-0840
20Deacl-Danger Chute Model 3854094-8079
Decal-Danger Chute Model 3854394-2559
21Washer3256-61
22Gear-Worm62-0820
23Rod-Chute Gear62-1720
24Pulley-Impeller62-1300
25Set Screw3242-4
26Retainer-Cable63-2300
27Screw Thread Forming32144-4
28Cover-Belt (Upper)63-2080
