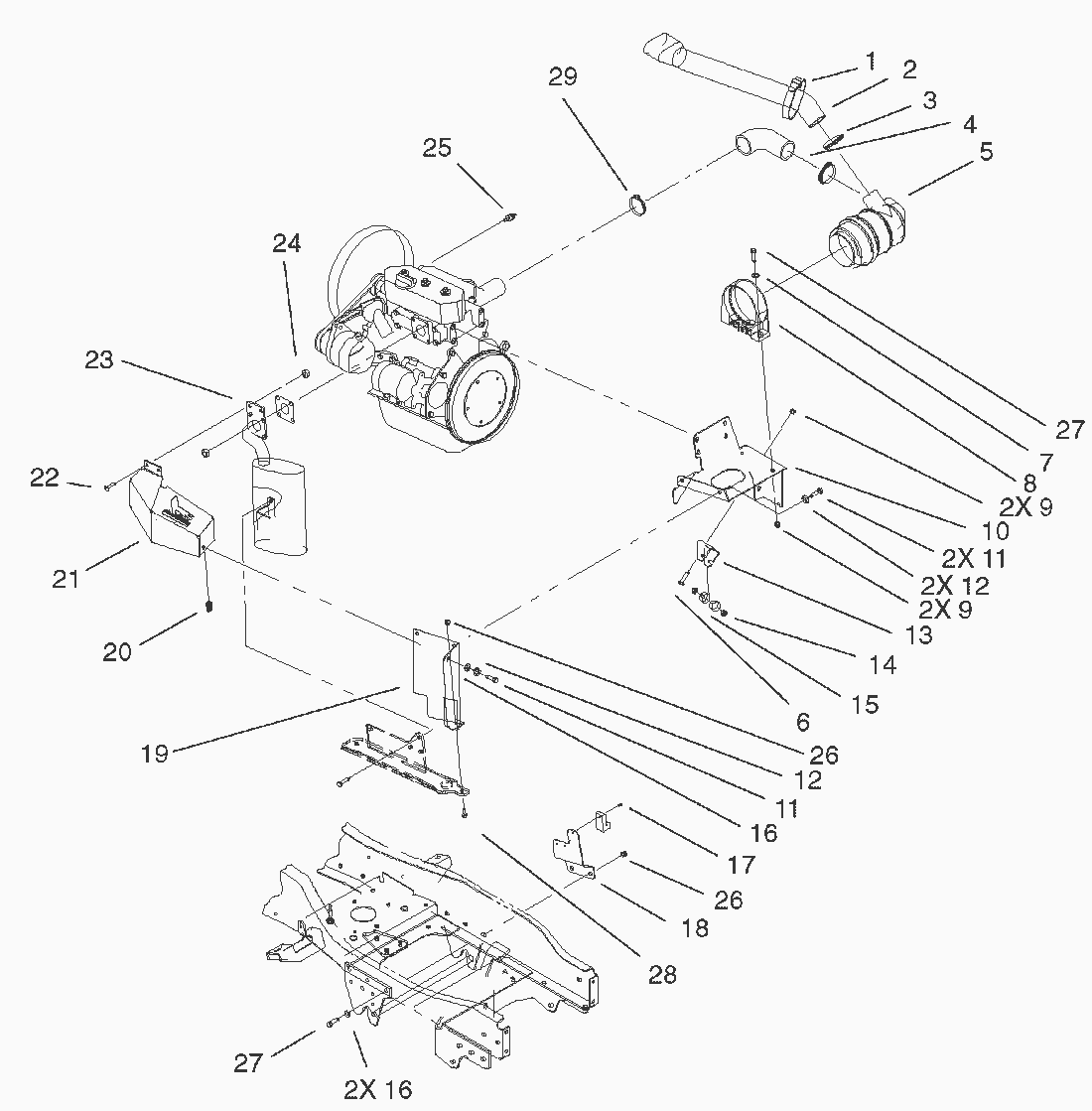

Spare Parts Lists for Toro Roth / TORO Liquid Cooled Diesel Engine Assy. (Cont.)

Lists

pos.	decription	spare part number
1	Strap-Tie Down	3290-379
2	Hose-Air Cleaner	98-1628
3	Hose Clamp	2412-92
4	Hose-Air Cleaner Outlet	95-4265
5	Air Cleaner Assy	93-2190
52	Filter	93-2195
53	Cover ASM	94-3652
54	Valve-Vacuator	94-1414
55	Pipe Plug	285-17
6	Hex Hd. Capscrew	322-5
7	Washer	3256-23
8	Bracket-Mounting, Air Cleaner	95-5806
9	MUTTER	3296-29
10	Guard-Flywheel	95-3891-03
11	Capscrew	321-4
12	Lockwasher	3253-3
13	Brkt-Clutch Anchor	95-4067-03
14	MUTTER	3296-42
15	Bumper-Rubber	240-14
16	Washer	3256-22
17	SCHRAUBE	12-5450
18	Bracket-Relay	95-4239-03
19	Heat Shield Wa	98-1634-03
20	Nut-Speed	107069
21	Heat Shield Wa	98-1638-03
22	Carriage Bolt	3229-1
23	Muffler	94-7958
24	Lock Nut	32152-4
25	Temp. Sender, Ds	94-7621
26	Locknut	3296-8
27	Capscrew	322-6
28	Screw-Hex Hd.	321-6
29	Hose Clamp	2412-130
