> Roth / TORO > Hand operated > Snowthrower > Single stage > CR 20 R > 609/38110 C > 7000001 > Lower Frame Assy.

Spare Parts Lists for Toro Roth / TORO Lower Frame Assy.

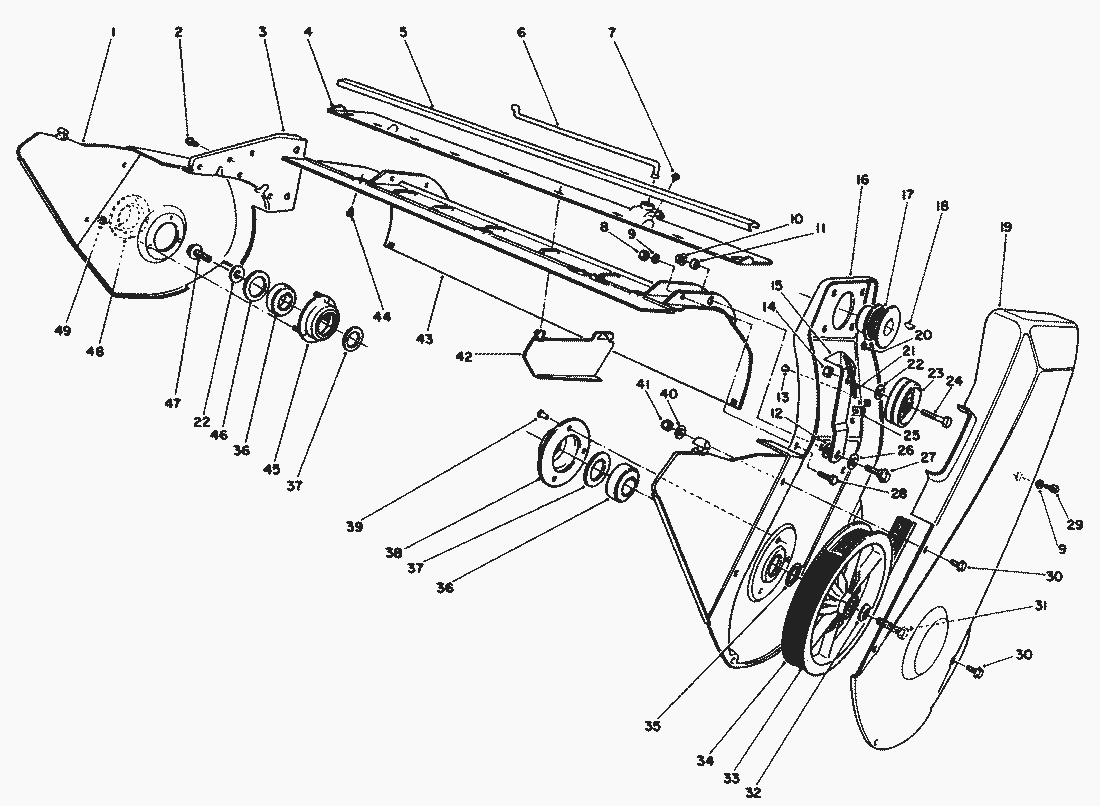

spare parts list

pos.	decription	spare part number
1	Vane-Outside	52-7080
2	Screw Thread Forming	32144-4
3	Side Plate-Right	52-9100
4	Vane Mount	41-8480
5	Moulding	54-9990
6	Linkage-Vane Adjustment	52-7090
7	Self Tapping Screw	32104-77
8	Lock Nut	32152-4
9	Washer	3256-22
10	Nut-Flange	32128-25
11	Spacer	51-2950
12	Washer	5-4460
13	Eyelet	29-7430
14	Locknut	3296-39
15	Idler Arm	26-8990
16	Side Plate Left	33-2130
17	Engine Pulley	25-6400
18	Woodruff Key	3257-3
19	Cover-Drive	54-9940
20	Screw-Set	3245-41
21	Idler Spring	26-9730
22	Flat Washer	3256-24
23	Idler Pulley	25-5880
24	Capscrew	323-9
25	Nut-Retained	3290-225
26	Washer	25-5640
27	Shoulder Screw	27-0410
28	Capscrew	321-4
29	Screw-Cap Hex. Hd.	3235-20
30	Screw	32105-2
31	Screw-Cap Hex Hd.	321-30
32	Washer-Belleville	3290-456
33	Belt	25-6430
34	Pulley-Rotor	60-9320
35	Washer	26-0970
36	Ball Bearing	38-7820
37	Washer-Thrust	52-7280
38	Bearing Flange	38-8620
39	Rivet	3292-8
40	Washer	3256-61
41	Nut	3296-2
42	Vane-Center	52-7060
43	Housing	52-7171
44	Self Tapping Screw	32144-34
45	Bearing Flange	52-9110
46	Washer-Rubber	52-7270
47	Screw-Cap Hex Flange	3234-25
48	Retainer-Bearing	52-7290
49	Nut-Cap	32111-14
