> Roth / TORO > Hand operated > Snowthrower > Single stage > S 620 > 609/38162 > 6000001 > Lower Main Frame Assy.

Spare Parts Lists for Toro Roth / TORO Lower Main Frame Assy.

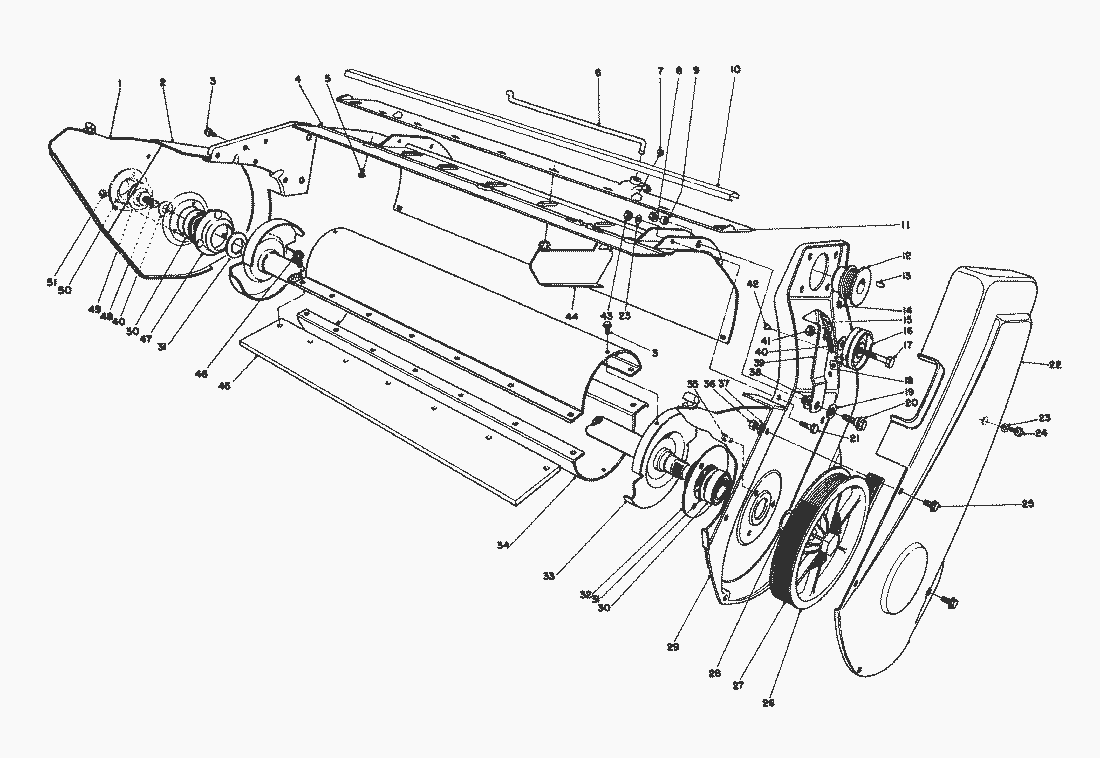

spare parts list

pos.	decription	spare part number
1	Vane-Outside	52-7080
2	Side Plate-Right	52-9100
3	Screw Thread Forming	32144-4
4	Housing	52-7170
5	Self Tapping Screw	32144-34
6	Linkage-Vane Adjustment	52-7090
7	Self Tapping Screw	32104-77
8	Nut-Flange	32128-25
9	Spacer	51-2950
10	Moulding-Warning	42-1650
11	Vane Mount	41-8480
12	Engine Pulley	25-6400
13	Woodruff Key	3257-3
14	Screw-Set Socket	3245-38
15	Idler Spring	26-9730
16	Idler Pulley	25-5880
17	Capscrew	323-9
18	Nut-Retained	3290-225
19	Washer	25-5640
20	Shoulder Screw	27-0410
21	SCHRAUBE	321-3
22	Drive Cover	52-7110
23	Washer	3256-22
24	Screw-Cap Hex. Hd.	3235-20
25	Screw	32105-2
26	Rotor Pulley	49-1530
27	Belt	25-6430
28	Washer	26-0970
29	Side Plate Left	33-2130
30	Ball Bearing	38-7820
31	Washer-Thrust	52-7280
32	Bearing Flange	38-8620
33	Drive Shaft 8 End Cap	52-9120
34	Shell Rotor	23-3190
35	Rivet	3292-8
36	Nut	3296-2
37	Washer	3256-61
38	Washer	5-4460
39	Idler Arm	26-8990
40	Flat Washer	3256-24
41	Locknut	3296-39
42	Eyelet	29-7430
43	Lock Nut	32152-4
44	Vane-Center	52-7060
45	Rotor Blade	23-3730
46	Screw	37-0370
47	Bearing Flange	52-9110
48	Screw-Cap Hex Flange	3234-25
49	Washer-Rubber	52-7270
50	Retainer-Bearing	52-7290
51	Nut-Cap	32111-14
