back to
>
Roth / TORO
>
Hand operated
>
Snowthrower
>
Single stage
>
S 620
>
609/38162
>
1000001
>

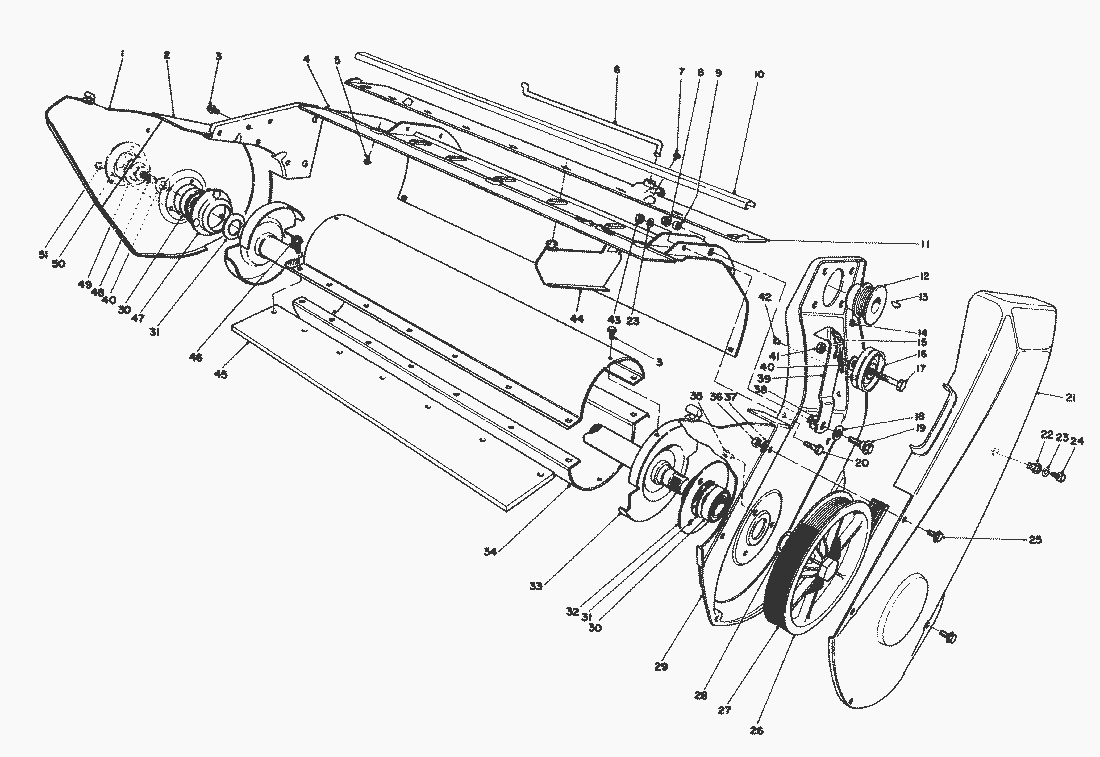

Lower Main Frame Assy. (Cont.)
Spare Parts Lists for Toro Roth / TORO Lower Main Frame Assy. (Cont.)
pos.
decription
spare part number
52-9090
pos.
decription
spare part number
43
MUTTER
3296-42
44
Vane-Center
52-7060
45
Rotor Blade
23-3730
46
Screw
37-0370
47
Bearing Flange
52-9110
48
Screw-Cap Hex Flange
3234-25
49
Washer-Rubber
52-7270
50
Retainer-Bearing
52-7290
51
STOPMUTTER
3296-56
