> Roth / TORO > Hand operated > Snowthrower > Two stage > 824 XL > 612/38084 > 8900001 > Lower Traction Assy.

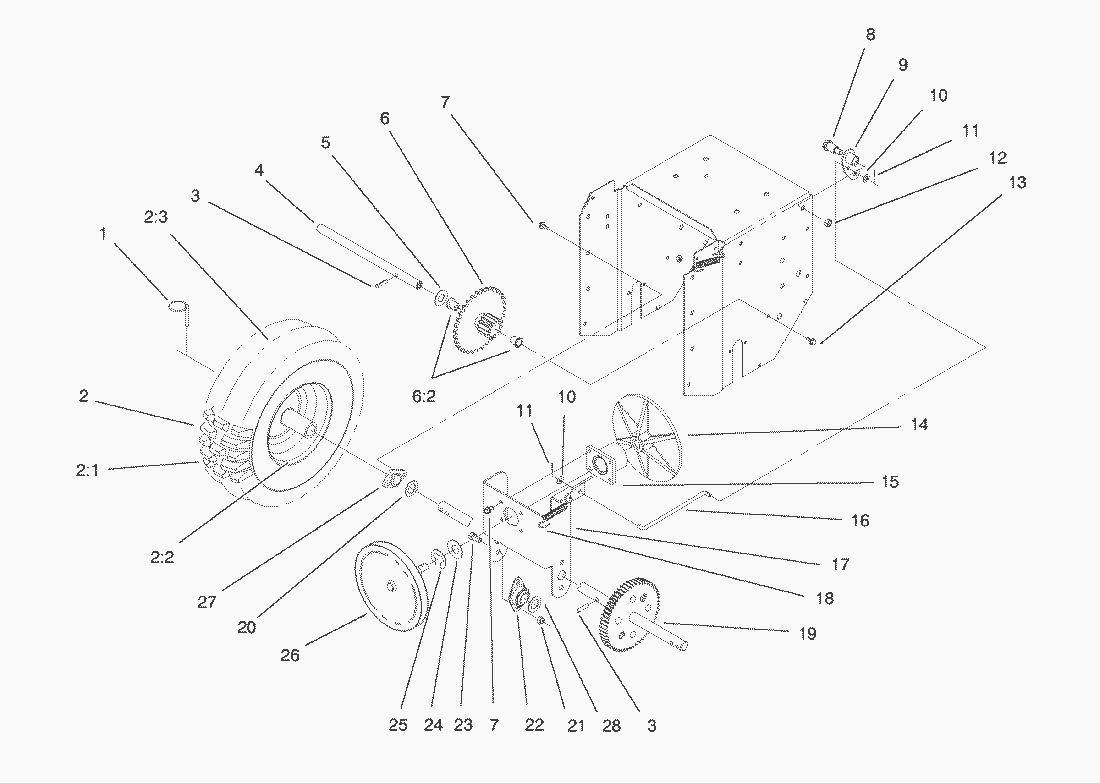

Spare Parts Lists for Toro Roth / TORO Lower Traction Assy.




spare parts list


pos.decriptionspare part number
1Klip Pin3290-243
2
21Tire231-120
22Rim241-131
23Tube232-46
3Roll Pin32121-9
4Shaft-Intermediate94-8814
5Flatwasher7-3590
6ASM-Gear & Bushing94-8856
62Bushing94-8871
7Screw Thread Forming32144-4
8Shoulder Bolt94-8859
9Bellcrank-Hub94-8822
10Washer3256-67
11Pin-Cotter3272-4
12Nut-Lock3296-59
13Screw-Wash. Hd., Tap.32144-14
14Plate-Friction94-8857
15ASM-Bearing/Hub94-8845
16Rod-Traction (Inner)94-8818
17Frame-Friction Plate94-8833
18Spring-Engage94-8813
19Axle94-8855
20Thrust Washer3-8664
21Locknut3296-39
22Bearing-Side Flange68-2970
23Hex Screw323-4
24Thrust Washer252-80
25Ring-Snap32151-103
26ASM-Pulley & Shaft94-8823
27Axle Bearing37-6850
28Washer-Thrust3-6498
