back to
>
Roth / TORO
>
Hand operated
>
Snowthrower
>
Single stage
>
CR 1000
>
603/38195
>
2000001
>

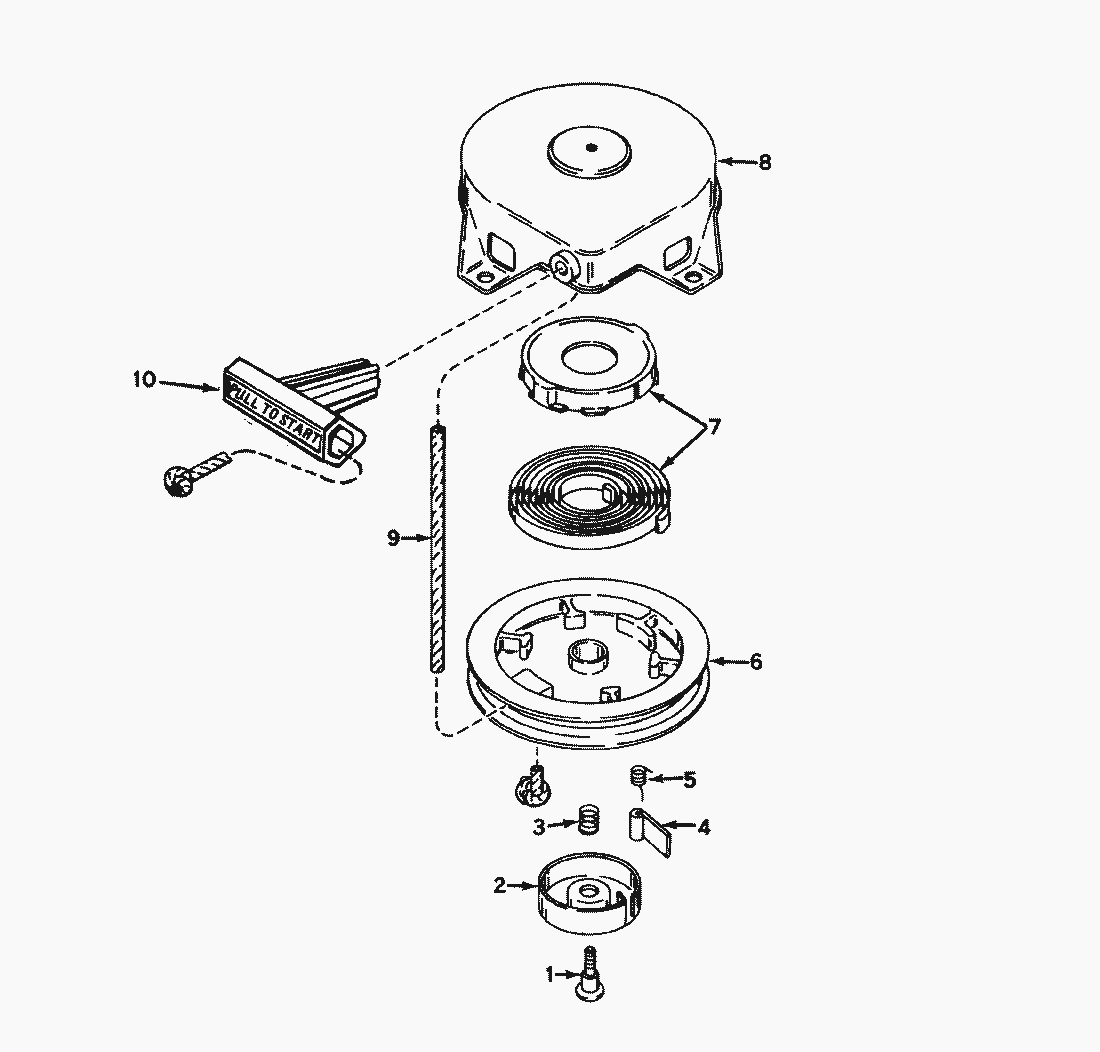

Recoil Starter No. 590537
Spare Parts Lists for Toro Roth / TORO Recoil Starter No. 590537
pos.
decription
spare part number
1
Screw, Retainer
590409A
2
Retainer, R.H:
590410
3
Spring, Brake
590411
4
Dog, Starter
590148
5
Spring, R.H. Dog
590412
6
Pulley
590413A
7
Spring & Keeper Assy.
590414
8
Housing Assy., Starter
590536
9
Rope, Starter
590535
10
Handle Assy., Starter
590452
