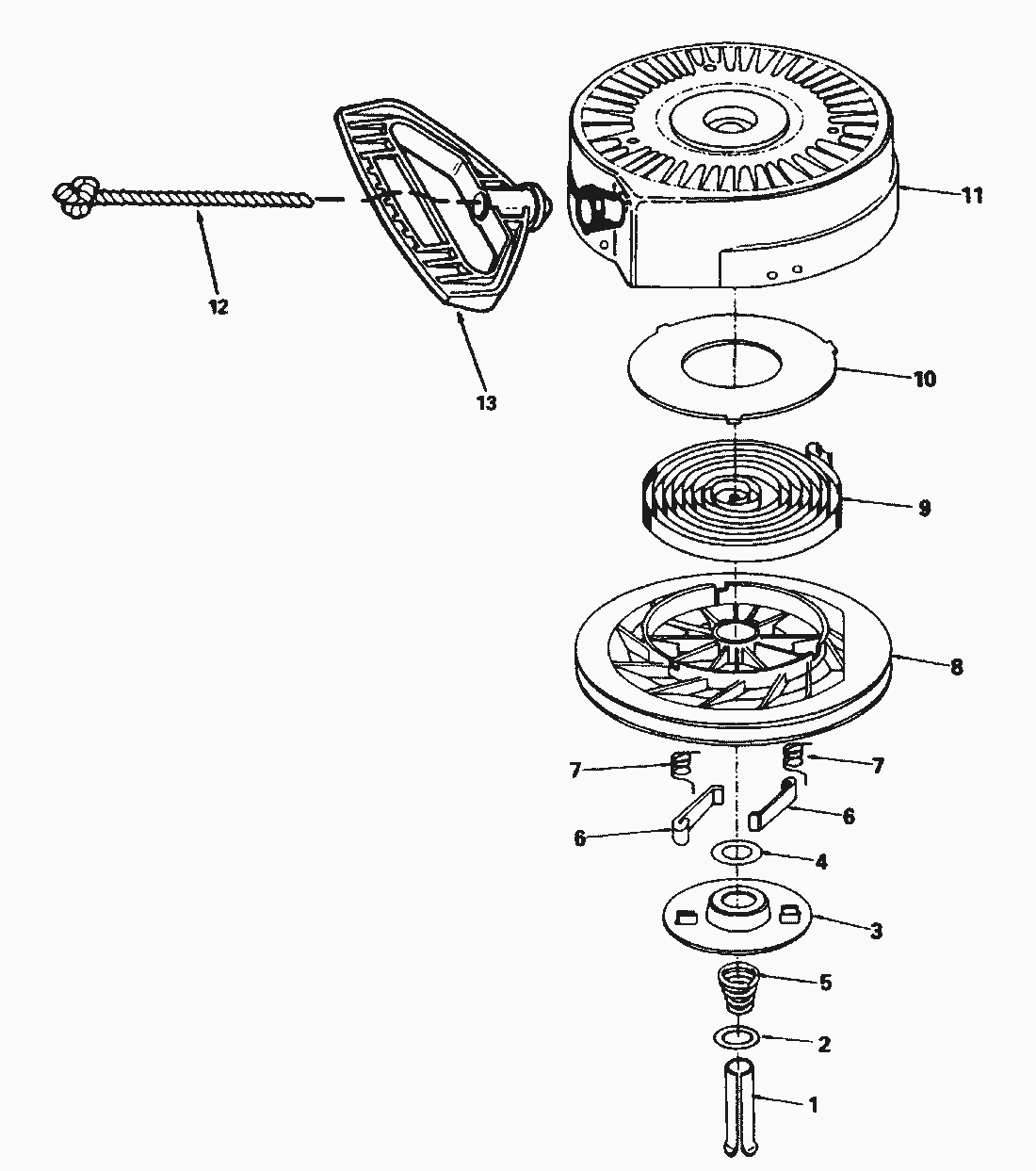

Recoil Starter No. 590646
Spare Parts Lists for Toro Roth / TORO Recoil Starter No. 590646
pos.
decription
spare part number
Starter-Rewind
590646
Pulley
590645A
590599A
pos.
decription
spare part number
2
Washer
590600
3
Retainer
590615
4
Washer
590601
5
Spring-Brake
590598
6
Dog-Starter
590616
7
Spring, Dog
590617
9
Spring-Rewind
590619
10
Cover-Spring
590620
11
Housing Assy.-Starter
590647
12
Rope, Starter
590535
13
Handle-Mitten Grip Starter
590574
