> Roth / TORO > Hand operated > Snowthrower > Single stage > CR 1000 > 603/38195 > 59000001 > Recoil Starter No. 590735

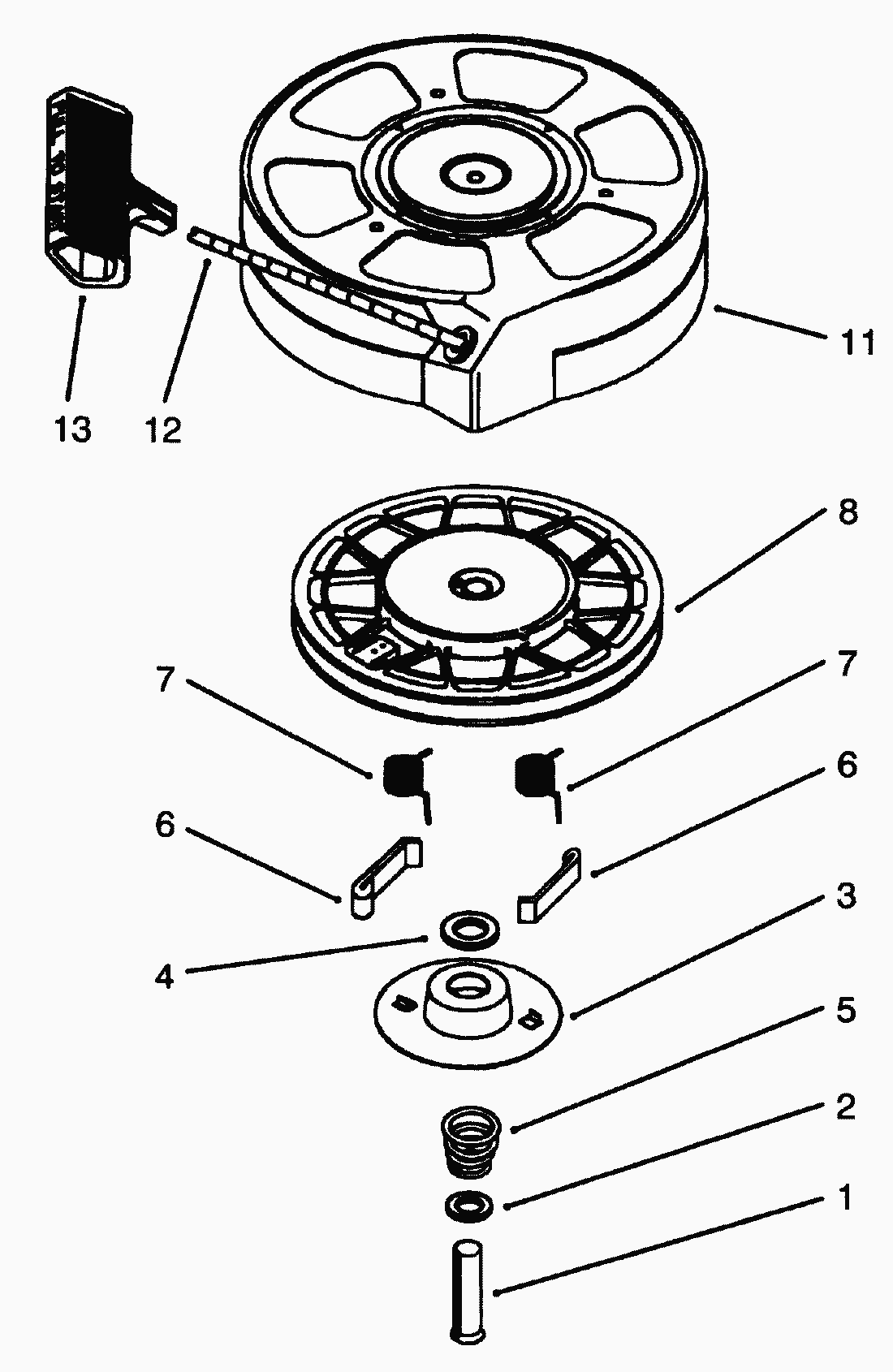

Spare Parts Lists for Toro Roth / TORO Recoil Starter No. 590735




pos.decriptionspare part number
590599A
spare parts list


pos.decriptionspare part number
2Washer590600
3Retainer590696
4Washer590601
5Brake Spring590697
6Starter Dog590698
7Dog Spring590699
8Pulley & Rewind Spring Assembly590709
11Starter Housing Assembly590703
12Rope, Starter590535
13Starter Handle590701
