> Roth / TORO > Hand operated > Snowthrower > Two stage > 1028 PowerShift > 635/38555 > 790000001 > Recoil Starter Tecumseh No. 590733

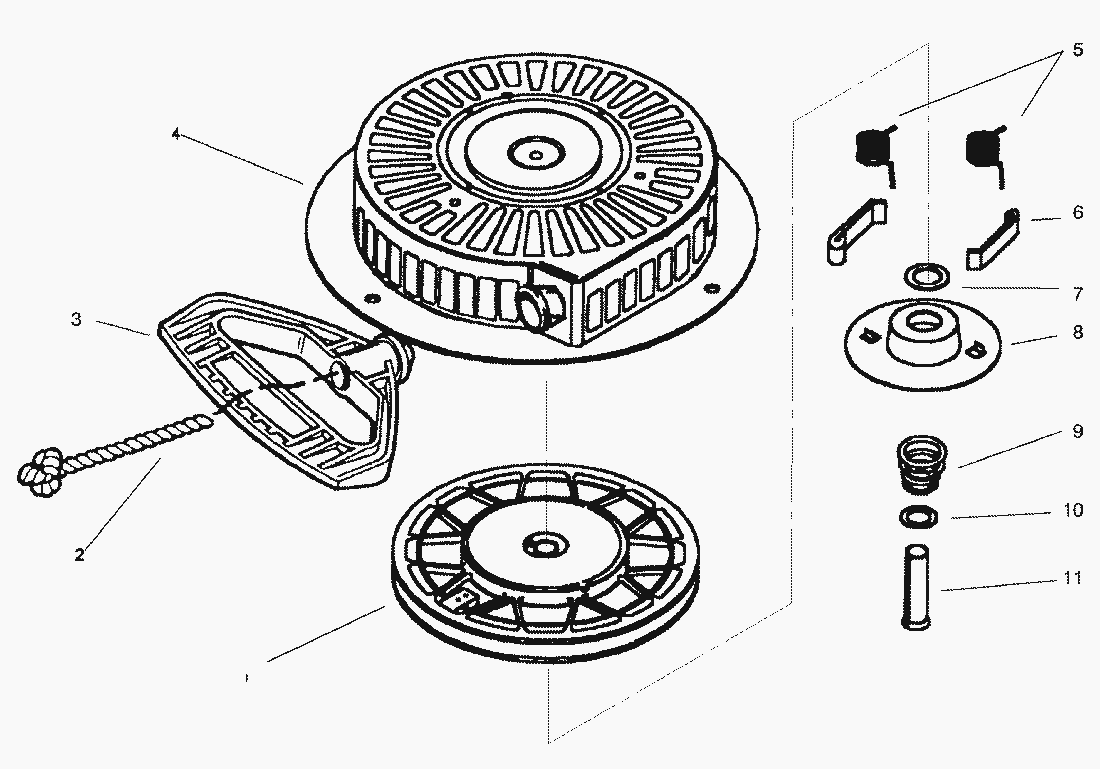

Spare Parts Lists for Toro Roth / TORO Recoil Starter Tecumseh No. 590733




pos.decriptionspare part number
590599A
spare parts list


pos.decriptionspare part number
1Pulley & Rewind Spring Assembly590709
2Rope, Starter590535
3Handle-Mitten Grip Starter590574
4Starter-Housing Asm590734
5Dog Spring590699
6Starter Dog590698
7Washer590601
8Retainer590696
9Brake Spring590697
10Washer590600
