> Roth / TORO > Hand operated > Snowthrower > Two stage > 824 PowerShift > 628/38540 > 7900001 > Recoil Starter Tecumseh No. 590733

Spare Parts Lists for Toro Roth / TORO Recoil Starter Tecumseh No. 590733




pos.decriptionspare part number
590599A

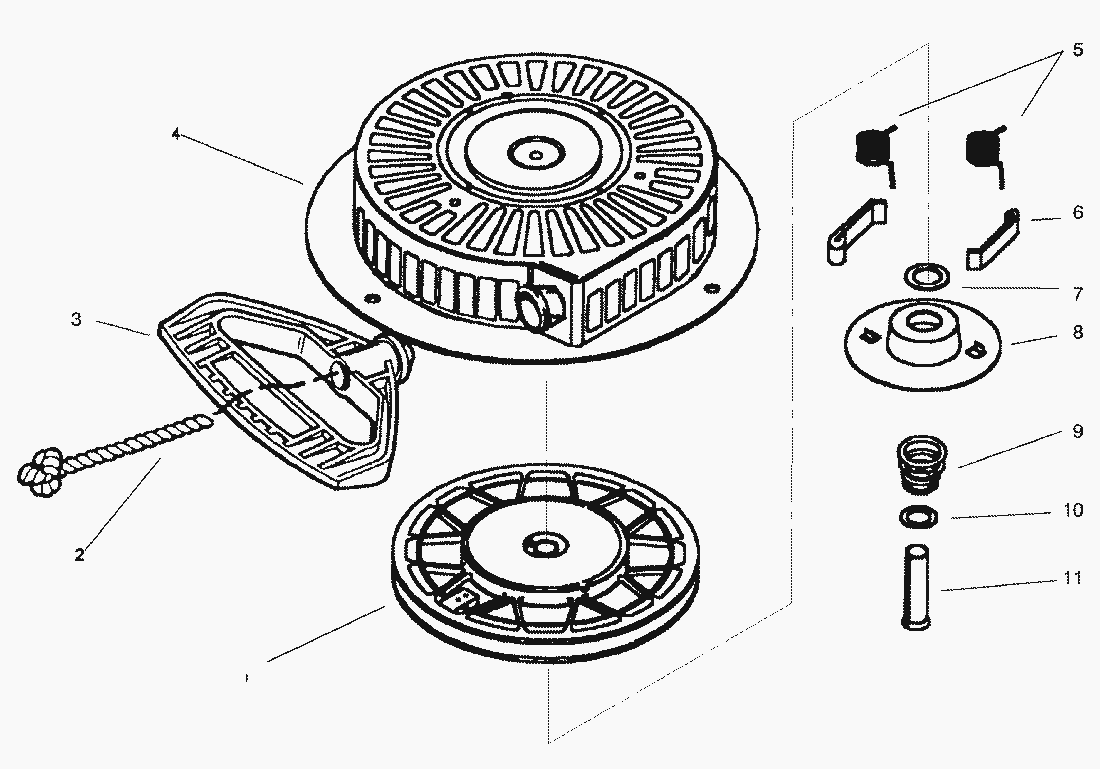

spare parts list


pos.decriptionspare part number
1Pulley & Rewind Spring Assembly590709
2Rope, Starter590535
3Handle-Mitten Grip Starter590574
4Starter Housing Asm590534
5Dog Spring590699
6Starter Dog590698
7Washer590601
8Retainer590676
9Brake Spring590697
10Washer590600
