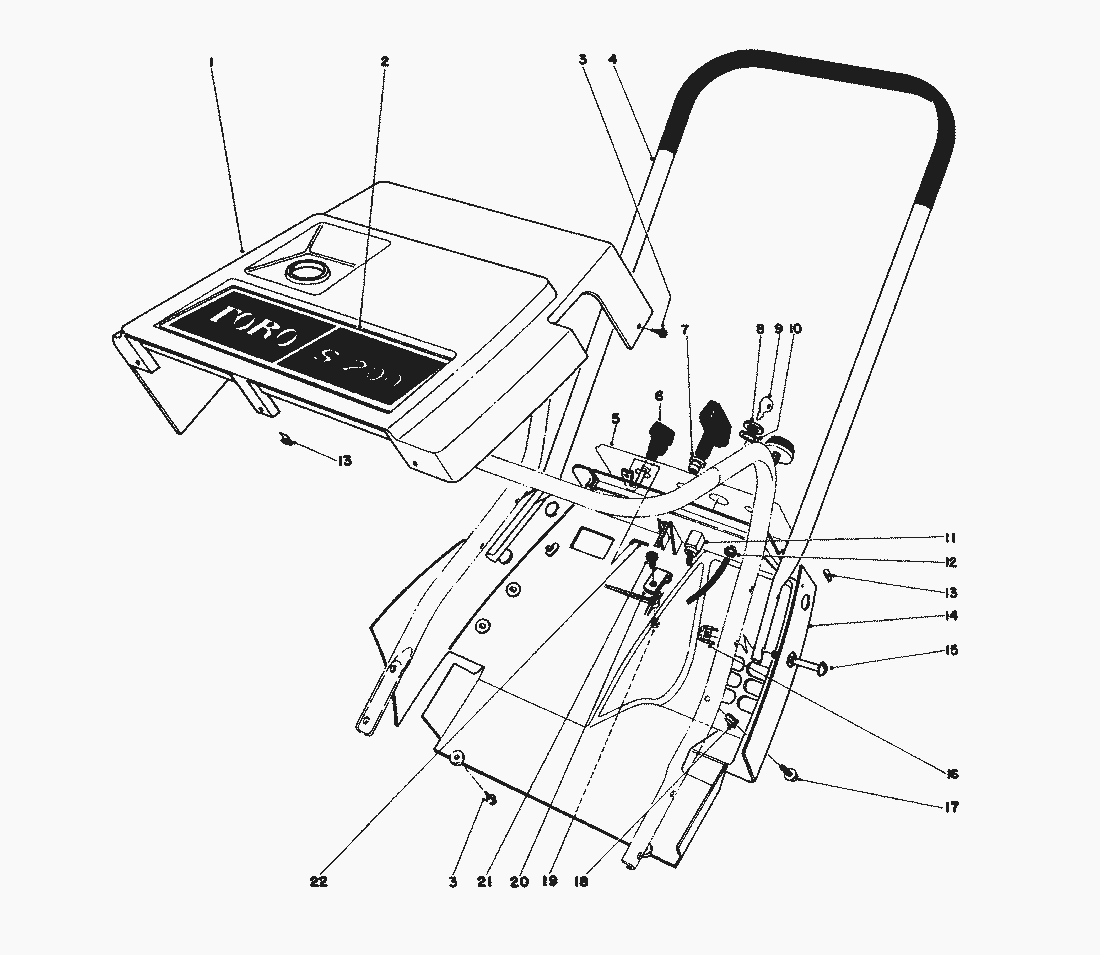

Spare Parts Lists for Toro Roth / TORO Shroud & Handle Assy.

pos.	decription	spare part number
1	Upper Shroud	39-0890
2	Decal-Toro	39-3290
3	Self Tapping Screw	32104-76
4	Upper Handle	23-4260
5	Decal-Control Panel	42-0730
6	Control Assembly Choke	39-0560
7	Guide-Starter Rope	23-7470
8	Hex Nut	218-461
9	Keys	33-2010
10	Lockwasher	3254-5
11	Switch	39-4650
12	Locknut	32149-2
13	Nut Tinnerman	3290-171
14	Lower Shroud	39-0870
15	Round Head Machine Screw	32140-100
16	Nut-Retained	3290-225
17	Self Tapping Screw	32144-34
18	Push Nut	3290-420
19	Nut	3296-2
20	Cable Clamp	2412-65
21	Screw	32105-2
22	Control Wire	39-8180
