Spare Parts Lists for Toro Roth / TORO Snow Cab Assy. No. 66-6200 (Optional)

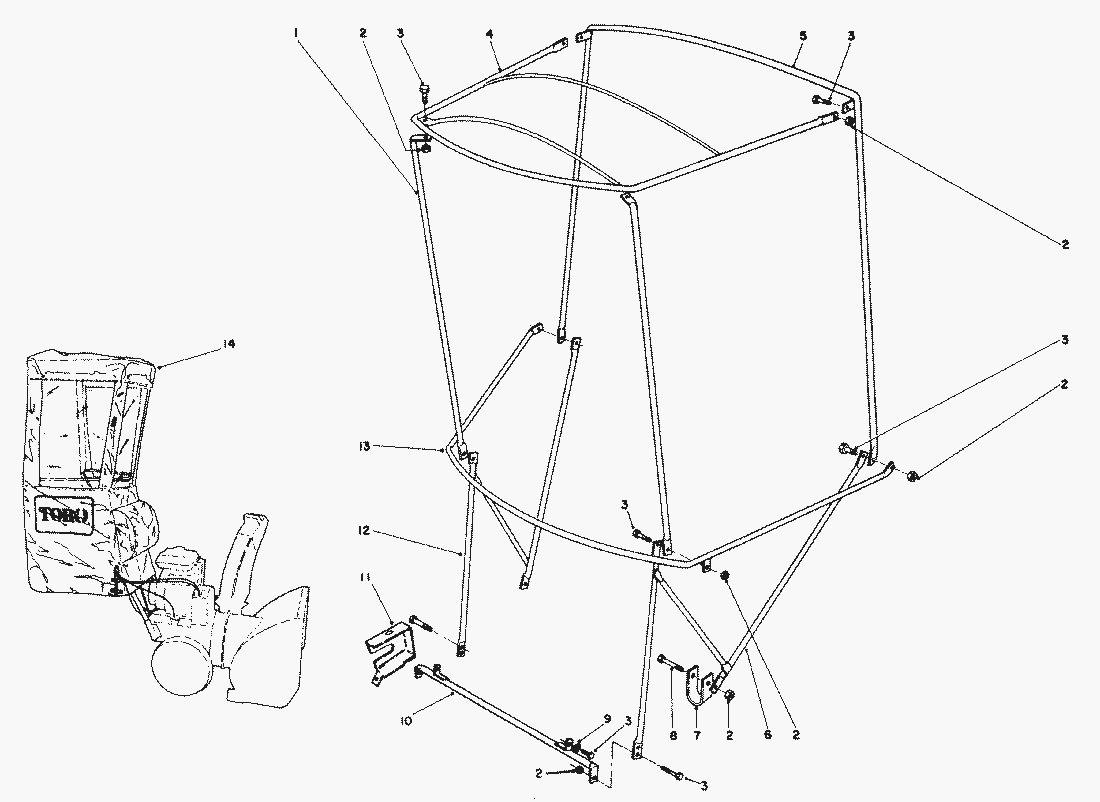

spare parts list


pos.decriptionspare part number
1Front Corner Post12-8040
2Locknut32153-4
3Capscrew321-4
4Top Frame12-8010
5Rear Vertical Bow12-8030
6Bracket-Attaching L.H.66-6230
7Clamp-U66-6240
8Capscrew321-11
9Washer-Fender3256-58
10Bracket-Base Attaching66-6210
11Cover-Lever63-3330
12Bracket-Attaching R.H.66-6220
13Horizontal Curved Bow12-8020
14
