> Roth / TORO > Hand operated > Snowthrower > Single stage > CCR Powerlite > 601/38175 > 5900001 > Starter Engine Assy. & Switch Housing

Spare Parts Lists for Toro Roth / TORO Starter Engine Assy. & Switch Housing

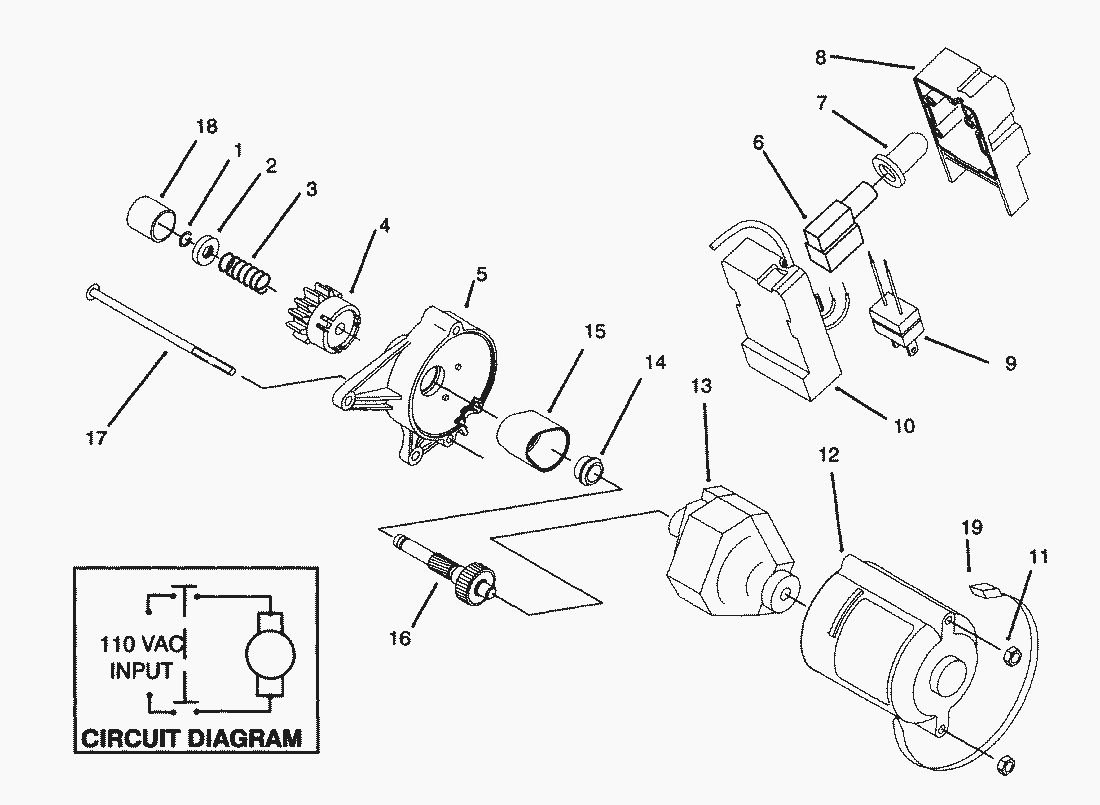

spare parts list


pos.decriptionspare part number
1Retaining Ring61-4680
2Pinion Stop61-4670
3Spring61-4690
4Pinion Assembly84-5240
5Housing-Upper Starter70-7810
6Switch36-8340
7Boot-Switch36-8350
8Cap-Switch Housing80-3740
9Plug36-8370
10Base-Switch Housing80-3730
11Nut3296-2
12Housing-Lower Starter70-7820
13Motor70-7802
14Bushing-upper70-7900
15Cover-Gear70-7850
16Shaft & Gear Assembly92-6003
17Screw-Phillips Pan Hd32144-101
18Cap-Pinion70-7890
19Strap-Motor (Model No. 38175 Only)250-7
Starter Motor Assembly77-0402
Cord-7 Ft.28-9170
