> Roth / TORO > Hand operated > Snowthrower > Two stage > 1132 > 610/38160 > 4000001 > Starter Engine Kit Model No. 37-4630 (Optional)

Spare Parts Lists for Toro Roth / TORO Starter Engine Kit Model No. 37-4630 (Optional)

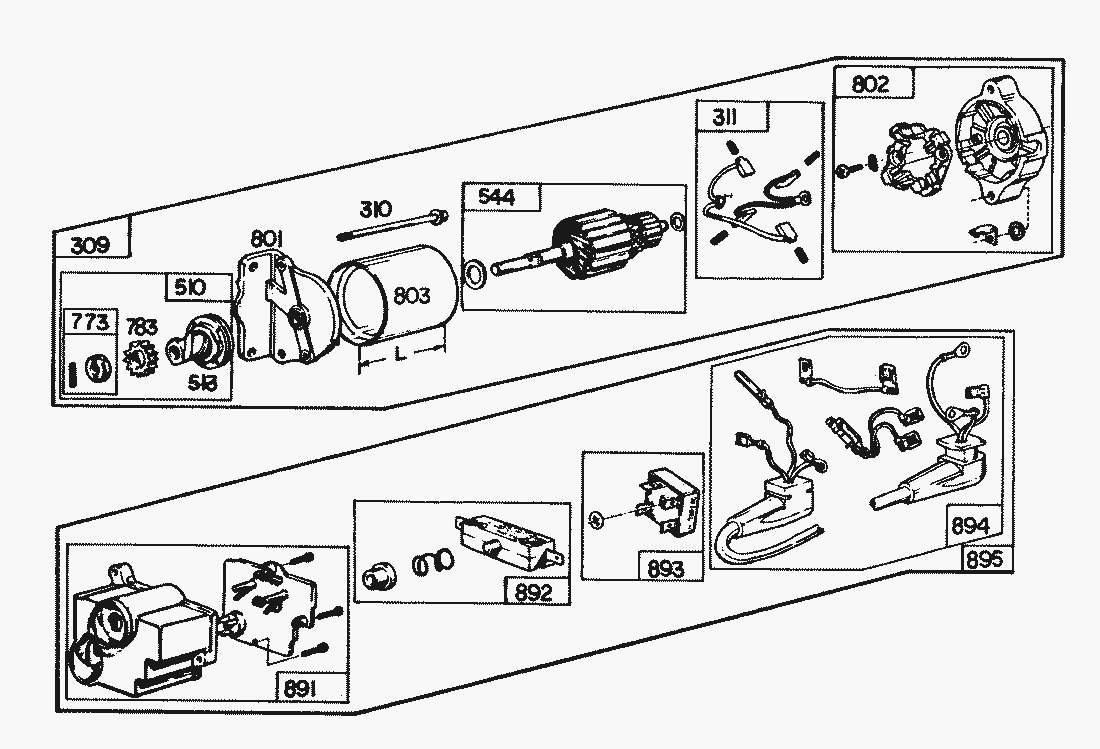

spare parts list


pos.decriptionspare part number
309Motor & Drive Assembly393851
310Thru Bolt Assembly93889
311Brush Assembly393612
510Drive Assembly (Incl. Ref.513, 773 & 783)391461
513Clutch Assembly391135
544Armature Assembly393607
773Retainer & Pin391462
783Gear280104
801Drive End Cap Assembly393228
802Comm. End Cap Assembly393833
803Housing Assembly393433
891Housing Group393705
892Switch Group393708
893Rectifier393707
894Lead Group393706
895Control Group393486
Bracket Switch38-0070
Locknut32146-18
Fillister Hd. Machine Screw3252-6
