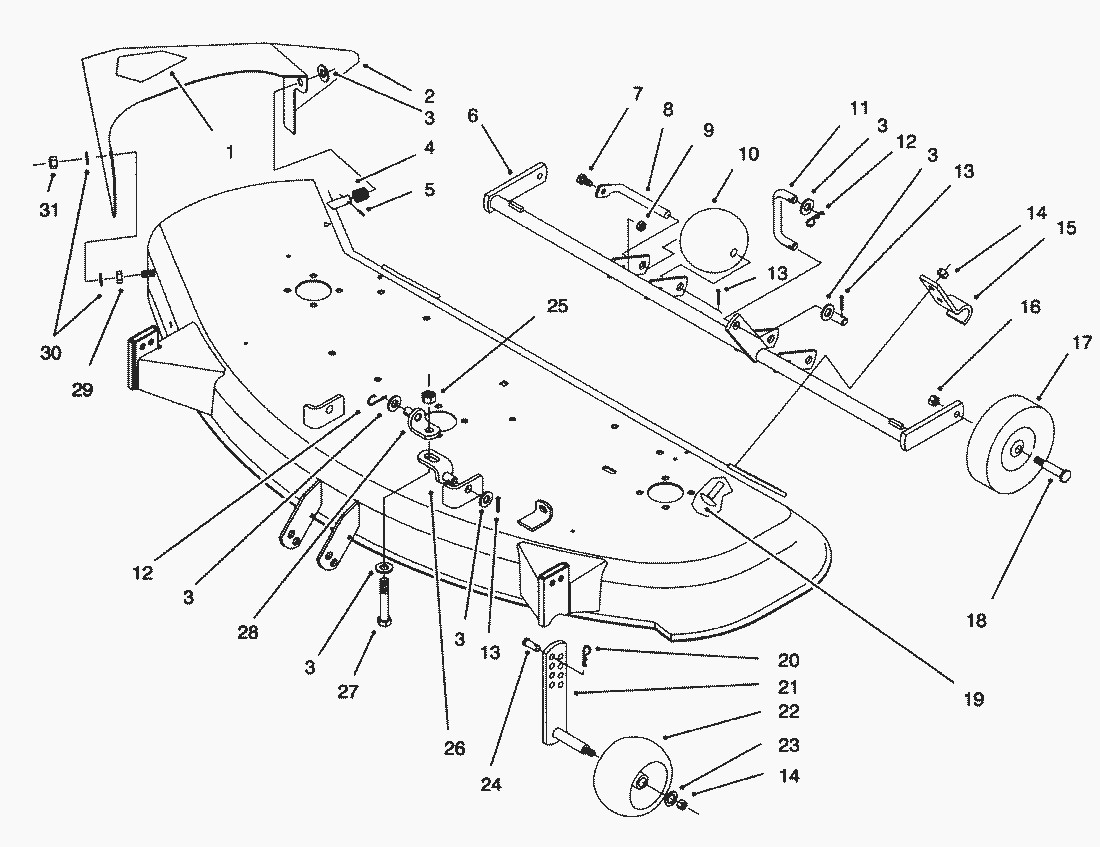

Spare Parts Lists for Toro Roth / TORO Suspension Assy.

pos.	decription	spare part number
1	Decal-Danger	93-7316
2	Chute & Decal Assembly (Incl. Ref.	94-1836
3	Washer	3256-26
4	Spring	93-1630
5	Pin-Cotter	3272-10
6	Support-Gage Wheel	79-4140-03
7	Capscrew	321-4
8	Shaft-Roller	118960
9	MUTTER	3296-42
10	Roller	29-4820
11	Link-Rear	79-5380
12	Pin-Cotter	9335064
13	Pin-Cotter	3272-21
14	Locknut	3296-39
15	Clamp	110837
16	Hex Locknut	32146-2
17	Wheel-Gage	110506
18	Bolt-Shoulder	5188
19	Carriage Bolt	3231-25
20	Cotter-Hairpin	933505
21	Plate-Gage Wheel	68-2350
22	Wheel-Gage	68-2730
23	Flat Washer	3256-24
24	Pin-Clevis	283-2
25	Hex. Jam Nut	3218-5
26	Bracket-Lower Lift	86-9240
27	Screw-Hex Hd. Cap	325-13
28	Bracket-Upper Lift	86-9250
29	Bushing-Pivot	116080
30	Washer-Nylon	93-1633
31	Nut-Jam	9152366
